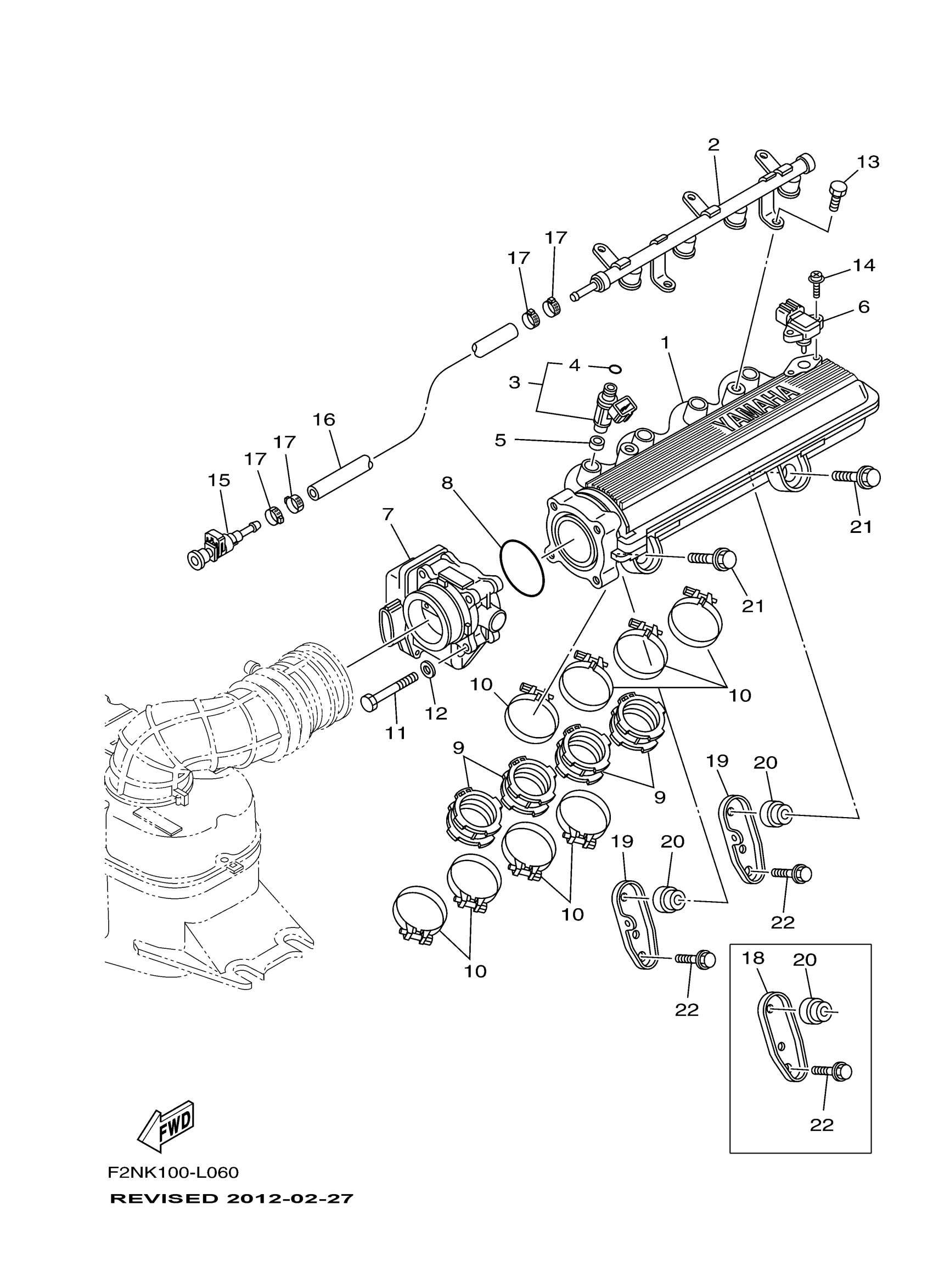

Yamaha VX1100BL (VX CRUISER_VX1100BL VX DELUXE) F2NN 2012 INTAKE 2 Diagram

#

Description
Price

1

MANIFOLD, INTAKE 1

6D3-13641-00-00

$639.38

2

DELIVERY PIPE

6BU-12880-00-00

$645.44

2

DELIVERY PIPE

6BU-12880-11-00

$574.23

3

. INJECTOR

60E-13761-10-00

$210.59

3

INJECTOR

60E-13761-20-00

$155.17

4

.. O-RING

60E-14147-00-00

$7.27

4

. O-RING

68V-1416A-00-00

$10.18

5

GASKET, MANIFOLD

8FP-13556-00-00

$11.48

5

. GASKET, MANIFOLD

8FP-13556-10-00

$5.55

6

. SENSOR ASSY

68F-83688-00-00

$269.99

6

SENSOR ASSY

68F-83688-10-00

$197.13

7

THROTTLE BODY ASSY

6BU-13750-02-00

Unavailable

7

THROTTLE BODY ASSY

6BU-13750-02-00

Unavailable

8

SEAL

6D3-14457-00-00

$56.05

9

JOINT, THROTTLE BODY 1

6D3-13795-01-00

$12.59

10

HOSE CLAMP ASSY

90450-57006-00

$11.85

10

HOSE CLAMP ASSY

90450-57006-00

$11.85

11

BOLT 1

68V-13573-00-00

$14.99

12

WASHER

6P2-13578-00-00

$6.57

13

. BOLT

63P-14446-00-00

$9.27

14

SCREW 3

6D3-81147-00-00

$4.55

15

FUEL PIPE JOINT

6S5-24300-01-00

$30.29

16

HOSE

6D3-14294-11-00

Unavailable

16

HOSE

6D3-14294-11-00

Unavailable

17

HOSE CLAMP ASSY

90450-17M17-00

$7.40

18

STAY

6D3-14413-00-00

$15.89

19

STAY 2

6D3-14414-10-00

$15.49

20

COLLAR

60E-14449-00-94

$15.00

21

BOLT, WITH WASHER

90119-08050-00

$4.44

22

BOLT, WITH WASHER

90119-08074-00

$4.09
