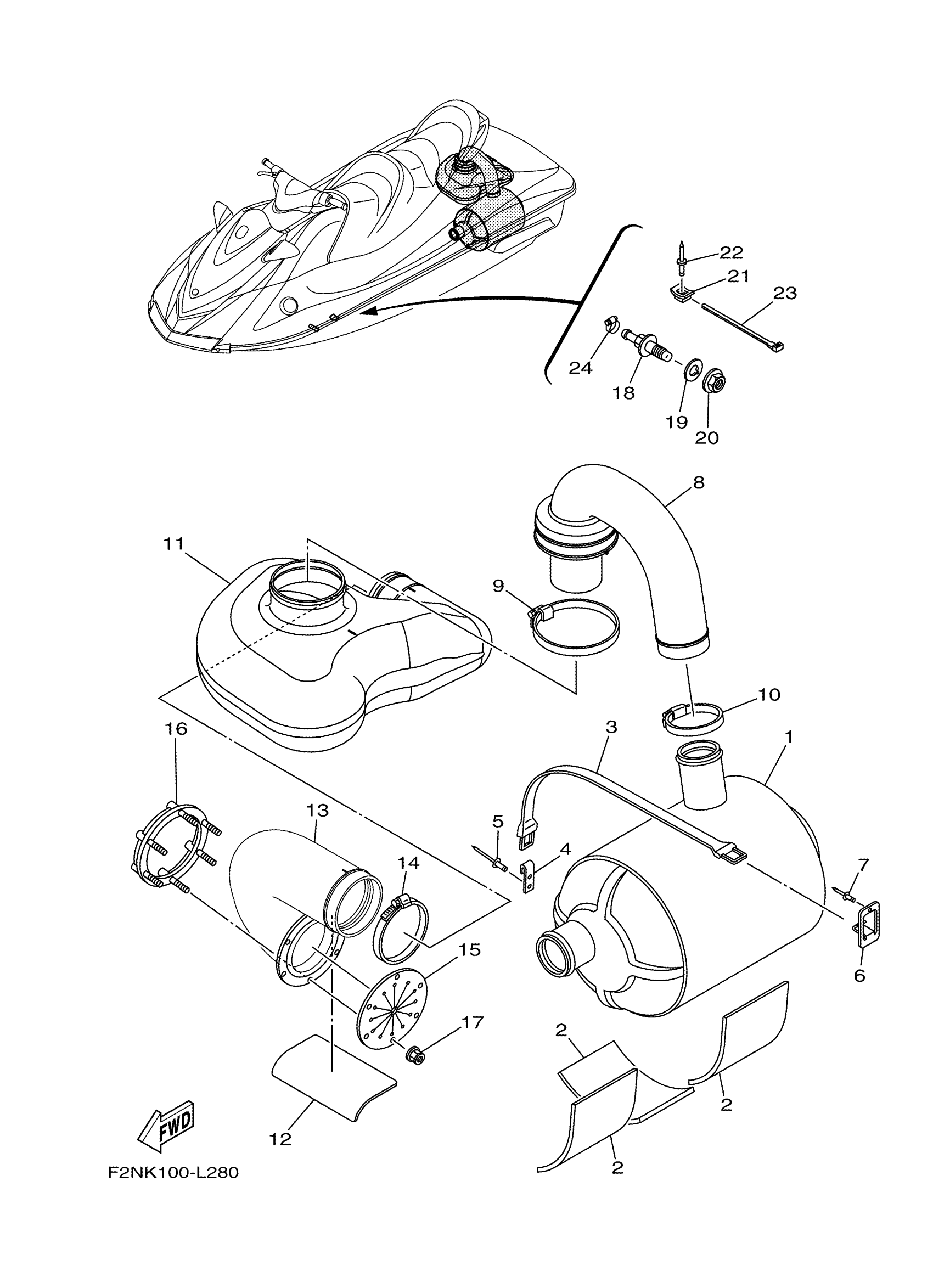

Yamaha VX1100BL (VX CRUISER_VX1100BL VX DELUXE) F2NN 2012 EXHAUST 4 Diagram

#

Description
Price

1

WATER LOCK COMP.

F1K-U7550-02-00

Unavailable

2

PAD, BATTERY

F1S-U8221-00-00

$2.88

3

BAND, FUEL TANK

EW2-67821-00-00

$29.25

4

HOOK A

GA7-65772-00-00

$8.94

5

RIVET (EU0)

90267-48938-00

$4.72

6

HOOK A

F1K-U5772-04-00

$6.19

7

RIVET (EU0)

90267-48938-00

$4.72

8

HOSE

F2N-U7555-01-00

$68.64

9

BAND, HOSE 79

90601-179U8-00

$5.53

10

HOSE CLAMP ASSY

90450-99804-00

$4.51

11

TANK, WATER

F2N-U4261-00-00

$86.55

12

PAD, BATTERY

F1S-U8221-00-00

$2.88

13

HOSE,EXHAUST 3

F2N-U758D-00-00

$188.04

14

HOSE CLAMP ASSY

90450-99801-00

$4.01

15

VALVE, EXHAUST

F1B-U751G-10-00

Unavailable

16

PLATE

F1S-U757B-01-00

$24.39

17

NUT, LOCK

F2N-U142L-00-00

$1.00

18

PILOT, WATER

F1K-6753B-00-00

$68.01

19

GASKET

F1B-67564-00-00

$3.03

20

NUT

F0X-62733-00-00

Unavailable

21

BASE, CLAMP

F1W-U828M-00-00

$1.29

22

RIVET, BLIND

90267-489U6-00

Unavailable

23

CLAMP

90464-32801-00

$1.29

24

CLIP

90467-17802-00

$3.02
