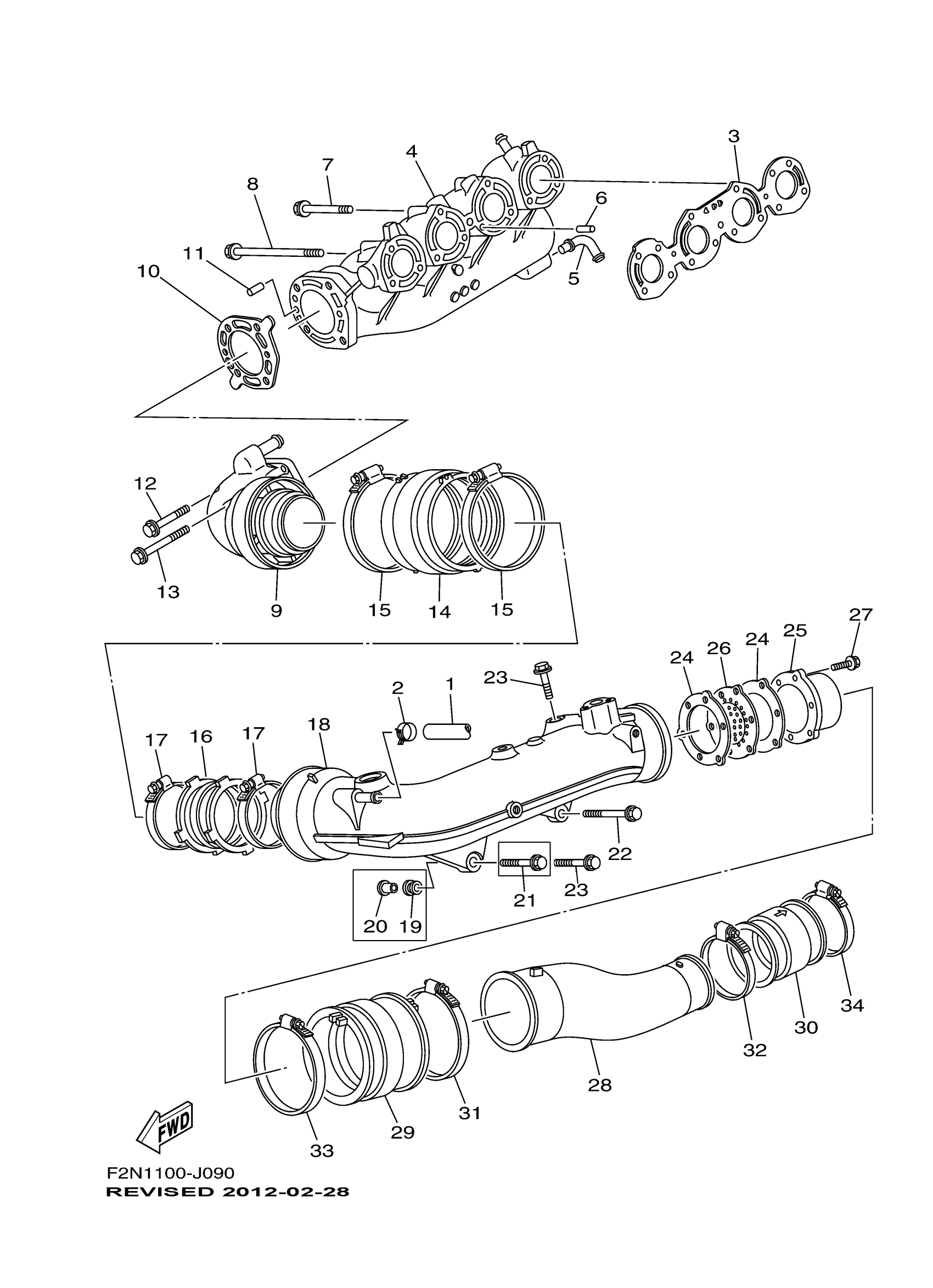

Yamaha VX1100BL (VX CRUISER_VX1100BL VX DELUXE) F2NN 2012 EXHAUST 1 Diagram

#

Description
Price

1

HOSE, 4

6BU-1244G-10-00

$19.10

1

HOSE (L870)

90445-16005-00

$26.46

2

CLIP

90467-160A0-00

$3.03

3

GASKET, EXHAUST PIPE

6D3-14613-00-00

$30.39

3

. GASKET, EXHAUST PIPE

6D3-14613-10-00

$25.07

4

MUFFLER 1

6D3-14711-00-94

$852.93

4

MUFFLER 1

6D3-14711-10-00

$920.57

5

NIPPLE, HOSE

60E-11372-10-00

$19.10

6

PIN, DOWEL

93608-16M16-00

$2.38

7

BOLT, WITH WASHER

90119-08036-00

$3.97

8

BOLT, WITH WASHER

90119-08075-00

$5.31

9

RING, JOINT

6D3-14712-00-94

$402.93

10

GASKET, MUFFLER DAMPER 1

6D3-14739-01-00

$41.46

10

. GASKET, MUFFLER DAMPER 1

6D3-14739-10-00

$35.28

11

PIN, DOWEL (614)

93606-12019-00

$3.50

12

BOLT, WITH WASHER

90119-08036-00

$3.97

13

BOLT, WITH WASHER

90119-08031-00

$4.85

14

JOINT, EXHAUST 1

6D3-14615-00-00

$73.51

15

HOSE CLAMP ASSY

90450-99005-00

$11.01

16

JOINT, EXHAUST 2

6D3-14625-00-00

$45.57

17

HOSE CLAMP ASSY

90450-90001-00

$36.75

18

MUFFLER 2

6D3-14721-00-94

$852.93

18

MUFFLER 2

6D3-14721-10-00

$836.75

19

GROMMET(62L)

90480-21M63-00

Unavailable

20

COLLAR

90387-11008-00

$19.10

21

BOLT, WITH WASHER

90119-10011-00

$5.74

22

BOLT, WITH WASHER

90119-10017-00

$6.18

23

BOLT, WITH WASHER

90119-10013-00

$4.93

24

. GASKET, EXHAUST PIPE

60E-14623-00-00

$4.55

25

PIPE, TAIL

60E-14784-00-94

$38.75

26

PLATE, SILENCER 6

6D3-1469W-10-00

$37.61

26

PLATE, SILENCER 6

6D3-1469W-10-00

$37.61

27

BOLT, WASHER BASED(4EB)

90105-06790-00

Unavailable

28

PIPE, OUTLET

6BU-14752-00-94

$164.69

29

PIPE 2

6BU-1475E-00-00

$33.81

29

PIPE 2

6BU-1475E-00-00

$33.81

30

PIPE 3

6BU-1475F-00-00

$29.40

30

PIPE 3

6BU-1475F-00-00

$29.40

31

HOSE CLAMP ASSY

90450-99004-00

$8.73

32

HOSE CLAMP ASSY

90450-94001-00

$13.96

33

HOSE CLAMP ASSY

90450-99004-00

$8.73

34

HOSE CLAMP ASSY

90450-94001-00

$13.96
