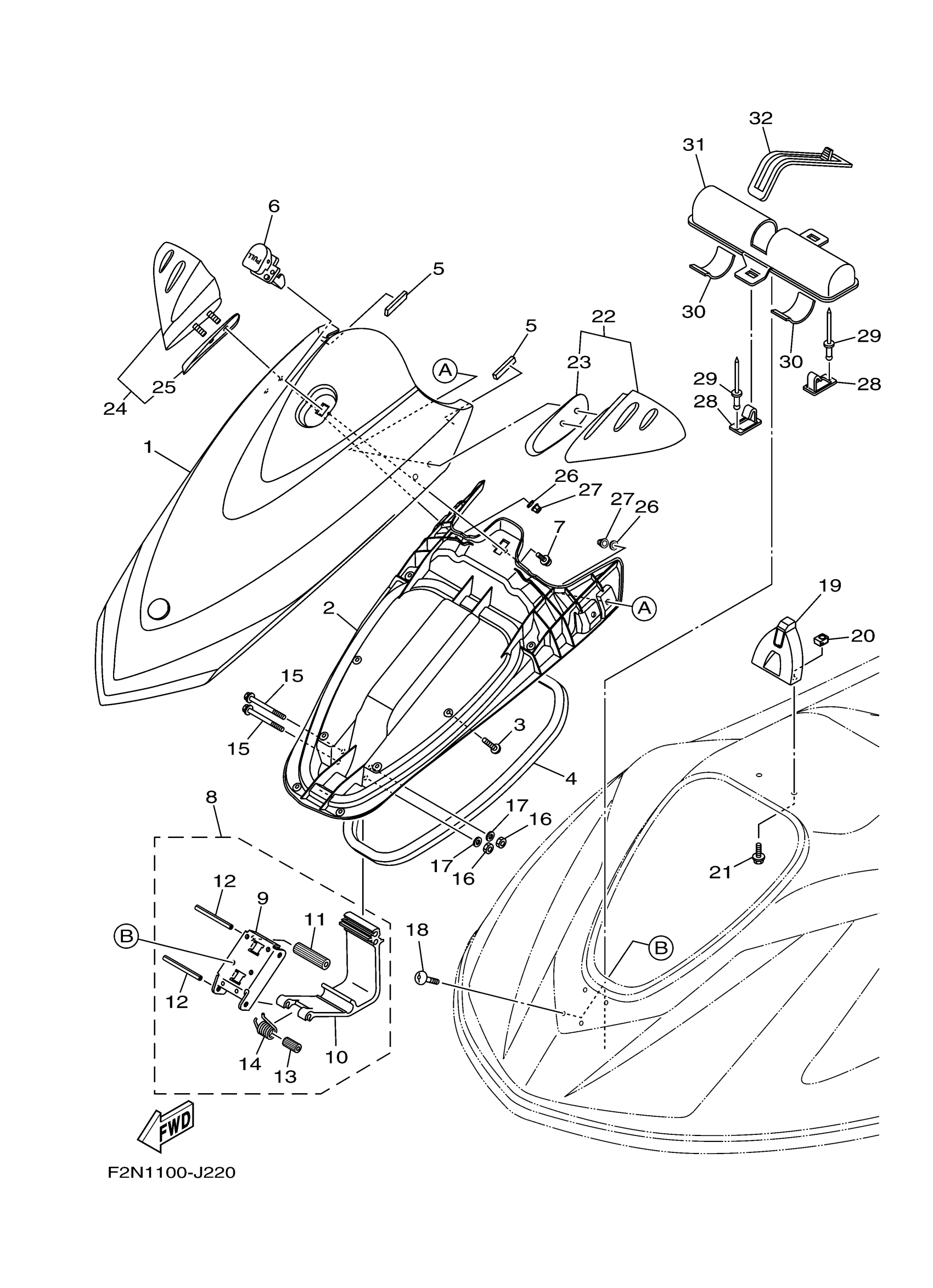

Yamaha VX1100BL (VX CRUISER_VX1100BL VX DELUXE) F2NN 2012 ENGINE HATCH 2 Diagram

#

Description
Price

1

LID,ENGINE HATCH

F2N-U517B-10-P1

Unavailable

1

LID, ENGINE ROOM (DPBM11)

F2N-U517B-10-P4

Unavailable

1

LID, ENGINE ROOM (LNMP)

F2N-U517B-10-P8

Unavailable

1

LID, ENGINE ROOM (DRMR)

F2N-U517B-10-P9

Unavailable

2

COVER, VENTILATOR 1

F2N-U213B-01-00

Unavailable

3

SCREW(GH1)

90149-05903-00

$3.28

4

PACKING 1

F2N-U2663-01-00

Unavailable

5

. PACKING 3

F1K-U266B-00-00

Unavailable

6

LOCK, LID

F1K-6517C-00-00

Unavailable

7

BOLT, WITH WASHER (EW3)

90119-05912-00

Unavailable

8

HINGE ASSY.

F1K-U515A-00-00

Unavailable

9

. PLATE, HINGE LID

F1K-U518E-04-00

Unavailable

10

. HINGE, LID

F1K-U517D-05-00

Unavailable

11

. ROLLER, DETENT

F1K-U135C-01-00

Unavailable

12

PIN, HINGE

F1K-U517R-01-00

Unavailable

13

. SPACER 1

F1K-U471E-03-00

Unavailable

14

. SPRING, TORSION

F1K-U283B-02-00

Unavailable

15

BOLT, FLANGE

90105-06826-00

Unavailable

16

NUT, NYLON

9572R-06300-00

Unavailable

17

WASHER

9299R-06200-00

Unavailable

18

SCREW

F2N-67823-10-00

Unavailable

19

HOOK,LID LOCK

F2N-U517F-00-00

Unavailable

20

NUT

F1X-U517E-01-00

Unavailable

21

BOLT, WITH WASHER

90119-06880-00

Unavailable

22

MIRROR LH

F2N-U596B-00-00

Unavailable

23

. SPACER 1

F2N-U471E-00-00

Unavailable

24

MIRROR RH

F2N-U596C-00-00

Unavailable

25

. SPACER 2

F2N-U471F-00-00

Unavailable

26

WASHER

9299R-08200-00

Unavailable

27

NUT, NYLON (6J8)

95780-08300-00

Unavailable

28

HOOK A

F1K-U5772-04-00

Unavailable

29

RIVET (EU0)

90267-48938-00

Unavailable

30

MAT 2

F1K-U759C-00-00

Unavailable

31

BOX, FIRE EXTINGUISHER

F1K-U5983-01-00

Unavailable

32

BAND 1

F2P-U828K-00-00

Unavailable
