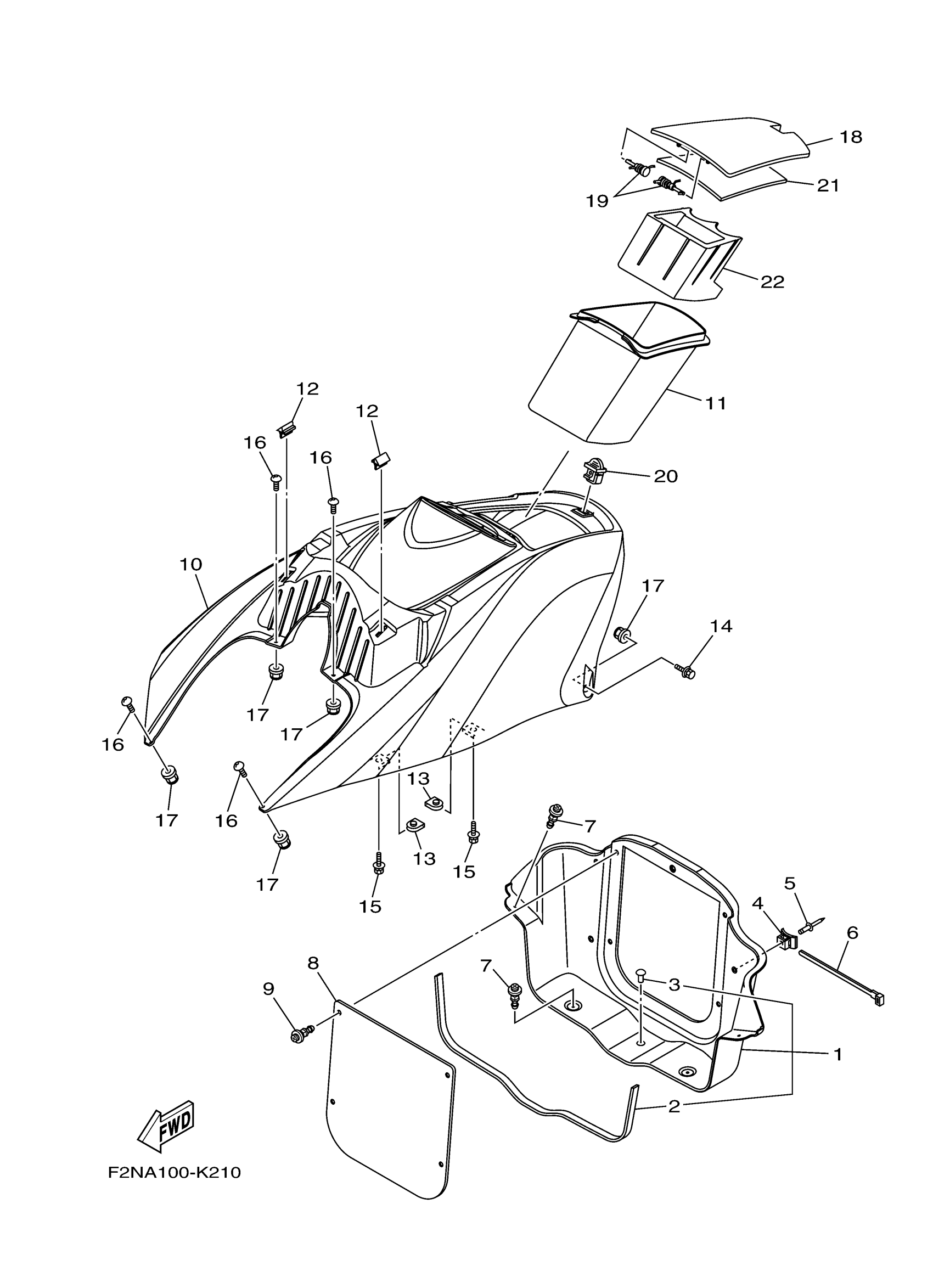

Yamaha VX1100BL (VX CRUISER_VX1100BL VX DELUXE) F2NN 2012 ENGINE HATCH 1 Diagram

#

Description
Price

1

LOCKER,BOW

F2N-U475B-03-00

$39.38

2

PACKING 4

F2C-U266C-00-00

$7.35

3

. PLUG, BLIND

90605-502U1-00

$2.16

4

BASE, CLAMP

F1W-U828M-00-00

$1.23

5

RIVET, BLIND

90267-48803-00

$2.35

6

CLAMP

90464-32801-00

$1.23

7

RIVET

90269-08801-00

$0.83

8

PLATE, LOKER BOW

F1W-U475F-01-00

$12.91

9

RIVET

90269-08801-00

$0.83

10

COVER, ENGINE HATCH

F2N-U516N-00-P2

Unavailable

10

COVER, ENGINE HATCH (LNMP) (LIGHT GRAY METALLIC 3)

F2N-U516N-00-P4

$251.50

10

COVER, ENGINE HATCH (DPBM11)

F2N-U516N-00-P7

Unavailable

10

COVER, ENGINE HATCH (DRMR)

F2N-U516N-00-PA

$272.71

11

BOX GLOVE

F2N-U516P-00-00

$96.95

12

PACKING 4

F1K-U266C-10-00

$2.27

13

NUT, SPRING(GJ3)

90183-06902-00

Unavailable

14

BOLT, WITH WASHER

90119-06880-00

$3.52

15

BOLT, WITH WASHER

90119-06878-00

$3.43

16

SCREW

F2N-67823-10-00

$2.02

17

NUT, LOCK

F2N-U142L-00-00

$1.00

18

LID HATCH

F2N-U517H-01-00

$47.39

19

PIN, HINGE

F0X-6517R-01-00

$7.77

20

LOCK

GU2-62875-02-00

$36.31

21

PACKING CASE

F2N-U519D-00-00

Unavailable

22

HOLDER, DRINK

F2N-U5633-00-00

$10.75
