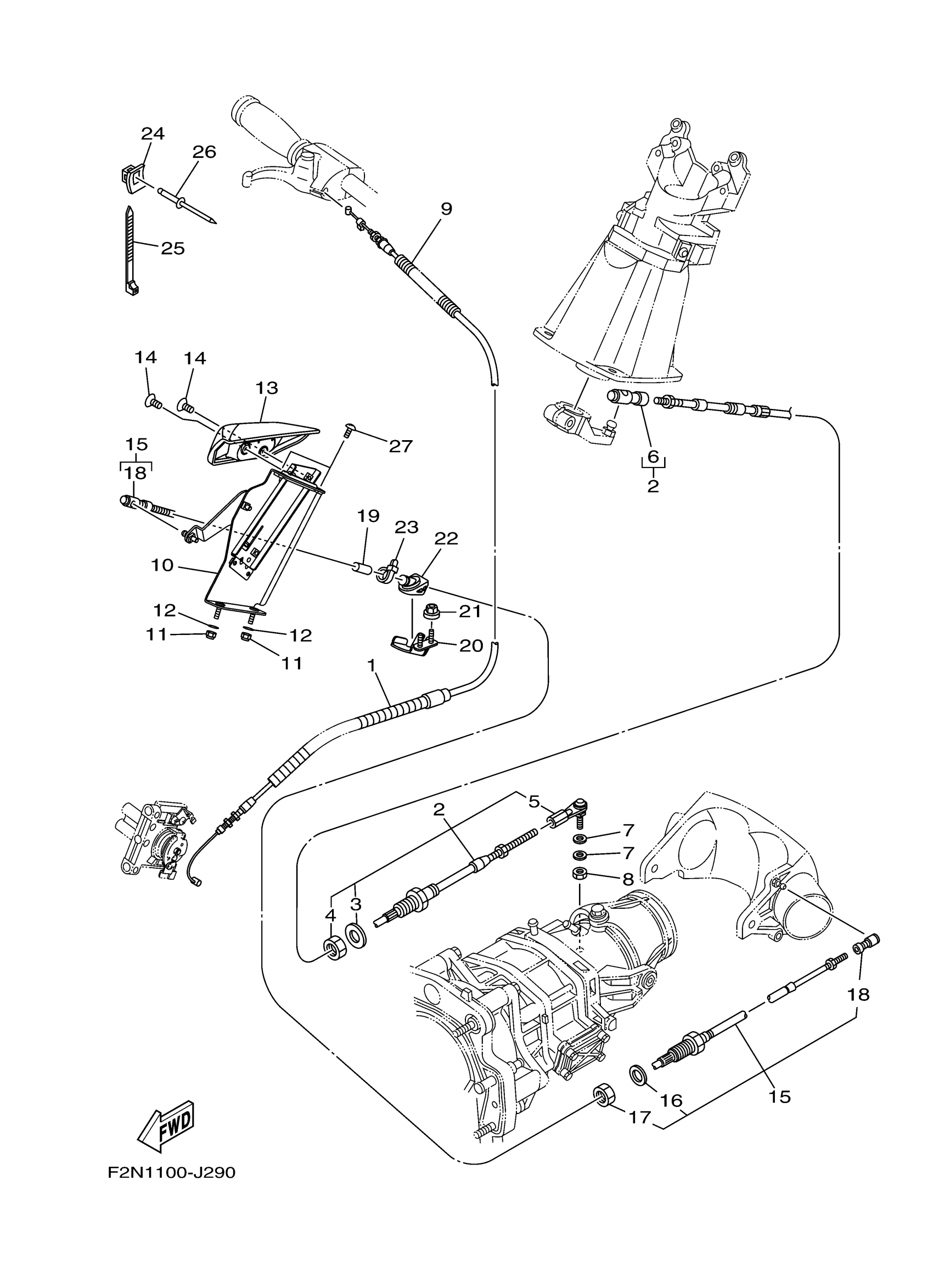

Yamaha VX1100BL (VX CRUISER_VX1100BL VX DELUXE) F2NN 2012 CONTROL CABLE Diagram

#

Description

Price

1

CABLE, THROTTLE 1

6BU-26311-00-00

Unavailable

2

CABLE, STEERING

F2N-61481-02-00

Unavailable

3

. PACKING C

F1B-61438-00-00

Unavailable

4

NUT

F1B-6151S-01-00

Unavailable

5

. STUD, JOINT BALL

F1B-61461-02-00

Unavailable

6

. BALL JOINT ASSY

F2N-61460-00-00

Unavailable

7

WASHER, PLATE

90201-06906-00

Unavailable

8

NUT

9538R-06700-00

Unavailable

9

TUBE

90447-06803-00

Unavailable

10

REMOCON. LEVER ASSY.

F2N-U134A-00-00

Unavailable

11

NUT, NYLON

9572R-06300-00

Unavailable

12

WASHER

9299R-06200-00

Unavailable

13

GRIP

F2N-U2714-01-00

Unavailable

14

SCREW, COUNTERSUNK

90151-06815-00

Unavailable

15

CABLE,REVERSE

F2N-6149C-01-00

Unavailable

16

. PACKING C

F1B-61438-00-00

Unavailable

17

NUT

F1B-6151S-01-00

Unavailable

18

. BALL JOINT ASSY

F1B-61460-00-00

Unavailable

19

PACKING, CABLE

F1W-U146G-00-00

Unavailable

20

BRACKET,STOPPER CABLE

F2N-U1467-00-00

Unavailable

21

NUT, LOCK

F2N-U142L-00-00

Unavailable

22

PACKING, CABLE

F2N-U146G-00-00

Unavailable

23

CLAMP

90465-10098-00

Unavailable

24

BASE, CLAMP

F1W-U828M-00-00

Unavailable

25

CLAMP

90464-32801-00

Unavailable

26

RIVET, BLIND

90267-489U6-00

Unavailable

27

SCREW

F2N-67823-10-00

Unavailable
