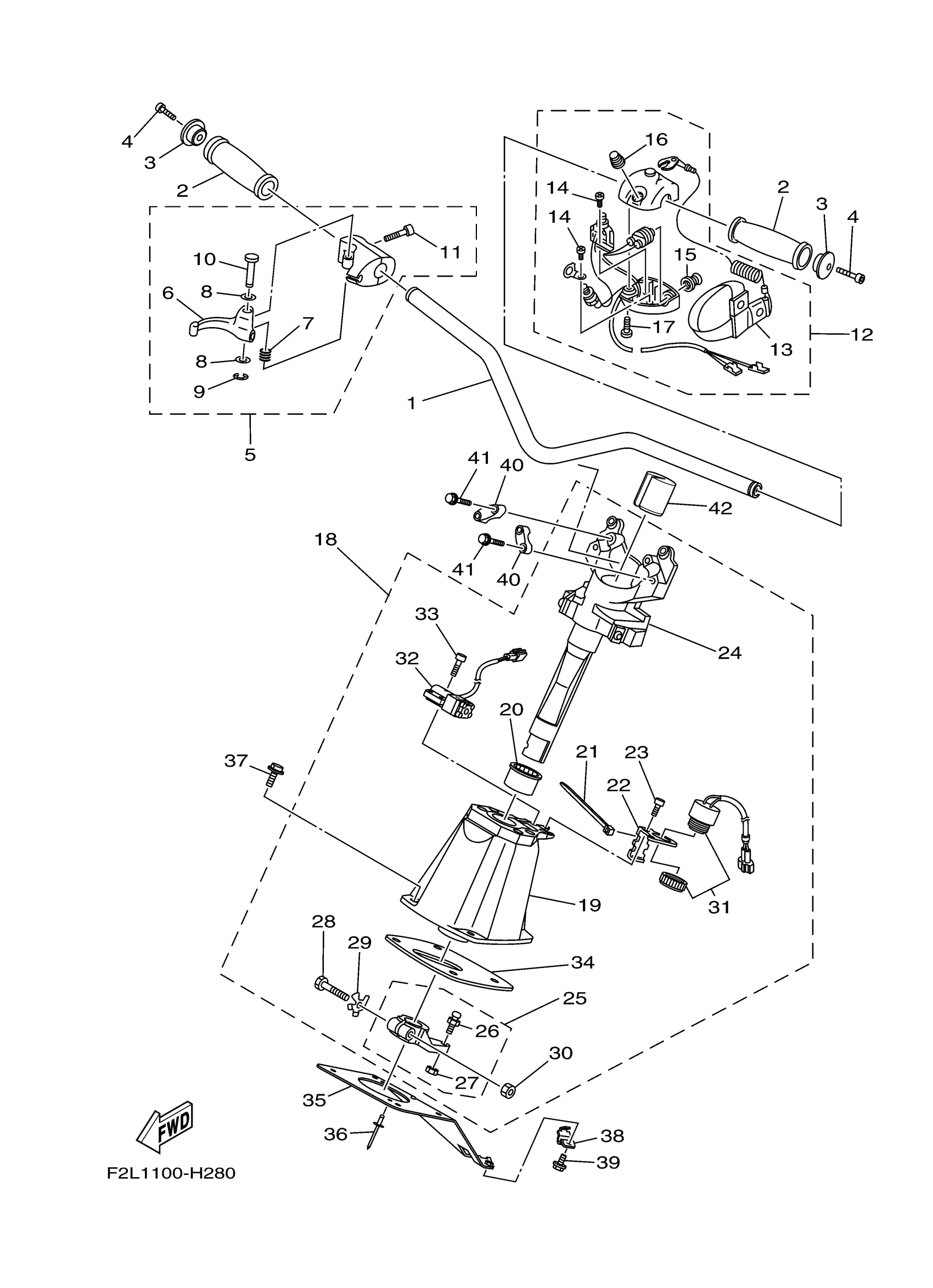

Yamaha VX1100BK (VX CRUISER_VX1100BK VX DELUXE) F2ND 2011 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F2N-U1552-00-00

$257.56

2

GRIP, HANDLE

GP7-U155D-01-00

$38.75

3

GRIP, END

GP7-U155F-00-00

$2.88

4

BOLT, HEXAGON SOCKET HEAD

90110-05908-00

$1.83

5

THROTTLE LEVER ASSY

F0D-67250-10-00

$106.05

6

LEVER, THROTTLE

F0D-67255-02-00

$27.26

7

. SPRING

EW2-67256-00-00

$6.36

8

WASHER, PLAIN (646)

92990-05600-00

Unavailable

9

CIRCLIP (EU0)

99080-04600-00

$1.70

10

. SHAFT

F0D-67257-00-00

$16.99

11

. BOLT, THROTTLE

F1X-6725F-01-00

$3.64

12

SWITCH BOX ASSY

FK7-68310-07-00

$159.77

13

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

14

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

15

. STOP BUTTON COMP

FK7-68312-02-00

$12.82

16

. START BUTTON COMP

FK7-68313-02-00

$11.31

17

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

18

STEERING MASTER AS

F2X-61400-14-00

Unavailable

19

. HOUSING ASSY

F1K-6152M-00-00

$403.02

20

. BUSH

F1K-6134M-00-00

$6.82

21

BAND

1UA-82591-00-00

Unavailable

22

. SPACER, BRKT

F1K-6146H-10-00

$24.98

23

SCREW

F1B-613C1-10-00

Unavailable

24

. SHAFT ASSY

F1K-67410-00-00

$478.77

25

ARM ASSY.

F1K-6153R-01-00

$136.35

26

STUD, JOINT BALL

EU0-61461-02-00

$14.38

27

NUT, SELF-LOCKING

95720-06300-00

$1.82

28

.. BOLT

F1K-61355-00-00

$17.41

29

. PLATE, RETAINING

F1K-6142B-00-00

$5.91

30

. NUT, SELF-LOCKING

95720-08300-00

$3.33

31

BUZZER

F1S-68341-00-00

$113.62

32

. SENSOR ASSY

F1W-68303-00-00

$603.02

33

BOLT

F1W-61516-10-00

Unavailable

34

. SEAL, RUBBER

F1K-6143C-00-00

$42.41

35

BRACKET,STOPPER CABLE

F1K-U1467-01-00

$54.53

36

RIVET, BLIND

90267-489U2-00

$1.43

37

BOLT,WITH WASHER

90119-08870-00

$12.90

38

STOPPER, CABLE

F1K-U1468-03-00

Unavailable

39

BOLT, WITH WASHER

90119-06830-00

Unavailable

40

HOLDER, HANDLE UPPER

EU0-23814-32-00

$20.34

41

BOLT, WITH WASHER

90119-08844-00

$1.29

42

PLUG

F1K-U1949-00-00

$6.21
