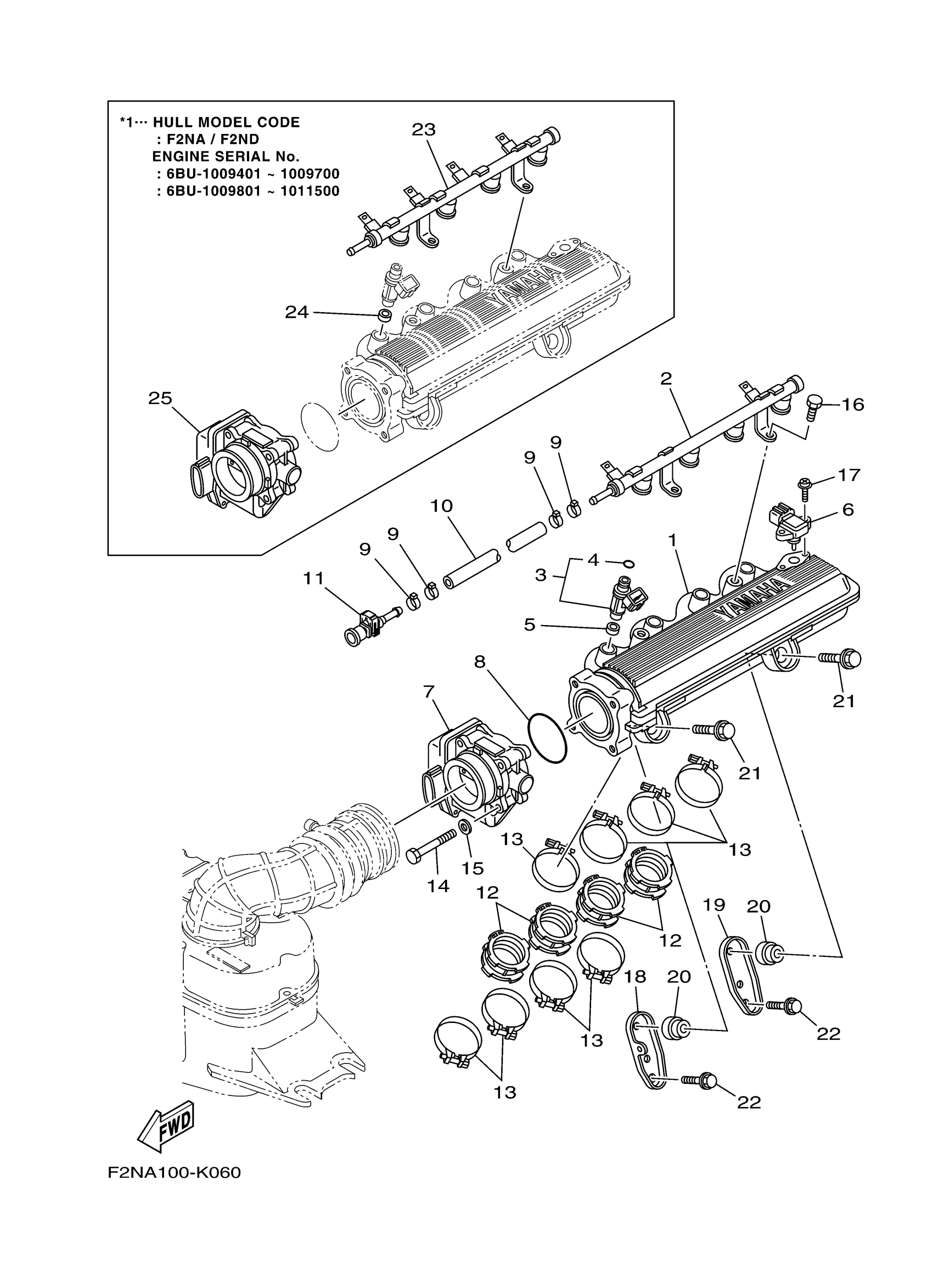

Yamaha VX1100BK (VX CRUISER_VX1100BK VX DELUXE) F2ND 2011 INTAKE 2 Diagram

#

Description
Price

1

MANIFOLD, INTAKE 1

6D3-13641-00-00

$639.38

2

DELIVERY PIPE

6BU-12880-00-00

$645.44

3

. INJECTOR

60E-13761-10-00

$210.59

4

.. O-RING

60E-14147-00-00

$7.27

5

GASKET, MANIFOLD

8FP-13556-00-00

$11.48

6

. SENSOR ASSY

68F-83688-00-00

$269.99

7

THROTTLE BODY ASSY

6BU-13750-02-00

Unavailable

8

SEAL

6D3-14457-00-00

$56.05

9

HOSE CLAMP ASSY

90450-17M17-00

$7.40

10

HOSE

6D3-14294-11-00

Unavailable

11

FUEL PIPE JOINT

6S5-24300-01-00

$30.29

12

JOINT, THROTTLE BODY 1

6D3-13795-01-00

$12.59

13

HOSE CLAMP ASSY

90450-57006-00

$11.85

14

BOLT 1

68V-13573-00-00

$14.99

15

WASHER

6P2-13578-00-00

$6.57

16

. BOLT

63P-14446-00-00

$9.27

17

SCREW 3

6D3-81147-00-00

$4.55

18

STAY

6D3-14413-00-00

$15.89

19

STAY 2

6D3-14414-10-00

$15.49

20

COLLAR

60E-14449-00-94

$15.00

21

BOLT, WITH WASHER

90119-08050-00

$4.44

22

BOLT, WITH WASHER

90119-08074-00

$4.09

23

DELIVERY PIPE

6D3-12880-00-00

$619.68

24

GASKET

90430-09002-00

Unavailable

25

THROTTLE BODY ASSY

6D3-13750-00-00

Unavailable
