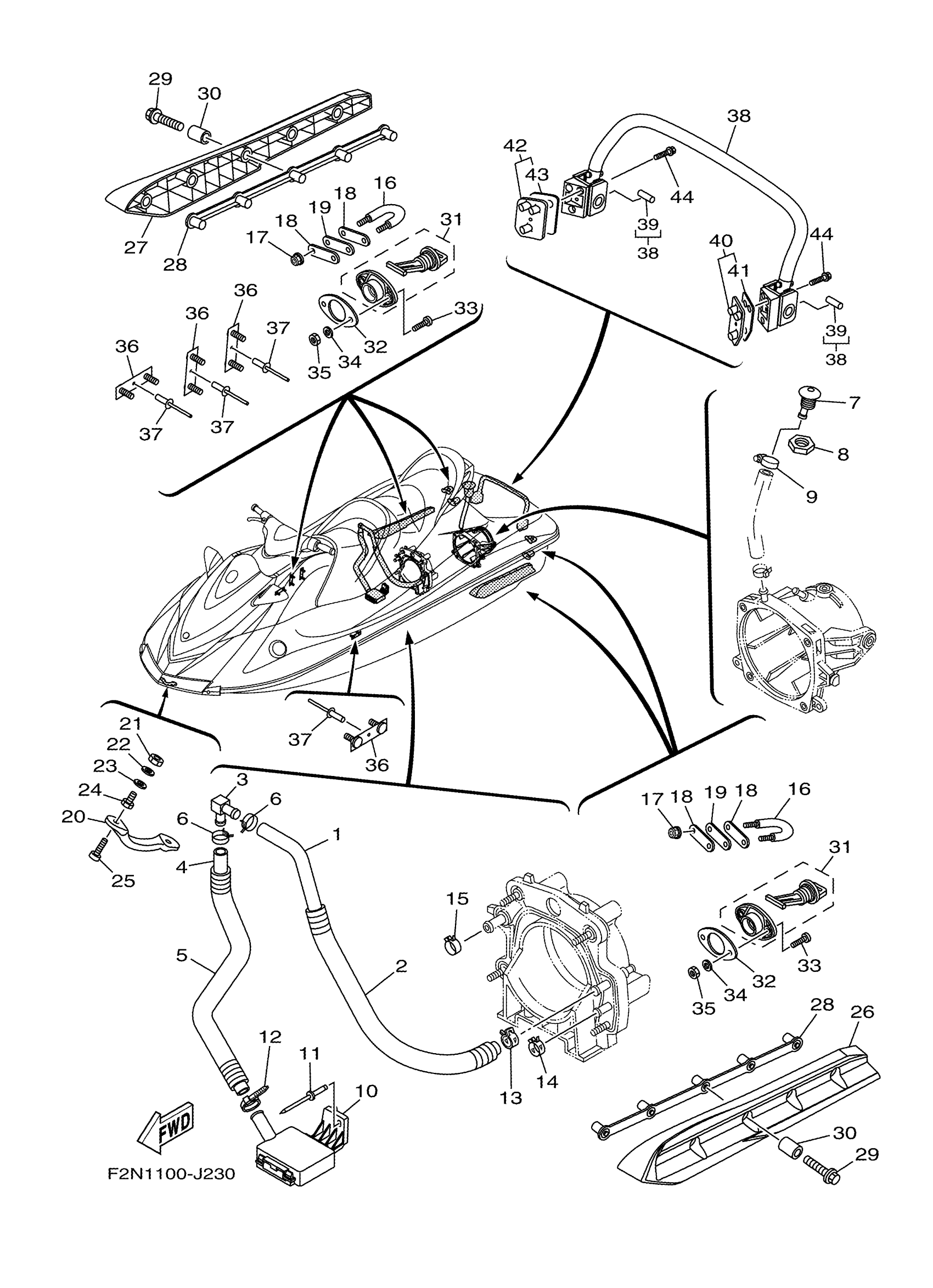

Yamaha VX1100BK (VX CRUISER_VX1100BK VX DELUXE) F2ND 2011 HULL & DECK Diagram

#

Description
Price

1

HOSE (L860)

90445-20804-00

$12.49

2

HOSE

90446-27M73-00

$18.28

3

JOINT, HOSE

61X-51162-00-00

$18.37

4

HOSE (L500)

90445-20800-00

$12.49

5

HOSE(63M)

90446-27M55-00

$13.94

6

CLIP

90467-18804-00

$2.87

7

SPOUT

F1W-U269B-00-00

$1.87

8

NUT

EU0-61652-00-00

$11.77

9

BAND, HOSE 18

90601-118UF-00

$2.22

10

STRAINER, BILGE

F1B-U761D-02-00

$5.35

11

RIVET, BLIND

90267-489U8-00

$1.37

12

CLAMP

90465-10098-00

$2.24

13

CLIP

90467-21800-00

$3.02

14

CLIP

90467-200A0-00

$7.59

15

CLIP

90467-210A0-00

$4.55

16

STERN EYE

F2N-U1628-00-00

Unavailable

17

NUT, NYLON (6J8)

95780-08300-00

$10.09

18

PLATE A

GP7-U4953-10-00

$3.65

19

PACKING

F1B-U1653-03-00

Unavailable

20

BOW EYE 1

F1K-61624-00-00

$43.69

21

NUT.HEX.(COARS)

99780-12600-00

$3.09

22

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

23

WASHER

F0X-61637-00-00

$1.32

24

NUT

F0X-61652-01-00

Unavailable

25

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

$3.09

26

STABILIZER LH

F2N-U883N-00-00

$110.28

27

STABILIZER RH

F2N-U883P-00-00

$108.81

28

BRACKET,STABILIZER

F1X-U883T-02-00

$42.63

29

BOLT,WASHER BASED

90105-088F9-00

Unavailable

30

SPACER

F2N-U8169-10-00

Unavailable

31

DRAIN PLUG ASSY

F1S-U2280-02-00

$13.22

32

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

33

SCREW, PAN HEAD

9788R-05025-00

$2.66

34

WASHER

9299R-05200-00

$4.60

35

NUT, FLANGE

9572R-05300-00

$1.51

36

BRACKET

F1K-U826C-03-00

$12.49

37

RIVET (EU0)

90267-48938-00

$4.85

38

LADDER, STEP ASSY

F2N-U278A-01-00

$248.51

39

. SLEEVE 1

F1W-U771H-00-00

$24.39

40

BRACKET, LADDER LH

F2L-U278F-01-00

$32.34

41

. PACKING, BRKT 1

F2L-U278H-00-00

$6.10

42

BRACKET, LADDER RH

F2L-U278G-01-00

$32.34

43

. PACKING, BRKT 1

F2L-U278H-00-00

$6.10

44

BOLT, WITH WASHER

90119-08844-00

$1.37
