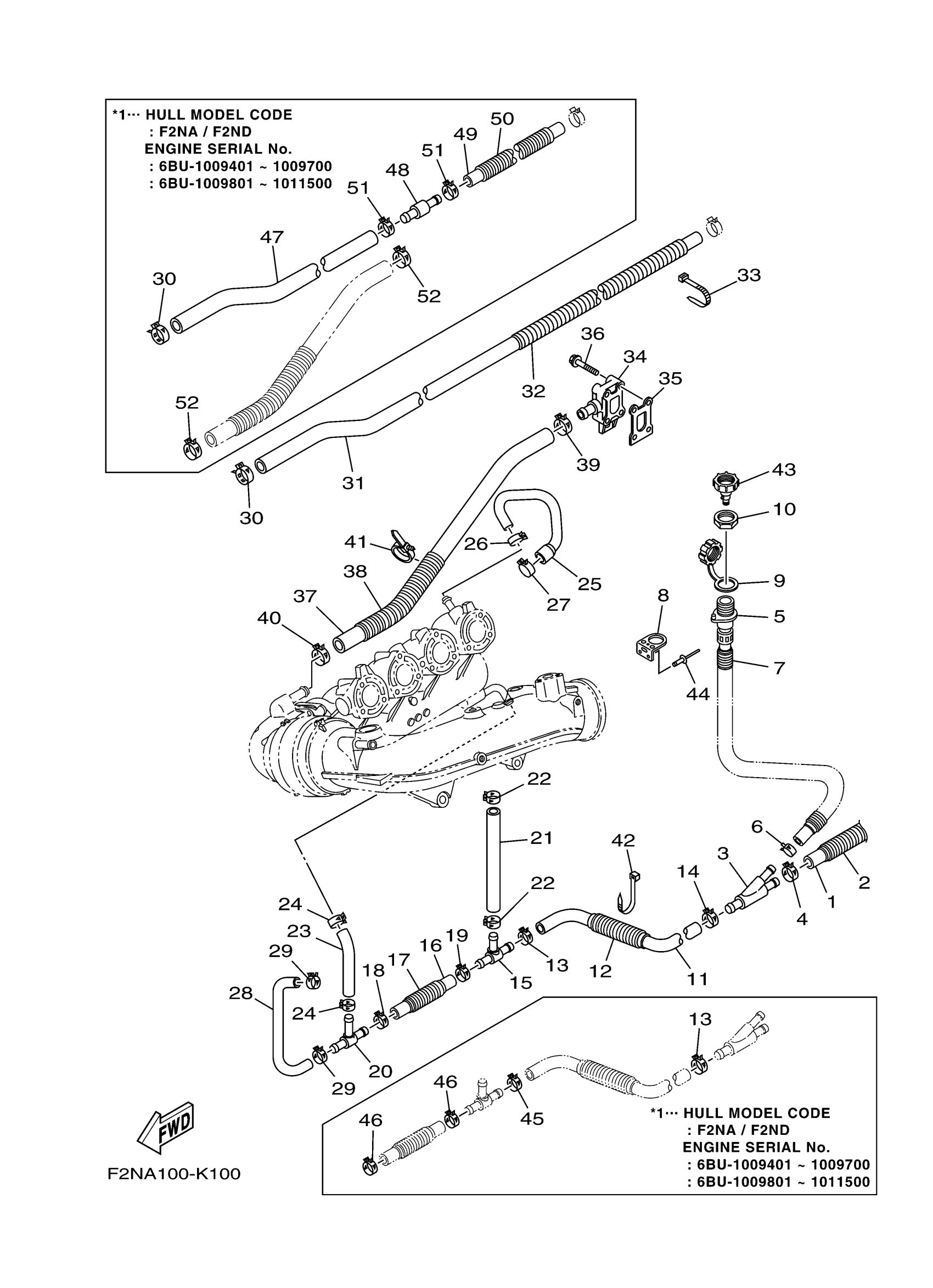

Yamaha VX1100BK (VX CRUISER_VX1100BK VX DELUXE) F2ND 2011 EXHAUST 2 Diagram

#

Description
Price

1

HOSE (L300)

90445-21805-00

Unavailable

2

HOSE, WITH SPRING (L200)

90447-22004-00

$5.22

3

JOINT, HOSE 1

60E-12581-00-00

$11.77

4

CLIP

90467-200A0-00

$7.59

5

JOINT ASSY

63M-12580-00-00

$76.37

6

CLIP

90467-150A0-00

$3.41

7

TUBE (L485)

90447-19801-00

$3.51

8

STAY

60E-12443-00-00

$3.03

9

CAP,1

682-84385-01-00

$7.21

10

NUT

EU0-61652-00-00

$11.77

11

HOSE 1

6BU-1243A-00-00

Unavailable

12

HOSE, WITH SPRING (L300)

90447-22003-00

$4.48

13

CLIP

90467-200A0-00

$7.59

14

CLIP

90467-200A3-00

$6.07

15

JOINT, HOSE 3

60E-12584-00-00

$6.27

16

HOSE 6

6S5-12589-01-00

Unavailable

17

HOSE, WITH SPRING (L100)

90447-22001-00

$6.49

18

CLIP

90467-200A0-00

$7.59

19

CLIP

90467-200A3-00

$6.07

20

JOINT, HOSE 3

6D3-12584-00-00

$6.72

21

HOSE 5

6D3-1244H-10-00

$15.66

22

CLIP

90467-160A0-00

$3.03

23

HOSE (L108)

90445-18M03-00

Unavailable

24

CLIP

90467-160A0-00

$3.03

25

HOSE 2

6D3-12577-10-00

Unavailable

26

CLIP

90467-170A0-00

$2.80

27

CLIP

90467-200A0-00

$7.59

28

HOSE, 4

6D3-1244G-10-00

$36.99

29

CLIP

90467-160A0-00

$3.03

30

CLIP

90467-210A0-00

$4.55

31

HOSE (L1165)

90445-22007-00

Unavailable

32

TUBE

F2T-U773D-10-00

$5.60

33

CLAMP(3XW)

90464-35132-00

Unavailable

34

JOINT

6D3-12446-00-00

$38.79

35

GASKET

60E-12435-00-00

$3.03

36

BOLT, FLANGE

90105-06035-00

$2.16

37

HOSE (L530)

90445-21004-00

$25.36

38

HOSE, WITH SPRING (L200)

90447-22005-00

$8.19

39

CLIP

90467-200A0-00

$7.59

40

CLIP

90467-200A3-00

$6.07

41

CLAMP

90464-20005-00

$2.16

42

CLAMP(3XW)

90464-35132-00

Unavailable

43

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.85

44

RIVET (EU0)

90267-48938-00

$4.72

45

CLIP

90467-200A0-00

$7.59

46

CLIP

90467-200A0-00

$7.59

47

HOSE (L340)

90445-22005-00

$47.75

48

JOINT, HOSE 4

6BU-12594-00-00

$4.48

49

HOSE (L800)

90445-22006-00

$73.12

50

TUBE (L650)

90447-25003-00

$19.39

51

CLIP

90467-210A0-00

$4.55

52

CLIP

90467-200A0-00

$7.59
