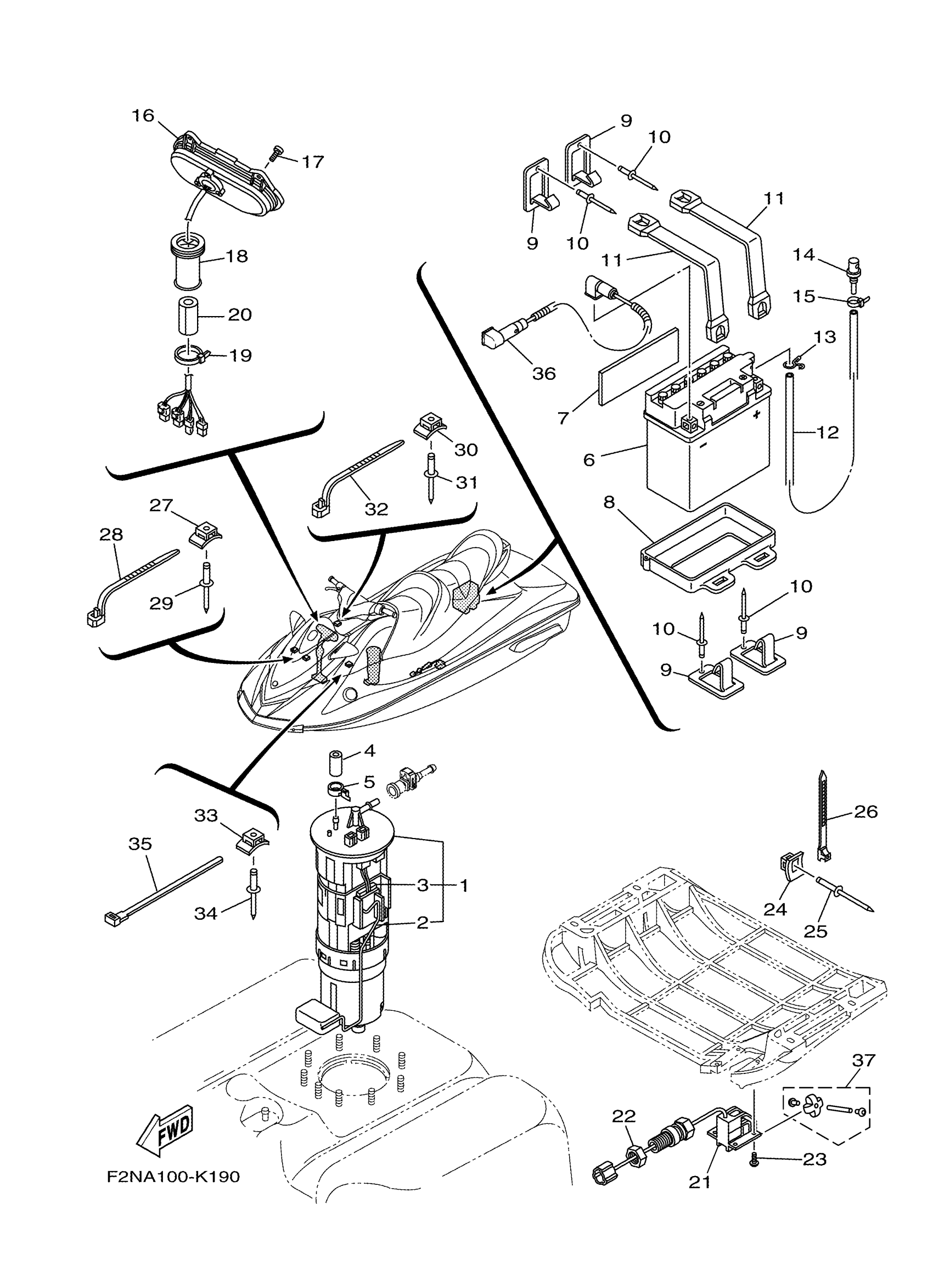

Yamaha VX1100BK (VX CRUISER_VX1100BK VX DELUXE) F2ND 2011 ELECTRICAL 3 Diagram

#

Description
Price

1

FUEL PUMP COMP.

60E-13907-0X-00

Unavailable

2

. FUEL SENDER ASSY

60E-682E0-00-00

$243.92

3

DAMPER, STOPPER

60E-82556-10-00

$18.49

4

PLUG

6D3-24481-00-00

$5.45

5

CLIP

6D3-24387-00-00

$6.82

6

BATTERY ASSY

EU0-82110-08-00

Unavailable

7

PAD, BATTERY

F1K-U8221-00-00

$2.66

8

CASE, BATTERY

F1K-U8211-01-00

$21.20

9

HOOK A

F1K-U5772-04-00

$6.29

10

RIVET (EU0)

90267-48938-00

$5.00

11

BAND, BATTERY 1

F1K-U821D-01-00

$5.54

12

HOSE, AIR VENT

F0D-U785G-11-00

Unavailable

13

CLIP

90467-089U1-00

$1.44

14

NIPPLE

GJ3-6215F-00-00

$9.08

15

CLAMP

90465-10098-00

$1.68

16

METER ASSY

F1K-6820A-02-00

$875.74

17

BOLT,HEX. SOCKET BUTTON

90111-05009-00

$2.27

18

GROMMET

GU2-6822E-01-00

$24.98

19

CLAMP

90464-32801-00

$1.23

20

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

21

SENSOR SPEED

F1S-U8K31-03-00

$142.18

22

NUT

F2C-U151S-00-00

$1.59

23

SCREW, ROUND HEAD

90150-05807-00

$0.79

24

BASE, CLAMP

F1W-U828M-00-00

$1.23

25

RIVET, BLIND

90267-489U6-00

$1.37

26

CLAMP

90464-32801-00

$1.23

27

BASE, CLAMP

F1W-U828M-00-00

$1.23

28

CLAMP

90464-32801-00

$1.23

29

RIVET, BLIND

90267-489U6-00

$1.37

30

BASE, CLAMP

F1W-U828M-00-00

$1.23

31

RIVET, BLIND

90267-489U6-00

$1.37

32

CLAMP

90464-32801-00

$1.23

33

BASE, CLAMP

F1W-U828M-00-00

$1.23

34

RIVET, BLIND

90267-489U6-00

$1.37

35

BAND

90601-200U2-00

$3.16

36

WIRE, MINUS LEAD

6BU-82116-00-00

$93.92

37

REPAIR KIT, SPEED SENSOR

GJ1-U835D-00-00

$22.63
