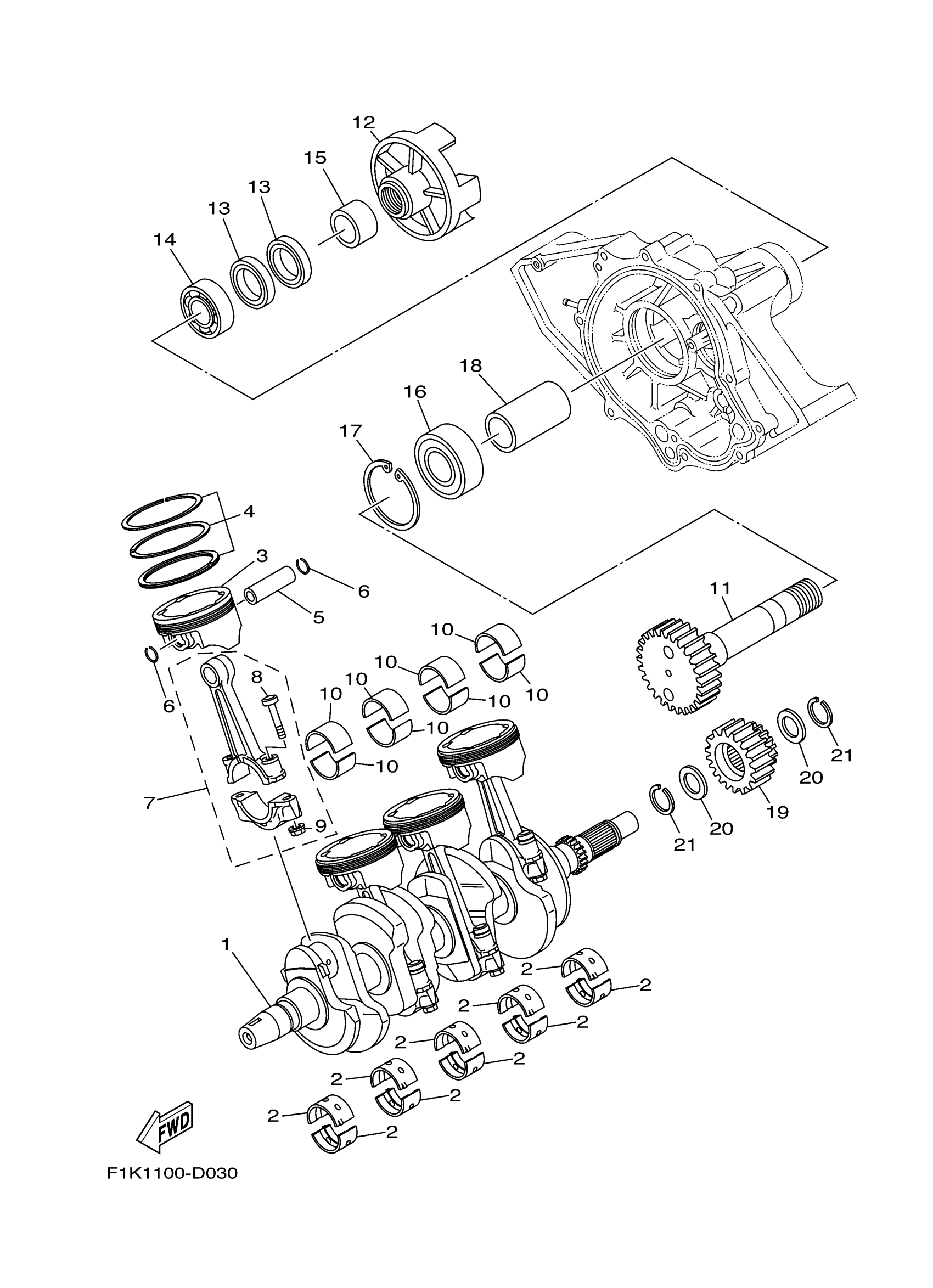

Yamaha VX1100BK (VX CRUISER_VX1100BK VX DELUXE) F2ND 2011 CRANKSHAFT & PISTON Diagram

#

Description
Price

1

CRANKSHAFT

60E-11411-11-00

$1,491.62

2

PLANE BEARING, CRANKSHAFT 1

6D3-11416-00-00

$16.29

2

PLANE BEARING, CRANKSHAFT 1

6D3-11416-10-00

$16.29

2

PLANE BEARING, CRANKSHAFT 1

6D3-11416-20-00

$15.55

2

PLANE BEARING, CRANKSHAFT 1

6D3-11416-30-00

$15.55

2

PLANE BEARING, CRANKSHAFT 1

6D3-11416-A0-00

$14.81

3

PISTON (STD)

6D3-11631-01-B0

$118.17

4

PISTON RING SET (STD)

6D3-11603-01-00

Unavailable

5

PIN, PISTON

6D3-11633-00-00

$18.49

6

CLIP (1J7)

90468-12069-00

$6.22

7

CONNECTING ROD ASSY

6D3-11650-00-00

$198.47

8

BOLT, CONNECTING ROD

5JW-11654-00-00

$5.09

9

NUT (11H)

90179-08327-00

$6.52

10

PLANE BEARING, CONNECTING ROD

60E-11656-00-00

$15.89

10

PLANE BEARING, CONNECTING ROD

60E-11656-10-00

$15.89

10

PLANE BEARING, CONNECTING ROD

60E-11656-20-00

$11.85

10

PLANE BEARING, CONNECTING ROD

60E-11656-30-00

$11.85

11

SHAFT, TRANSFER

6D3-17572-00-00

$278.77

12

FLANGE, COUPLING

6D3-45813-00-94

$86.35

13

OIL SEAL

93101-35004-00

$25.49

14

BEARING(55X)

93306-07801-00

Unavailable

15

COLLAR

6B6-11478-00-00

$62.11

16

BRG. R-B 6306 72MM 352.5GK

93306-30610-00

Unavailable

17

CIRCLIP (70R)

93420-72065-00

$8.32

18

COLLAR, GEAR

6B6-17585-00-00

$46.49

19

GEAR, TRANSFER DRIVE

6B6-17586-00-00

$206.05

20

WASHER

90209-25008-00

$4.44

21

CIRCLIP (2H7)

93440-28062-00

Unavailable
