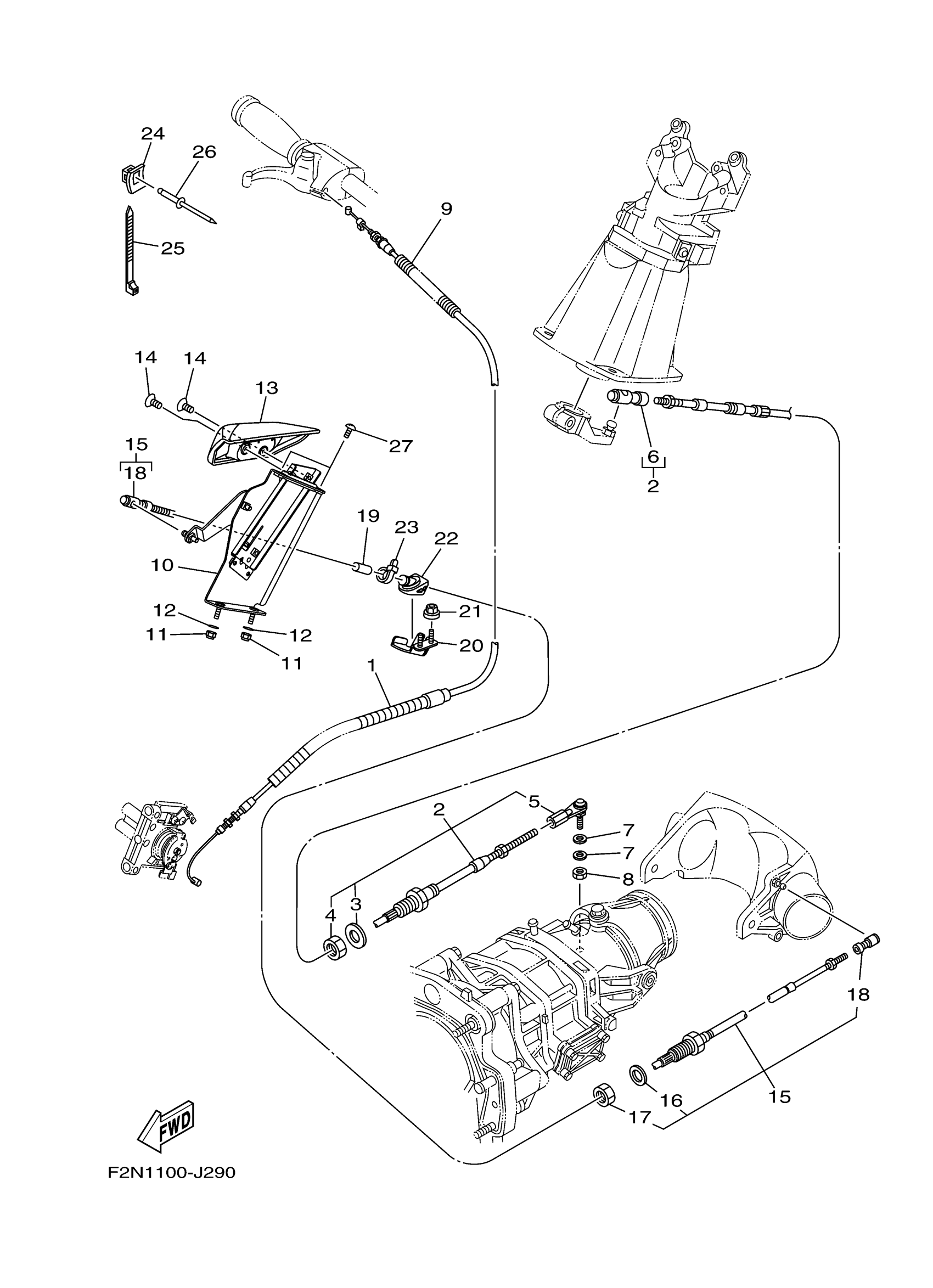

Yamaha VX1100BK (VX CRUISER_VX1100BK VX DELUXE) F2ND 2011 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE 1

6BU-26311-00-00

$99.98

2

CABLE, STEERING

F2N-61481-02-00

Unavailable

3

. PACKING C

F1B-61438-00-00

$2.72

4

NUT

F1B-6151S-01-00

$14.31

5

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

6

. BALL JOINT ASSY

F2N-61460-00-00

$48.47

7

WASHER, PLATE

90201-06906-00

$2.80

8

NUT

9538R-06700-00

$1.01

9

TUBE

90447-06803-00

$1.97

10

REMOCON. LEVER ASSY.

F2N-U134A-00-00

$145.44

11

NUT, NYLON

9572R-06300-00

$2.80

12

WASHER

9299R-06200-00

$0.43

13

GRIP

F2N-U2714-01-00

$57.56

14

SCREW, COUNTERSUNK

90151-06815-00

$1.23

15

CABLE,REVERSE

F2N-6149C-01-00

Unavailable

16

. PACKING C

F1B-61438-00-00

$2.72

17

NUT

F1B-6151S-01-00

$14.31

18

. BALL JOINT ASSY

F1B-61460-00-00

$50.99

19

PACKING, CABLE

F1W-U146G-00-00

$1.43

20

BRACKET,STOPPER CABLE

F2N-U1467-00-00

$15.14

21

NUT, LOCK

F2N-U142L-00-00

$1.00

22

PACKING, CABLE

F2N-U146G-00-00

$3.56

23

CLAMP

90465-10098-00

$1.68

24

BASE, CLAMP

F1W-U828M-00-00

$1.23

25

CLAMP

90464-32801-00

$1.23

26

RIVET, BLIND

90267-489U6-00

$1.37

27

SCREW

F2N-67823-10-00

$2.02
