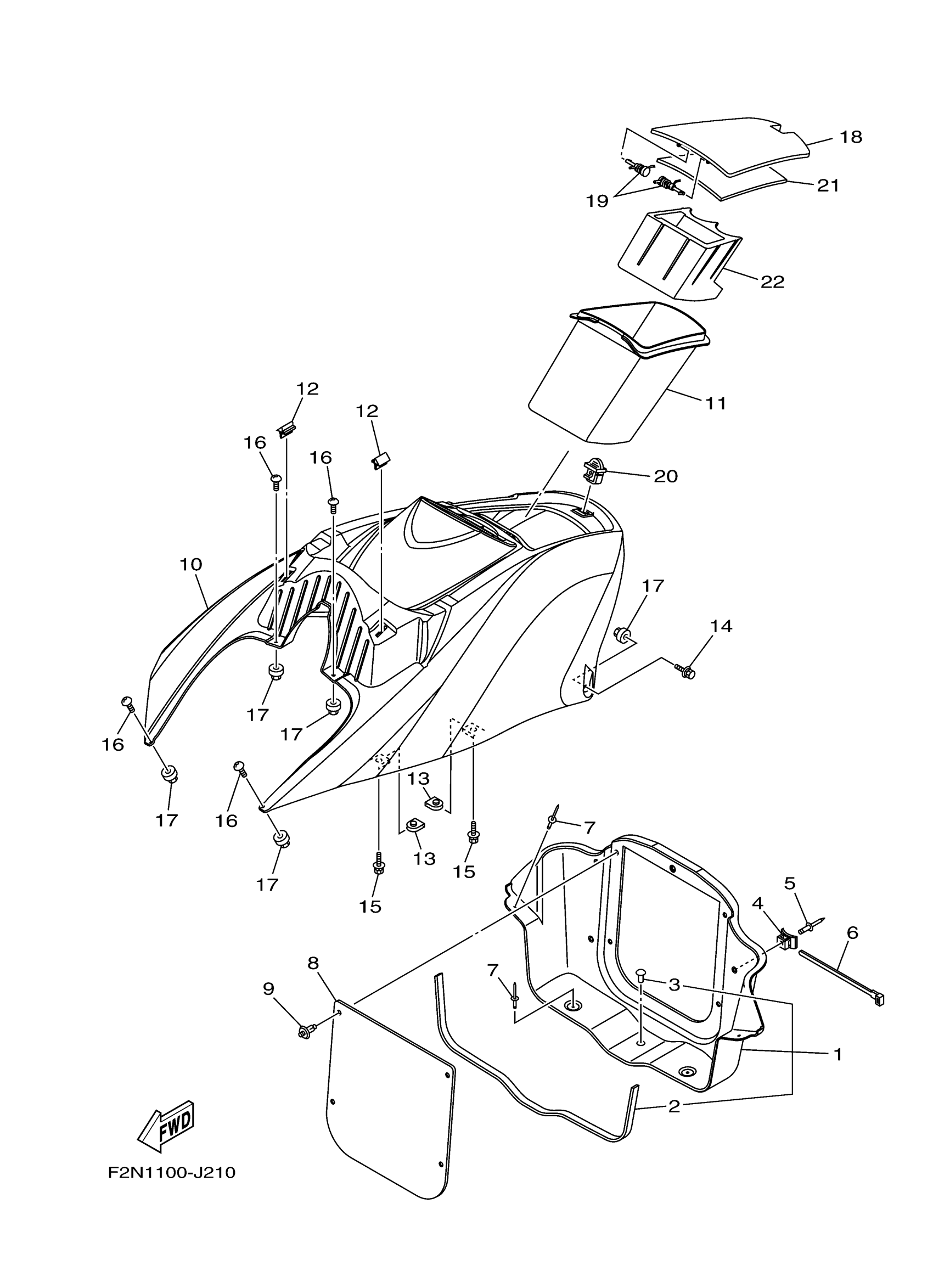

Yamaha VX1100BJ (VX CRUISER VX1100BJ VX DELUXE) F2N4 2010 ENGINE HATCH 1 Diagram

#

Description

Price

1

LOCKER, BOW

F2N-U475B-02-00

Unavailable

2

PACKING 4

F2C-U266C-00-00

Unavailable

3

. PLUG, BLIND

90605-502U1-00

Unavailable

4

BASE, CLAMP

F1W-U828M-00-00

Unavailable

5

RIVET, BLIND

90267-48803-00

Unavailable

6

CLAMP

90464-32801-00

Unavailable

7

RIVET, 1

F3J-U516R-00-00

Unavailable

8

PLATE, LOKER BOW

F1W-U475F-01-00

Unavailable

9

RIVET

90269-08801-00

Unavailable

10

COVER, ENGINE HATCH (BMG) (BLACK METALLIC G)

F2N-U516N-00-P1

Unavailable

10

COVER, ENGINE HATCH (BMG) (BLACK METALLIC G)

F2N-U516N-00-P1

Unavailable

10

COVER, ENGINE HATC

F2N-U516N-00-P0

Unavailable

10

COVER, ENGINE HATCH

F2N-U516N-00-P2

Unavailable

11

BOX GLOVE

F2N-U516P-00-00

Unavailable

12

PACKING 4

F1K-U266C-10-00

$4.99

13

NUT, SPRING(GJ3)

90183-06902-00

Unavailable

14

BOLT, WITH WASHER

90119-06880-00

Unavailable

15

BOLT, WITH WASHER

90119-06878-00

Unavailable

16

SCREW

F2N-67823-10-00

Unavailable

17

NUT, SELF-LOCKING

90185-06014-00

Unavailable

18

LID HATCH

F2N-U517H-01-00

Unavailable

19

PIN, HINGE

F0X-6517R-01-00

Unavailable

20

LOCK

GU2-62875-02-00

Unavailable

21

PACKING CASE

F2N-U519D-00-00

Unavailable

22

HOLDER, DRINK

F2N-U5633-00-00

Unavailable
