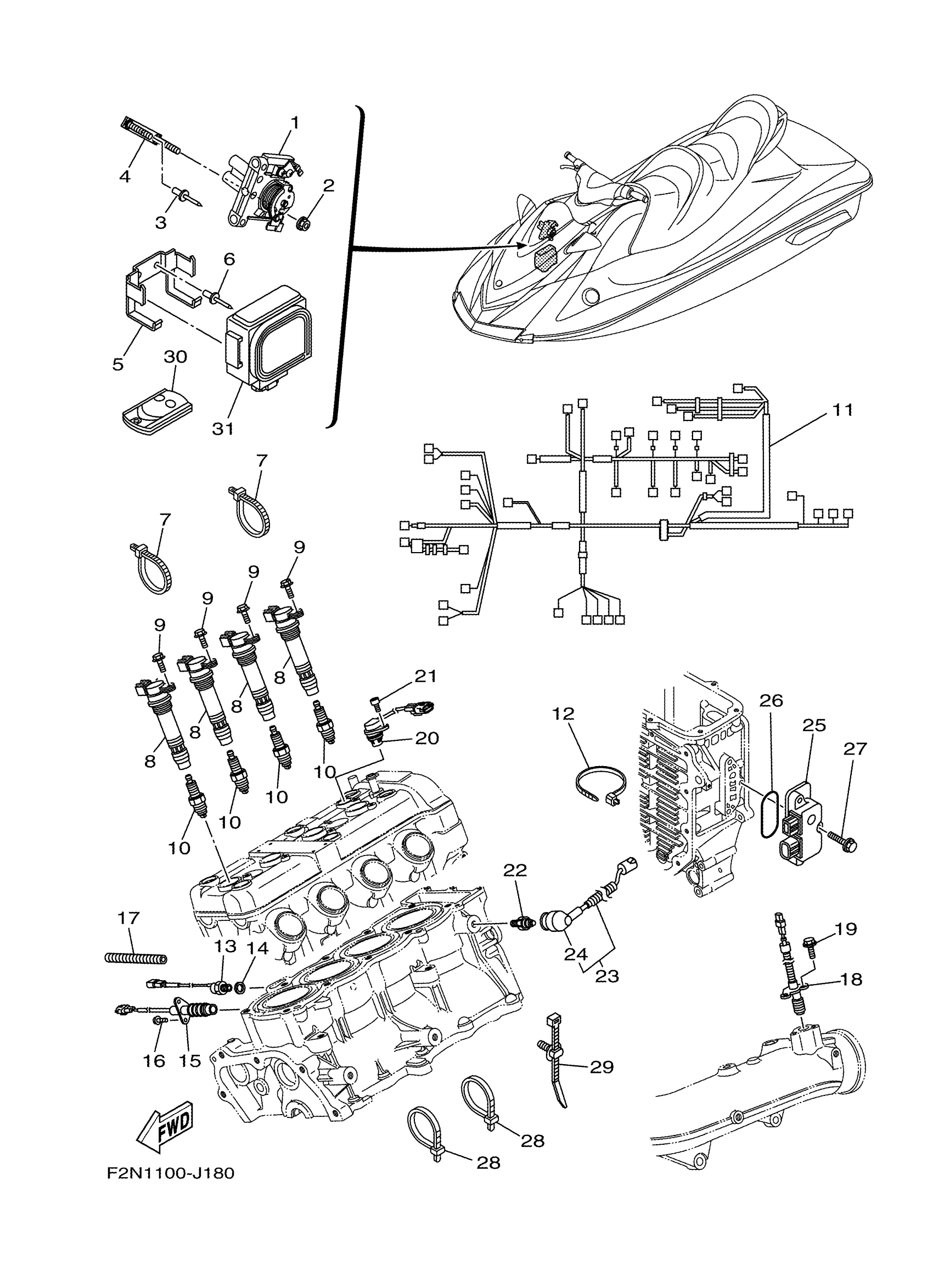

Yamaha VX1100BJ (VX CRUISER VX1100BJ VX DELUXE) F2N4 2010 ELECTRICAL 2 Diagram

#

Description
Price

1

ACCEL. POSITON SENSOR ASSY

6D3-14305-21-00

$443.92

2

NUT, NYLON (6J8)

95780-08300-00

$10.55

3

RIVET (EU0)

90267-48938-00

$5.00

4

BRACKET, THROTTLE

F1W-U7254-00-00

Unavailable

5

BRACKET

F1W-U826C-00-00

$18.17

6

RIVET, BLIND(EU0,USA)

90267-489U9-00

$3.11

7

CLAMP(3XW)

90464-35132-00

$6.77

8

IGNITION COIL ASSY

6D3-82310-01-00

$207.56

9

BOLT, FLANGE(JL8)

95880-06016-00

$3.41

10

CR9EB NGK SPLUG 4PK

CR9-EB000-00-00

$7.28

11

WIRE HARNESS ASSY 1

6BU-8259L-A0-00

Unavailable

12

BAND, SWITCH CORD

437-83936-11-00

$3.34

13

THERMOSENSOR ASSY

61A-85790-01-00

$121.46

14

WASHER, PLATE

92990-10600-00

$2.57

15

THERMO SWITCH ASSY

60E-82560-A1-00

$104.53

16

BOLT, HEXAGON W/W DEEP RECESS

97E95-06416-00

$0.76

17

TUBE

EU0-67731-00-00

Unavailable

18

THERMO SWITCH ASSY

6D3-82560-01-00

$118.17

19

BOLT, HEXAGON W/W DEEP RECESS

97E95-06416-00

$0.76

20

SENSOR, CAM POSITION

6D3-85896-01-00

Unavailable

21

BOLT,SOCKET

91380-06016-00

Unavailable

22

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

$62.91

23

LEAD WIRE ASSY

60E-81315-01-00

$41.99

24

CAP

60E-82532-01-00

Unavailable

25

EARTH PLATE COMP.

6D3-8273J-02-00

Unavailable

26

O-RING

93210-60ME8-00

$9.99

27

BOLT, WITH WASHER

90119-06048-00

$2.27

28

CLAMP

90465-13M18-00

$1.71

29

CLAMP

90464-45002-00

$5.45

30

XMTR. COMP.

6B6-86261-00-00

$228.48

31

RECEIVER COMPLETE

6B6-86265-00-00

$427.26
