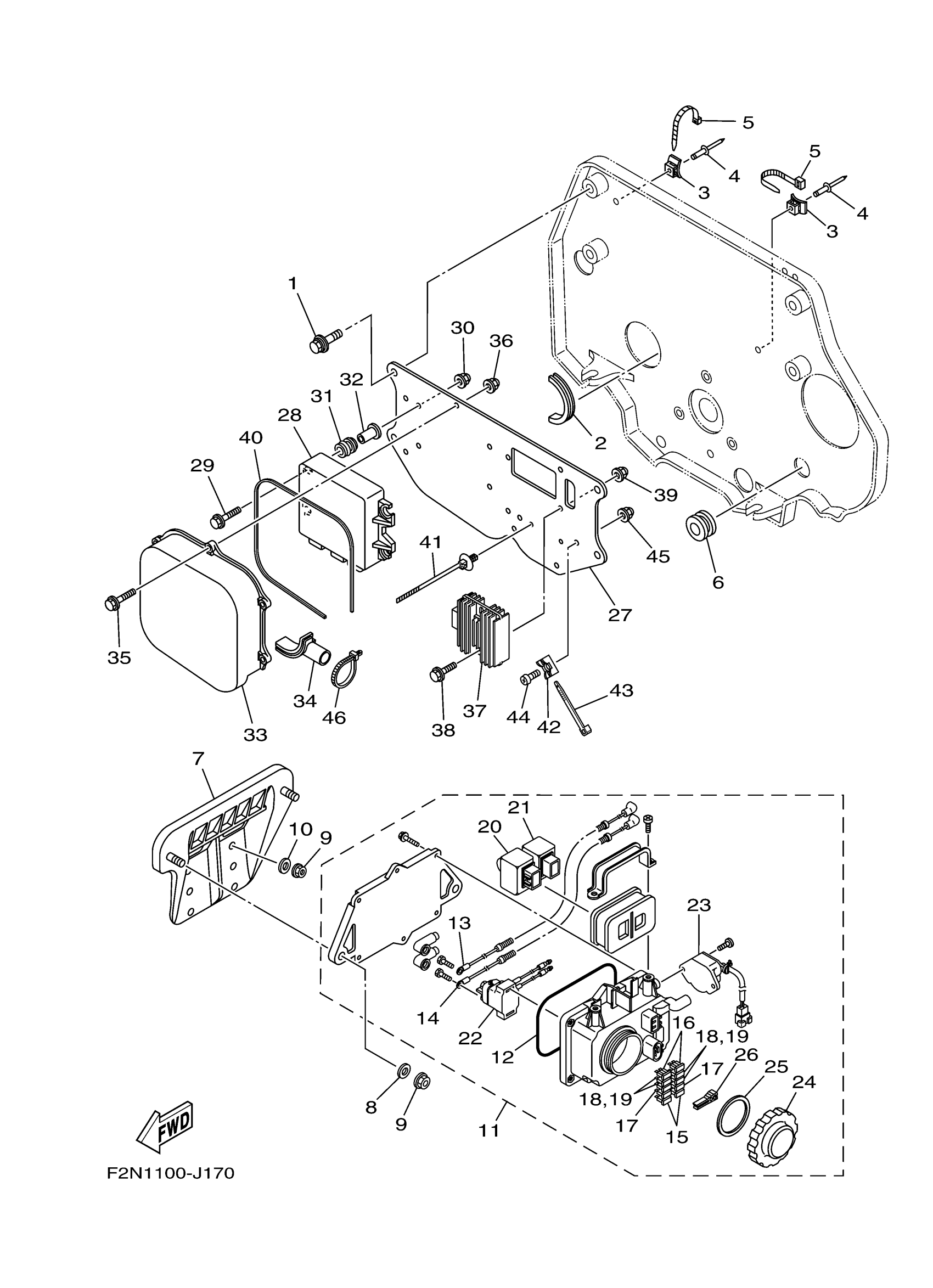

Yamaha VX1100BJ (VX CRUISER VX1100BJ VX DELUXE) F2N4 2010 ELECTRICAL 1 Diagram

#

Description
Price

1

BOLT, WITH WASHER

90119-08800-00

$4.09

2

TRIM, 1

F1S-U828H-01-00

$6.52

3

BASE, CLAMP

F1W-U828M-00-00

$1.23

4

RIVET, BLIND

90267-48802-00

$1.98

5

CLAMP

90464-32801-00

$1.23

6

GROMMET

90480-279U1-00

$11.35

7

BRACKET, ELECTRIC BOX

F2N-U815D-01-00

$33.32

8

WASHER, PLATE

90201-099U3-00

$2.16

9

NUT, NYLON (6J8)

95780-08300-00

$10.55

10

WASHER

9299R-08200-00

$1.82

11

FUSE BOX ASSY

6BU-82170-01-00

Unavailable

12

. GASKET, TERMINAL

6D3-81921-00-00

$14.38

13

. WIRE, PLUS LEAD

6BU-82115-00-00

$96.95

14

. WIRE, LEAD

6D3-82117-00-00

$78.77

15

FUSE

5JJ-82151-20-00

$5.98

16

FUSE

5JJ-82151-60-00

Unavailable

17

. FUSE (3A)

67F-82151-30-00

$4.69

18

. FUSE (10A)

67F-82151-40-00

$6.07

19

. FUSE (10A)

67F-82151-40-00

$6.07

20

RELAY ASSY

60E-81950-00-00

$137.93

21

. RELAY ASSY

68V-81950-00-00

$111.74

22

. STARTER RELAY ASSY

6B6-81940-00-00

$97.06

23

SWITCH ASSY

60E-8259E-00-00

$142.53

24

. CAP

66V-8132W-00-00

$11.85

25

. GASKET

66V-81844-00-00

Unavailable

26

. PULLER, FUSE

67F-2812A-00-00

$4.11

27

PLATE

6BU-81845-00-00

$177.26

28

ENGINE CONTROL UNIT ASSY

6BU-8591A-A0-00

$2,812.11

29

BOLT, FLANGE

95814-06025-00

Unavailable

30

NUT, CROWN (35R)

90176-06047-00

Unavailable

31

DAMPER, IGNITION C

6A0-82317-01-00

$6.39

32

. COLLAR

90387-06119-00

$4.37

33

COVER

6BU-81639-00-00

$57.56

34

GROMMET

6BU-81336-00-00

Unavailable

35

BOLT, FLANGE

95814-06020-00

Unavailable

36

NUT, CROWN (35R)

90176-06047-00

Unavailable

37

RECTIFIER & REGULATOR ASSY

6S8-81960-00-00

$163.22

38

BOLT, FLANGE

95814-06020-00

Unavailable

39

NUT, CROWN (35R)

90176-06047-00

Unavailable

40

GASKET

6BU-81861-00-00

$5.91

41

CLAMP

90464-20005-00

$2.11

42

BRACKET 1

60E-1244E-00-00

$7.27

43

BAND, SWITCH CORD

437-83936-11-00

Unavailable

44

BOLT, BUTTON HEAD(3JP)

92014-06012-00

Unavailable

45

NUT, CROWN (35R)

90176-06047-00

Unavailable

46

CLAMP

90465-13M18-00

$1.71
