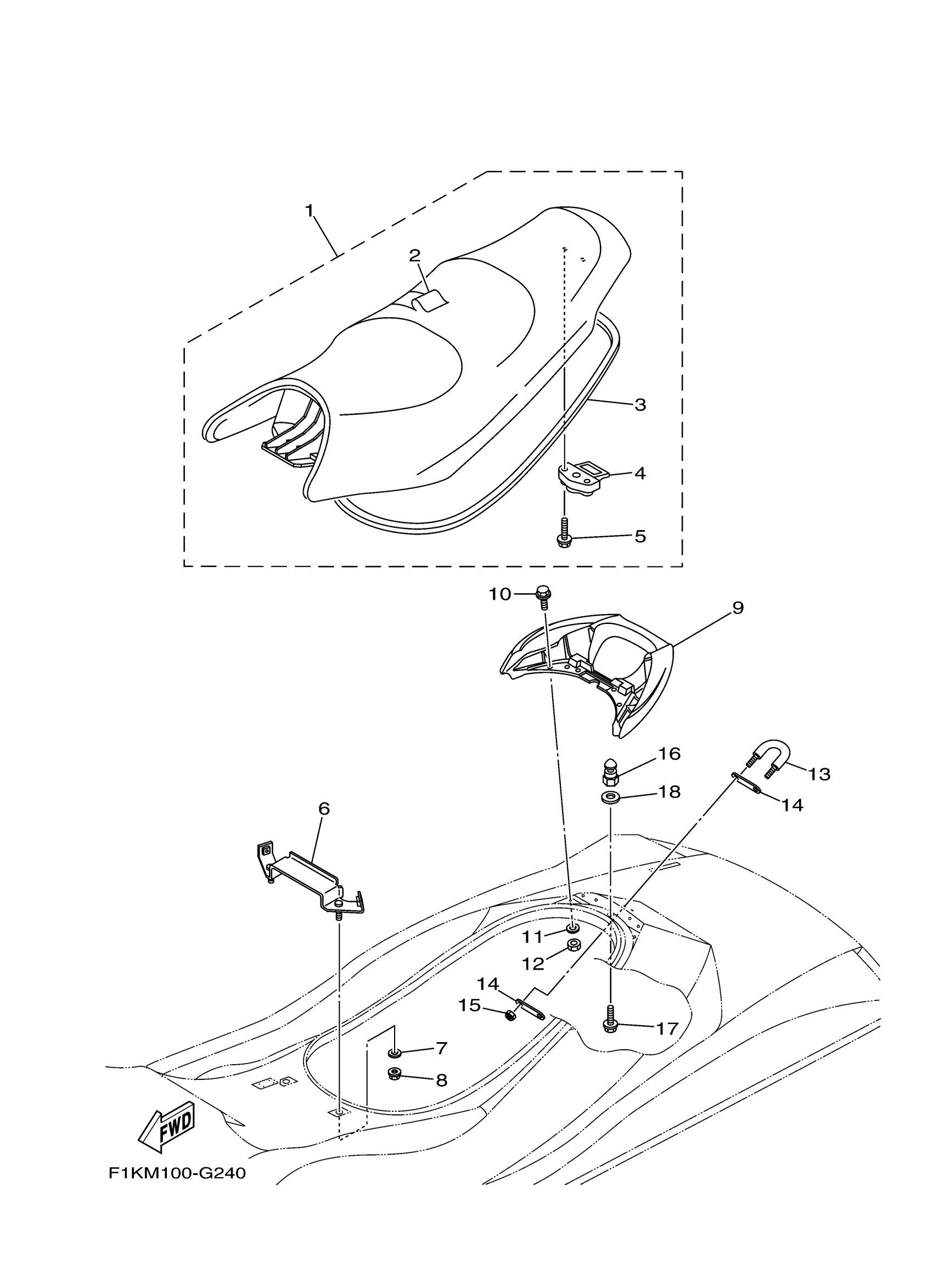

Yamaha VX1100BH (WAVERUNNER VX CRUISERVX1100BH WAVERUNNER) F2L4 2009 SEAT UNDER LOCKER Diagram

#

Description

Price

1

DOUBLE SEAT ASSY(SILVER)

F1K-U371A-12-00

Unavailable

1

DOUBLE SEAT ASSY

F1K-U371A-60-00

Unavailable

1

DOUBLE SEAT ASSY

F1K-U371A-70-00

Unavailable

1

DOUBLE SEAT ASSY

F1K-U371A-80-00

Unavailable

2

. COVER, SEAT 1

F1K-U371B-10-00

Unavailable

2

. COVER, SEAT 1

F1K-U371B-60-00

Unavailable

2

. COVER, SEAT 1

F1K-U371B-70-00

Unavailable

2

. COVER, SEAT 1

F1K-U371B-80-00

Unavailable

3

PACKING

F1K-U2664-01-00

Unavailable

4

SEAT LOCK ASSY

F1B-U3850-02-00

Unavailable

5

BOLT, WITH WASHER

90119-06808-00

Unavailable

6

STAY, SEAT 1

F1K-U378C-00-00

Unavailable

7

WASHER, PLATE

90201-099U3-00

Unavailable

8

NUT, NYLON (6J8)

95780-08300-00

Unavailable

9

GRIP, HAND

F1K-U271B-04-00

Unavailable

10

BOLT, WITH WASHER

90119-06820-00

Unavailable

11

WASHER

9299R-06200-00

Unavailable

12

NUT, NYLON

9572R-06300-00

Unavailable

13

STERN EYE (BLACK)

F1K-61628-00-00

Unavailable

14

PLATE A

GP7-U4953-10-00

Unavailable

15

NUT, NYLON (6J8)

95780-08300-00

Unavailable

16

PIN

F1K-U3774-00-00

Unavailable

17

BOLT,WITH WASHER

90119-10815-00

Unavailable

18

WASHER

9299R-10200-00

Unavailable
