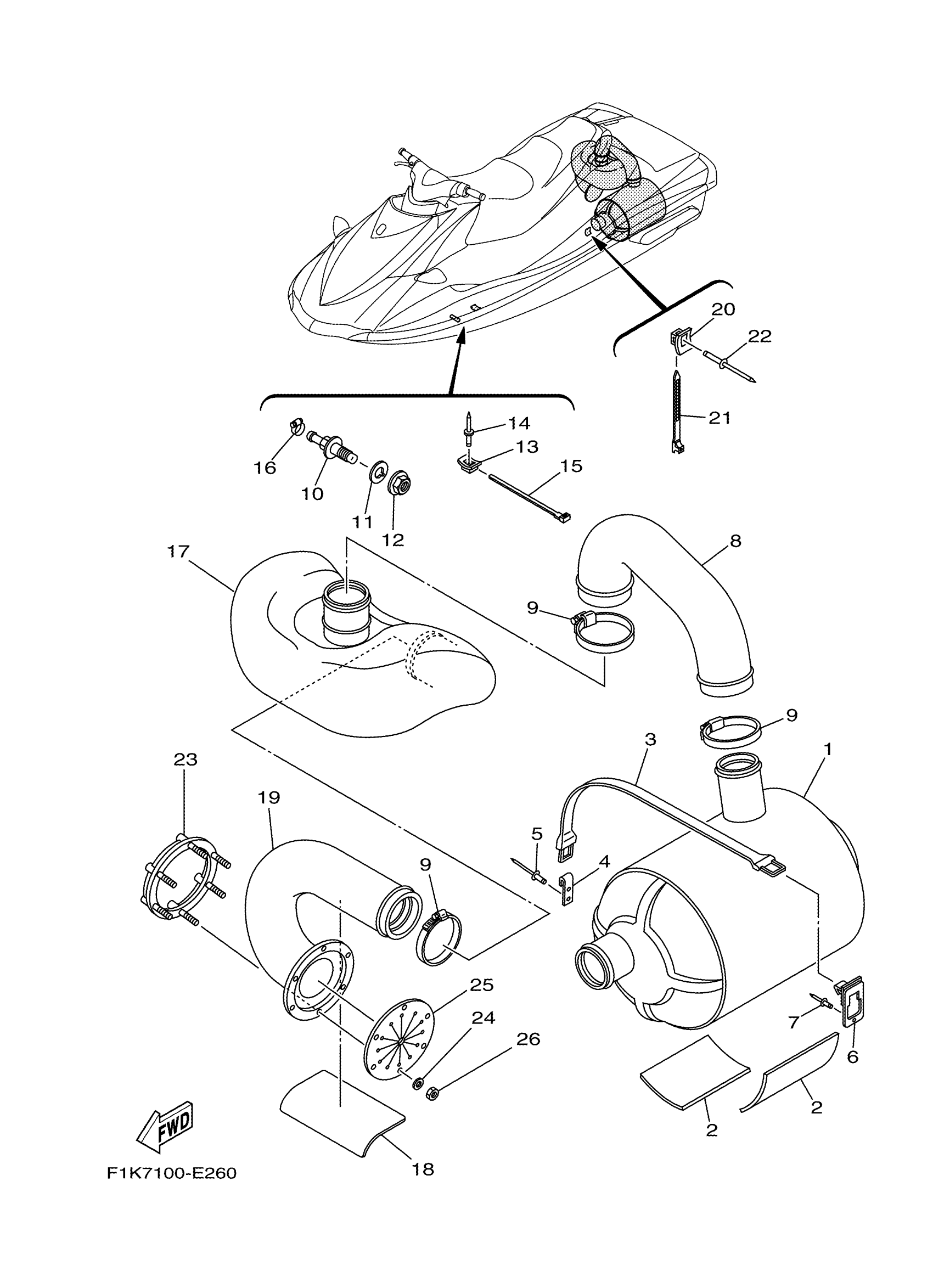

Yamaha VX1100BH (WAVERUNNER VX CRUISERVX1100BH WAVERUNNER) F2L4 2009 EXHAUST 3 Diagram

#

Description
Price

1

WATER LOCK COMP.

F1K-U7550-02-00

Unavailable

2

PAD, BATTERY

F1S-U8221-00-00

$2.75

3

BAND, FUEL TANK

EW2-67821-00-00

$38.49

4

HOOK A

GA7-65772-00-00

$9.08

5

RIVET (EU0)

90267-48938-00

$5.00

6

HOOK A

F1K-U5772-01-00

Unavailable

7

RIVET (EU0)

90267-48938-00

$5.00

8

HOSE, EXHAUST

F1K-U7555-00-00

Unavailable

9

BAND, HOSE 75

90601-175UR-00

Unavailable

10

PILOT, WATER

F1K-6753B-00-00

Unavailable

11

GASKET

F1B-67564-00-00

$3.64

12

NUT

F0X-62733-00-00

$11.35

13

CLAMP COMP (EU0)

90600-91736-00

$6.22

14

RIVET, BLIND

90267-48802-00

$1.98

15

CLAMP

90464-32801-00

$1.23

16

BAND, HOSE 18

90601-118UF-00

$2.07

17

TANK, WATER

F1K-U4261-01-00

$322.71

18

PAD, BATTERY

F1S-U8221-00-00

$2.75

19

HOSE, EXHAUST 3

F1K-U758D-00-00

$160.59

20

CLAMP COMP (EU0)

90600-91736-00

$6.22

21

CLAMP

90464-32801-00

$1.23

22

RIVET, BLIND

90267-489U6-00

$1.37

23

PLATE

F1S-U757B-01-00

$22.97

24

WASHER

9299R-06200-00

$0.43

25

VALVE, EXHAUST

F1B-U751G-10-00

Unavailable

26

NUT, NYLON

9572R-06300-00

$2.80
