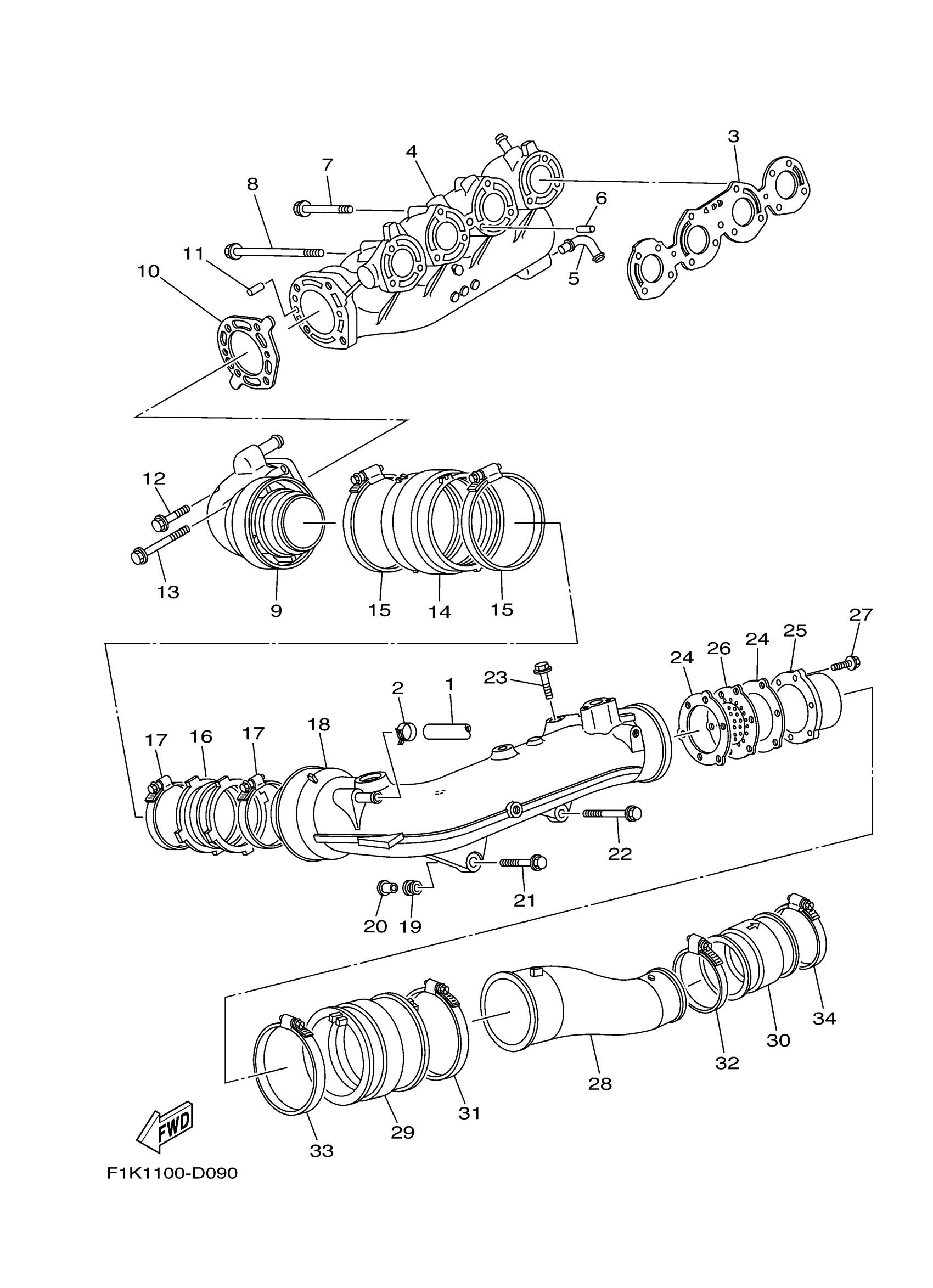

Yamaha VX1100BH (WAVERUNNER VX CRUISERVX1100BH WAVERUNNER) F2L4 2009 EXHAUST 1 Diagram

#

Description
Price

1

HOSE (L870)

90445-16005-00

$26.99

2

CLIP

90467-160A0-00

$2.95

3

GASKET, EXHAUST PIPE

6D3-14613-00-00

$29.88

4

MUFFLER 1

6D3-14711-00-94

$878.77

5

NIPPLE, HOSE

60E-11372-10-00

$19.68

6

PIN, DOWEL

93608-16M16-00

$2.41

7

BOLT, WITH WASHER

90119-08036-00

$4.09

8

BOLT, WITH WASHER

90119-08075-00

$5.18

9

RING, JOINT

6D3-14712-00-94

$415.14

10

GASKET, MUFFLER DAMPER 1

6D3-14739-01-00

$48.47

11

PIN, DOWEL (614)

93606-12019-00

$3.05

12

BOLT, WITH WASHER

90119-08036-00

$4.09

13

BOLT, WITH WASHER

90119-08031-00

$5.00

14

JOINT, EXHAUST 1

6D3-14615-00-00

$75.74

15

HOSE CLAMP ASSY

90450-99005-00

$11.35

16

JOINT, EXHAUST 2

6D3-14625-00-00

$46.95

17

HOSE CLAMP ASSY

90450-90001-00

$36.99

18

MUFFLER 2

6D3-14721-00-94

$878.77

19

GROMMET(62L)

90480-21M63-00

Unavailable

20

COLLAR

90387-11008-00

$19.68

21

BOLT, WITH WASHER

90119-10011-00

$5.91

22

BOLT, WITH WASHER

90119-10017-00

$6.36

23

BOLT, WITH WASHER

90119-10013-00

$4.81

24

. GASKET, EXHAUST PIPE

60E-14623-00-00

$5.45

25

PIPE, TAIL

60E-14784-00-94

$50.99

26

PLATE, SILENCER 6

6D3-1469W-10-00

$43.92

27

BOLT, WASHER BASED(4EB)

90105-06790-00

Unavailable

28

PIPE, OUTLET

6D3-14752-00-94

$157.56

29

PIPE 2

6BU-1475E-00-00

$34.83

30

PIPE 3

6BU-1475F-00-00

$30.29

31

HOSE CLAMP ASSY

90450-99004-00

$8.51

32

HOSE CLAMP ASSY

90450-94001-00

$14.38

33

HOSE CLAMP ASSY

90450-99004-00

$8.51

34

HOSE CLAMP ASSY

90450-94001-00

$14.38
