CRANKCASE

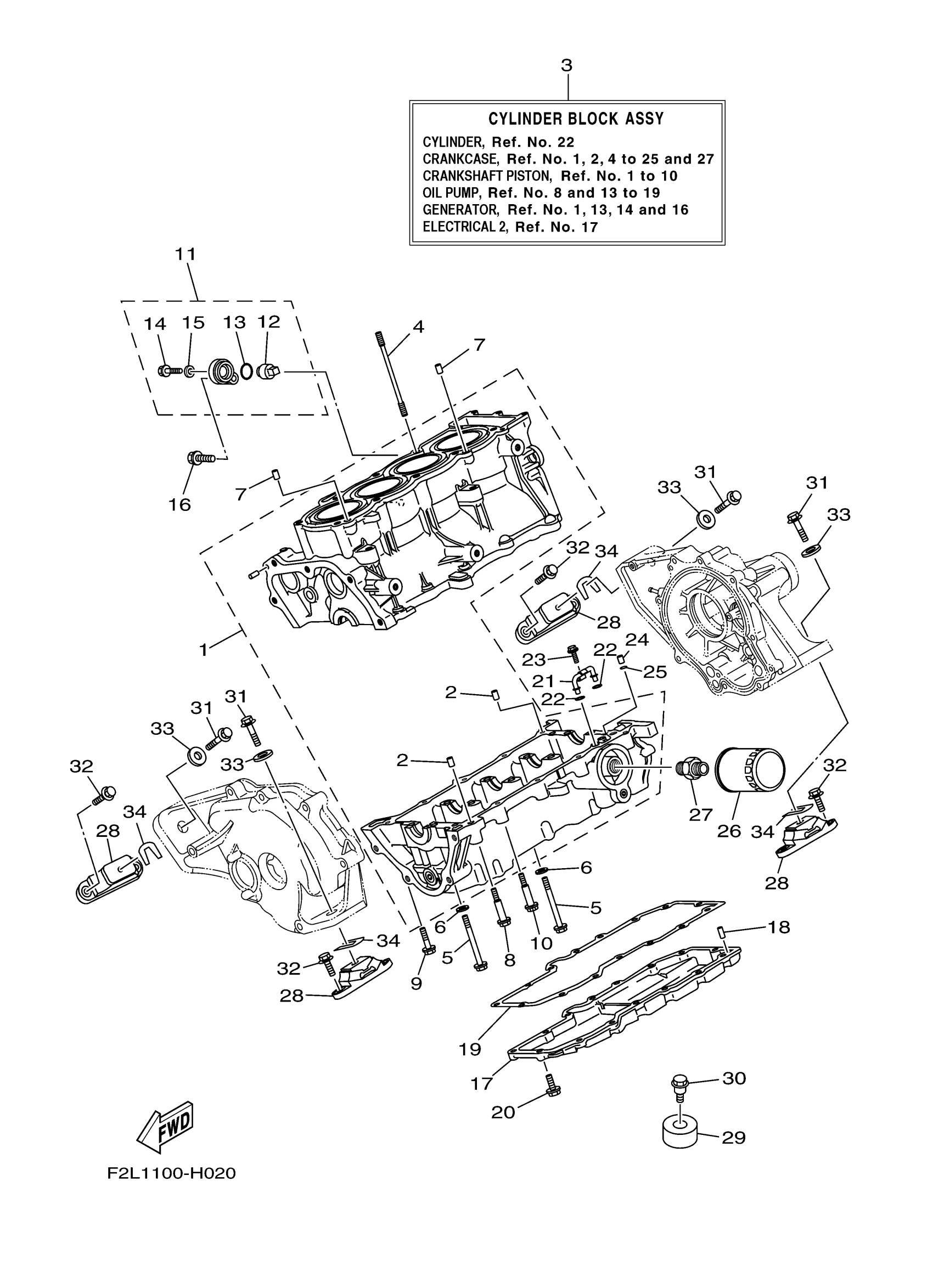

Yamaha VX1100BH (WAVERUNNER VX CRUISERVX1100BH WAVERUNNER) F2L4 2009 CRANKCASE Diagram
#
1
CRANKCASE ASSY & STUD BOLTS
99999-04006-00
Unavailable
2
PIN, DOWEL(3VD)
99530-10114-00
$2.55
3
CYLINDER BLOCK ASSY
6BU-W009B-01-94
Unavailable
4
BOLT, STUD
90116-10619-00
$11.49
5
BOLT, WASHER BASED
90105-093A5-00
$11.49
6
WASHER, PLATE(1AA)
90201-096J9-00
$4.41
7
PIN, DOWEL(3VD)
99530-10114-00
$2.55
8
BOLT
90109-06051-00
Unavailable
9
BOLT, FLANGE(3JP)
95814-06070-00
$8.49
10
BOLT, FLANGE
90105-06M17-00
Unavailable
11
ANODE COVER ASSY
69J-11301-02-00
Unavailable
12
ANODE
6ML-11325-00-00
Unavailable
13
GROMMET, ANODE
67F-11328-01-00
Unavailable
14
BOLT (689)
90105-06M07-00
$1.54
15
. GASKET
90430-06M03-00
Unavailable
16
BOLT, HEXAGON W/W DEEP RECESS
97E95-08540-00
Unavailable
17
PAN, OIL
6B6-1310A-01-00
Unavailable
18
PIN, DOWEL
93603-14M15-00
Unavailable
19
GASKET
6B6-13557-01-00
Unavailable
20
BOLT, WITH WASHER(61B)
97513-06520-00
Unavailable
21
PIPE, DELIVERY 1
60E-13161-00-00
Unavailable
22
O-RING(26H)
93210-06667-00
Unavailable
23
BOLT, FLANGE(4MY)
95027-06010-00
Unavailable
24
PIN, DOWEL
99530-08012-00
Unavailable
25
. O-RING
93210-08001-00
Unavailable
26
ELEMENT ASSY, OIL
5GH-13440-90-00
Unavailable
27
BOLT, UNION
90401-20007-00
Unavailable
28
MOUNT RUBBER
67X-44517-10-00
Unavailable
29
STOPPER, LOWER MOUNT RUBBER
6D3-44574-00-00
Unavailable
30
BOLT
90109-06M92-00
Unavailable
31
BOLT, WITH WASHER
90119-08856-00
Unavailable
32
BOLT, WITH WASHER
90119-08829-00
Unavailable
33
WASHER, PLATE
90201-099U3-00
Unavailable
34
SHIM (T=0.1)
EU0-67354-A0-00
Unavailable
34
SHIM (T=0.3)
EU0-67354-B0-00
Unavailable
34
SHIM (T=0.5)
EU0-67354-C0-00
Unavailable
34
SHIM (T=1.0)
EU0-67354-D0-00
Unavailable
34
SHIM (T=2.0)
EU0-67354-E0-00
Unavailable
