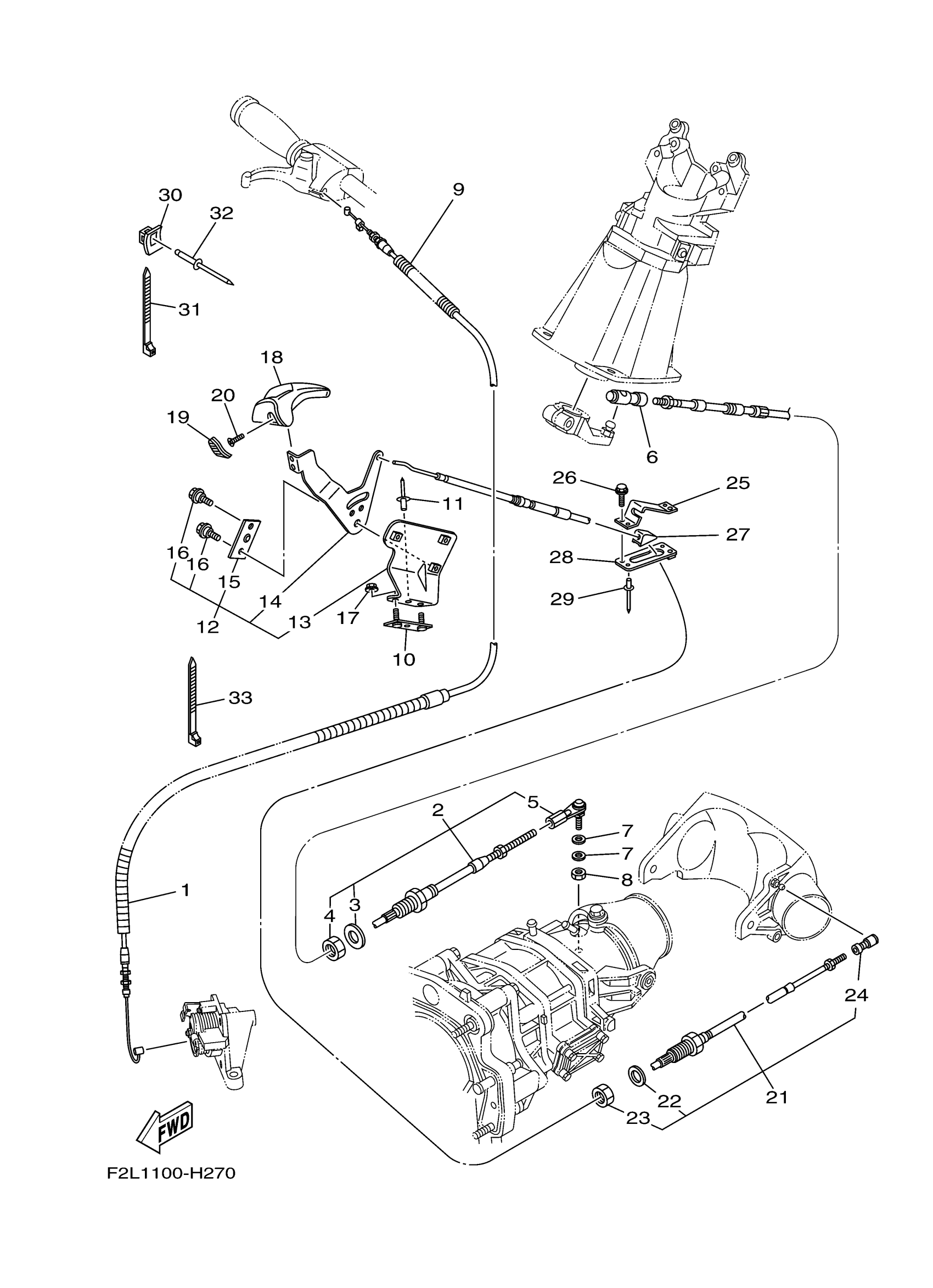

Yamaha VX1100BH (WAVERUNNER VX CRUISERVX1100BH WAVERUNNER) F2L4 2009 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE 1

6D3-26311-02-00

Unavailable

2

CABLE, STEERING

F1K-61481-03-00

Unavailable

3

. PACKING C

F1B-61438-00-00

Unavailable

4

NUT

F1B-6151S-01-00

Unavailable

5

. STUD, JOINT BALL

F1B-61461-02-00

Unavailable

6

SHAFT,JOINT BALL

GK5-U146F-00-00

Unavailable

7

WASHER, PLATE

90201-06906-00

Unavailable

8

NUT

9538R-06700-00

Unavailable

9

TUBE

90447-06803-00

Unavailable

10

BRACKET

F1K-U826C-03-00

Unavailable

11

RIVET, BLIND

90267-489U6-00

Unavailable

12

REMOCON. LEVER ASSY.

F1K-U134A-00-00

Unavailable

13

. BRACKET

F1K-U1794-02-00

Unavailable

14

. LEVER

F1K-U151N-02-00

Unavailable

15

. DETENT PLATE

F1K-U152N-00-00

Unavailable

16

. BOLT

F1K-U1355-00-00

Unavailable

17

NUT, NYLON (6J8)

95780-08300-00

Unavailable

18

GRIP

F1K-U2714-02-00

Unavailable

19

DAMPER, STOPPER

F1K-U1336-00-00

Unavailable

20

SCREW, COUNTERSUNK

90151-05802-00

Unavailable

21

CABLE,REVERSE

F1K-6149C-01-00

Unavailable

22

. PACKING C

F1B-61438-00-00

Unavailable

23

NUT

F1B-6151S-01-00

Unavailable

24

. BALL JOINT ASSY

F1B-61460-00-00

Unavailable

25

BRACKET, STOPPER CABLE

F1K-U1467-11-00

Unavailable

26

BOLT, WITH WASHER

90119-06878-00

Unavailable

27

PACKING, CABLE

F1K-U146G-01-00

Unavailable

28

PLATE, STOPPER

F1K-U1316-02-00

Unavailable

29

RIVET, BLIND

90267-489U6-00

Unavailable

30

CLAMP COMP (EU0)

90600-91736-00

Unavailable

31

CLAMP

90464-32801-00

Unavailable

32

RIVET, BLIND

90267-489U6-00

Unavailable

33

CLAMP(JN6)

90464-40825-00

Unavailable
