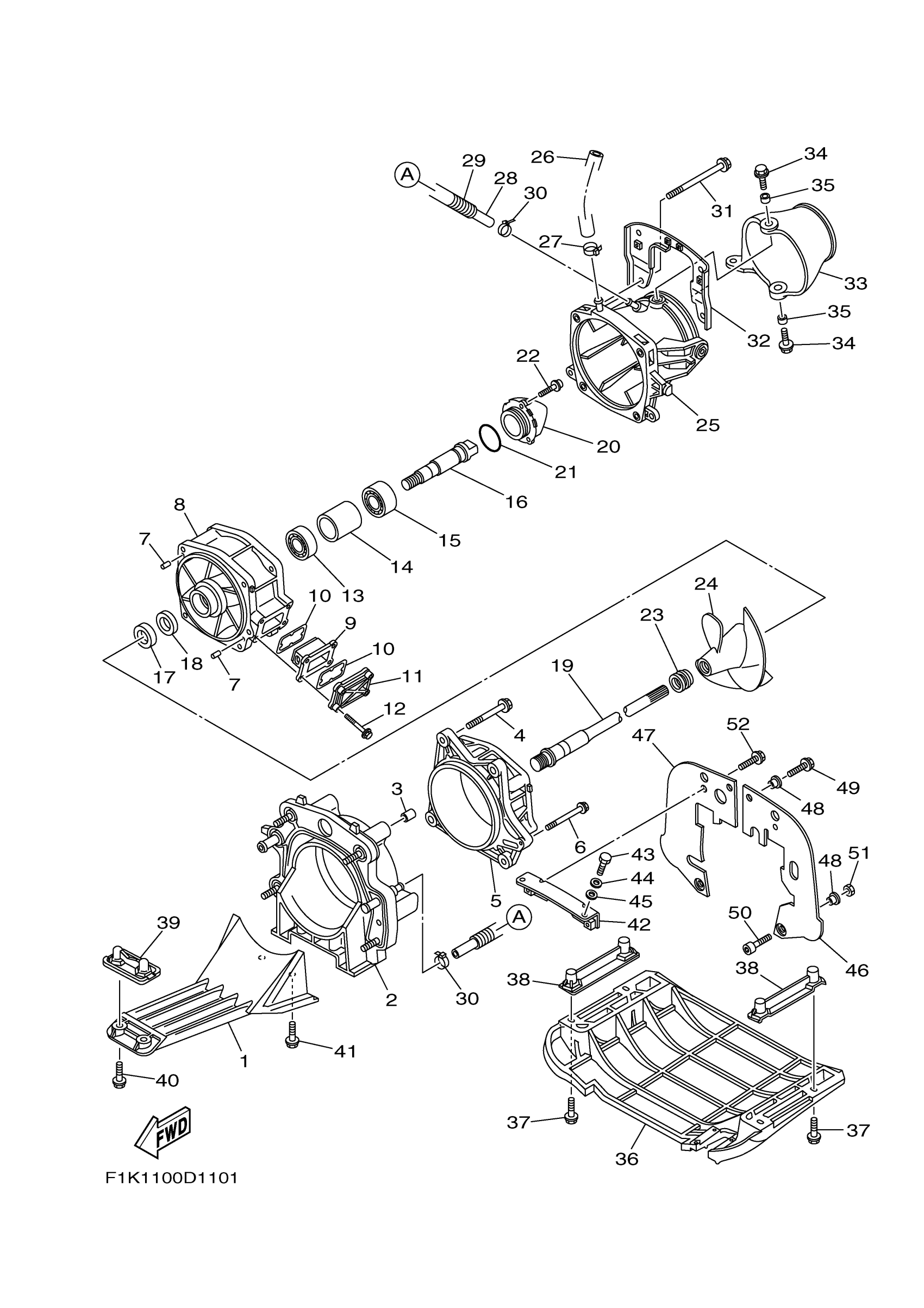

Yamaha VX1100BGB (WaveRunner VX Deluxe) F1KT 2008 JET UNIT 1 Diagram

#

Description
Price

1

SCREEN, INTAKE

6D3-R1333-01-00

$81.78

2

PLATE, TRANSOM

6AN-G5831-10-00

Unavailable

3

PIN, DOWEL(4JT)

99590-14016-00

$3.41

4

BOLT, WITH WASHER

90119-10811-00

$1.37

5

HOUSING, IMPELLER

6CR-R1312-00-00

$107.60

6

BOLT, WITH WASHER

90119-06894-00

$1.37

7

PIN, DOWEL (614)

93606-12019-00

$3.05

8

DUCT, IMPELLER SET

99999-04430-00

Unavailable

9

FILTER

66V-46882-00-00

$5.91

10

. O-RING

66V-42414-00-00

$5.18

11

COVER, WATER INLET 1

66V-45214-00-00

Unavailable

12

BOLT,WITH WASHER

90119-06898-00

$3.43

13

BEARING

93306-27211-00

$37.41

14

SPACER 1

65V-45538-00-00

$29.88

15

BEARING (6K8)

93306-205U1-00

$19.73

16

SHAFT, DRIVE 4

6D3-45514-00-00

$216.65

17

. OIL SEAL

93101-21001-00

$19.63

18

. OIL SEAL

93101-21002-00

$19.63

19

SHAFT, DRIVE

6D3-45511-00-00

$374.23

20

CAP

6B6-51326-10-00

$40.89

21

. O-RING

93210-464A3-00

$2.95

22

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

23

CAP, IMPELLER

6D3-R1319-00-00

$2.00

24

IMPELLER

6D3-R1321-03-00

Unavailable

25

NOZZLE

6D3-R1318-01-00

Unavailable

26

HOSE (L260)

90445-16006-00

$10.99

27

BAND, HOSE 18

90601-118UF-00

$2.07

28

HOSE (L355)

90445-14008-00

$10.99

29

HOSE (L320)

90446-20MF5-00

$4.57

30

CLAMP

90465-10098-00

$1.68

31

BOLT, WITH WASHER

90119-10807-00

$5.44

32

BRACKET 1

6D3-R1341-00-00

$48.47

33

NOZZLE, DEFLECTOR

6D3-R1313-00-00

Unavailable

34

BOLT, WITH WASHER

90119-08841-00

$1.01

35

COLLAR(6R7)

90387-08M06-00

Unavailable

36

PLATE 2, KIT W/ SPACERS

F1K-U273B-06-KT

Unavailable

37

BOLT, WITH WASHER

90119-08829-00

$3.88

38

BRACKET 2

F1G-U8572-02-00

$18.66

39

BRACKET, 3

F1K-U8577-01-00

$22.97

40

BOLT, WITH WASHER

90119-06896-00

$5.03

41

BOLT, WITH WASHER

90119-10809-00

Unavailable

42

BRACKET

F1K-U7557-01-00

$28.02

43

BOLT

90109-08043-00

$4.09

44

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

45

GASKET

90430-12002-00

$1.81

46

PLATE, RUBBER 1

F1K-U757E-01-00

$14.38

47

PLATE, RUBBER 2

F1K-U757F-01-00

$17.22

48

COLLAR

90387-06080-00

$7.27

49

BOLT, WITH WASHER

90119-06827-00

Unavailable

50

BOLT

90101-069U0-00

$1.23

51

NUT, NYLON

9572R-06300-00

$2.80

52

BOLT, WITH WASHER

90119-08800-00

$4.09
