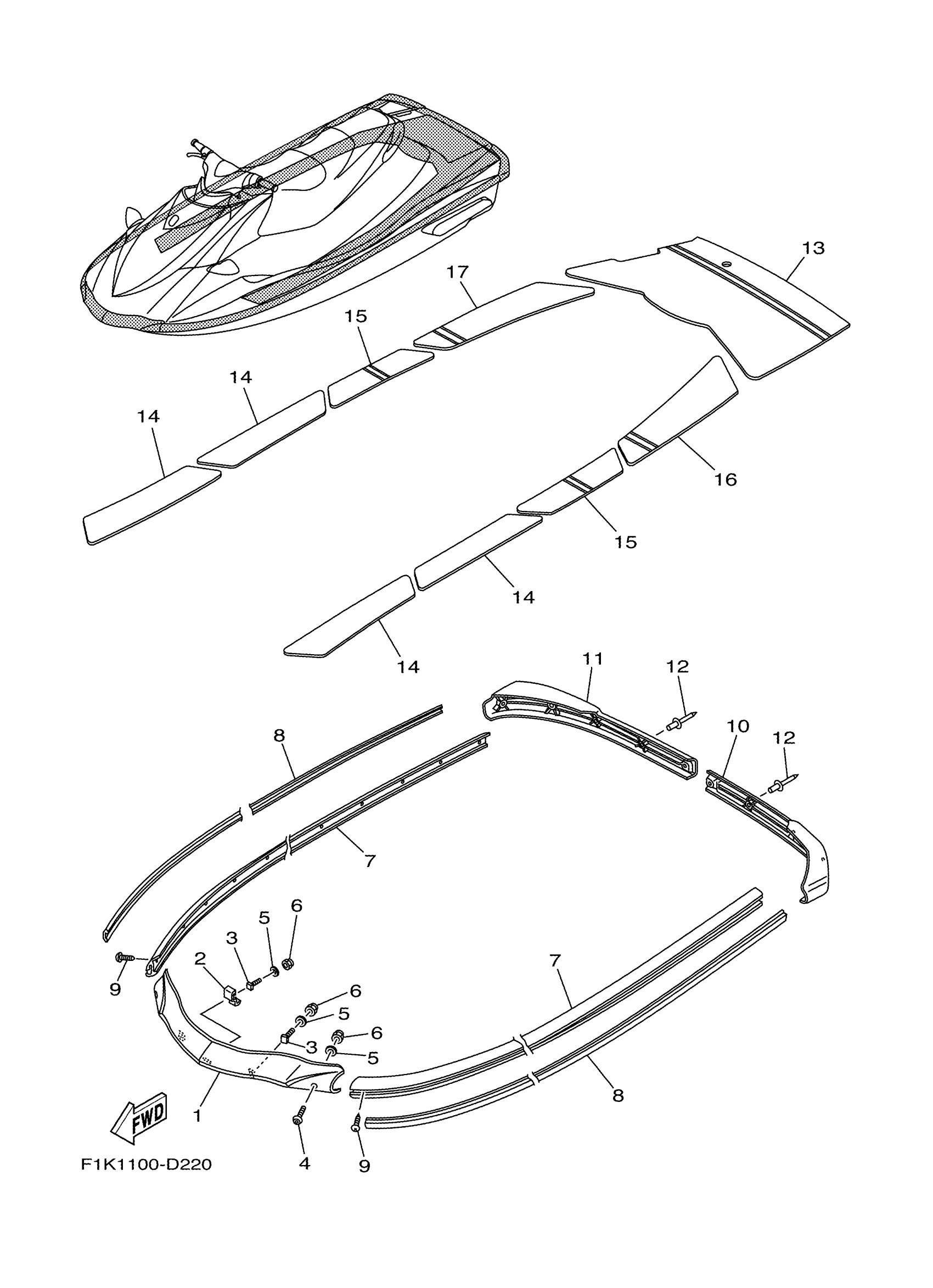

Yamaha VX1100BGB (WaveRunner VX Deluxe) F1KT 2008 GUNWALE MAT Diagram
#
Description
Price
1
BOW GUNWALE COMP.
F1K-U2501-02-00
Unavailable
1
BOW GUNWALE COMP.
F1K-U2501-10-00
Unavailable
2
PLATE
F1K-U2521-02-00
Unavailable
3
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
4
BOLT,HEX. SOCKET BUTTON
90111-06803-00
Unavailable
5
WASHER
9299R-06200-00
Unavailable
6
NUT, NYLON
9572R-06300-00
Unavailable
7
GUNWALE, SIDE
F1K-U2512-03-00
Unavailable
7
GUNWALE, SIDE
F1K-U2512-10-00
Unavailable
8
INNER,GUNWALE
F1K-U2519-02-00
Unavailable
8
INNER,GUNWALE (BLACK)
F1K-U2519-20-00
Unavailable
9
SCREW,TAPPING
90169-059U1-00
Unavailable
10
GUNWALE, STERN 1
F1K-U251D-01-00
Unavailable
10
GUNWALE, STERN 1
F1K-U251D-10-00
Unavailable
11
GUNWALE, STERN 2
F1K-U251E-01-00
Unavailable
11
GUNWALE, STERN 2
F1K-U251E-10-00
Unavailable
12
RIVET, BLIND
90267-47801-00
Unavailable
13
MAT, UPPER
F1K-U3581-10-00
Unavailable
13
MAT, UPPER
F1K-U3581-20-00
Unavailable
14
MAT, STEP 1
F1K-U351H-10-00
Unavailable
14
MAT, STEP 1
F1K-U351H-20-00
Unavailable
15
MAT, STEP 2
F1K-U351J-10-00
Unavailable
15
MAT, STEP 2
F1K-U351J-20-00
Unavailable
16
MAT, STEP 3
F1K-U351K-10-00
Unavailable
16
MAT, STEP 3
F1K-U351K-20-00
Unavailable
17
MAT, STEP 4
F1K-U351M-10-00
Unavailable
17
MAT, STEP 4
F1K-U351M-20-00
Unavailable
