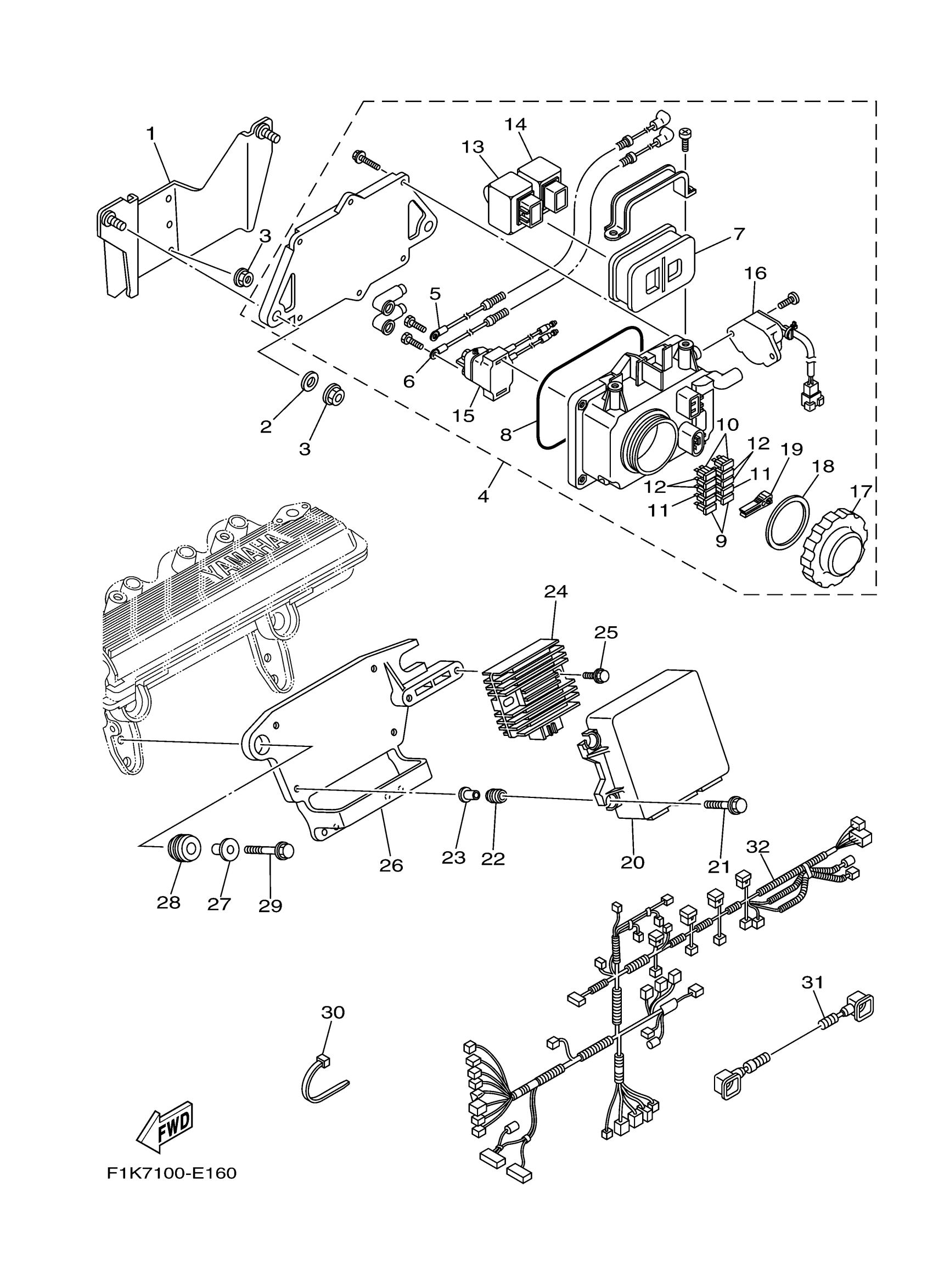

Yamaha VX1100BF (WaveRunner VX Deluxe) F1KD 2007 ELECTRICAL 1 Diagram
#
1
BRACKET, ELECTRIC BOX
F1K-U815D-00-00
Unavailable
2
WASHER, PLATE
90201-099U3-00
Unavailable
3
NUT, NYLON (6J8)
95780-08300-00
Unavailable
4
FUSE BOX ASSY
6BU-82170-01-00
Unavailable
5
. WIRE, PLUS LEAD
6D3-82115-00-00
Unavailable
6
. WIRE, LEAD
6D3-82117-00-00
Unavailable
7
. DAMPER
6D3-82157-00-00
Unavailable
8
. GASKET, TERMINAL
6D3-81921-00-00
Unavailable
9
FUSE
5JJ-82151-20-00
$7.99
10
FUSE
5JJ-82151-60-00
$7.99
11
. FUSE (3A)
67F-82151-30-00
Unavailable
12
. FUSE (10A)
67F-82151-40-00
Unavailable
13
RELAY ASSY
60E-81950-00-00
Unavailable
14
. RELAY ASSY
68V-81950-00-00
Unavailable
15
. STARTER RELAY ASSY
6B6-81940-00-00
Unavailable
16
SWITCH ASSY
60E-8259E-00-00
Unavailable
17
. CAP
66V-8132W-00-00
Unavailable
18
. GASKET
66V-81844-00-00
Unavailable
19
. PULLER, FUSE
67F-2812A-00-00
Unavailable
20
ENGINE CONTROL UNIT ASSY
6D3-8591A-A0-00
Unavailable
21
BOLT, WITH WASHER
90119-06311-00
Unavailable
22
DAMPER, IGNITION C
6A0-82317-01-00
Unavailable
23
. COLLAR
90387-06119-00
Unavailable
24
RECTIFIER & REGULATOR ASSY
6S8-81960-00-00
Unavailable
25
BOLT, WITH WASHER
90119-06311-00
Unavailable
26
BRACKET, UNIT
6D3-85991-01-00
Unavailable
27
COLLAR
90387-08M37-00
Unavailable
28
GROMMET
90480-22M15-00
Unavailable
29
BOLT, WITH WASHER
90119-08187-00
Unavailable
30
CLAMP(3XW)
90464-35132-00
Unavailable
31
WIRE, MINUS LEAD
6D3-82116-00-00
Unavailable
32
WIRE HARNESS ASSY 1
6D3-8259L-A4-00
Unavailable
