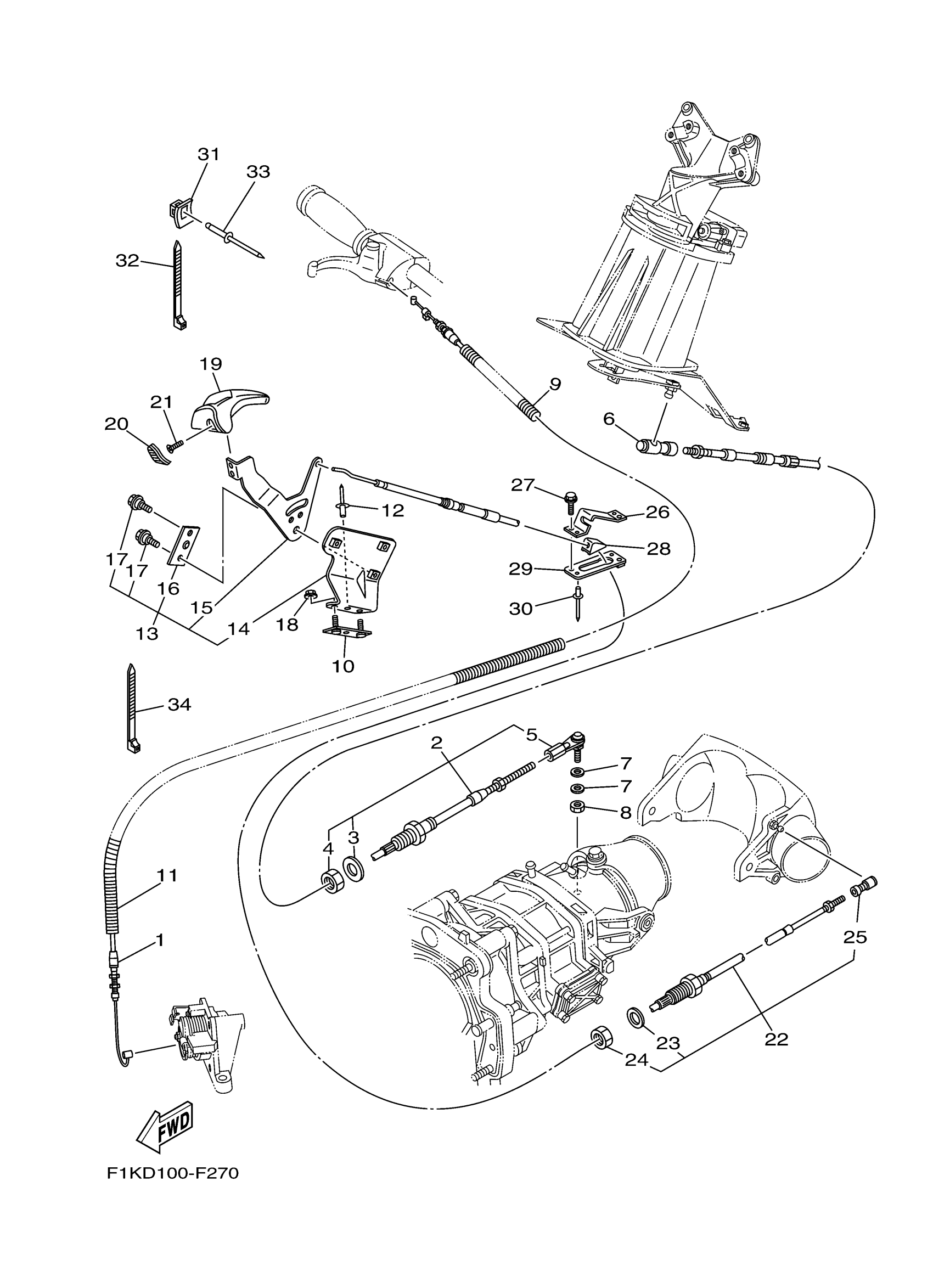

Yamaha VX1100BF (WaveRunner VX Deluxe) F1KD 2007 CONTROL CABLE Diagram

#

Description
Price

1

CABLE, THROTTLE 1

6D3-26311-02-00

$113.62

2

CABLE, STEERING

F1K-61481-03-00

Unavailable

3

. PACKING C

F1B-61438-00-00

$2.72

4

NUT

F1B-6151S-01-00

$14.31

5

. STUD, JOINT BALL

F1B-61461-02-00

$95.44

6

SHAFT,JOINT BALL

GK5-U146F-00-00

$23.31

7

WASHER, PLATE

90201-06906-00

$2.80

8

NUT

9538R-06700-00

$1.01

9

TUBE

90447-06802-00

Unavailable

10

BRACKET

F1K-U826C-03-00

$12.86

11

TUBE

90447-06800-00

Unavailable

12

RIVET, BLIND

90267-489U6-00

$1.37

13

REMOCON. LEVER ASSY.

F1K-U134A-00-00

Unavailable

14

. BRACKET

F1K-U1794-02-00

Unavailable

15

. LEVER

F1K-U151N-02-00

Unavailable

16

. DETENT PLATE

F1K-U152N-00-00

$24.23

17

. BOLT

F1K-U1355-00-00

$5.53

18

NUT, NYLON (6J8)

95780-08300-00

$10.55

19

GRIP

F1K-U2714-02-00

$45.44

20

DAMPER, STOPPER

F1K-U1336-00-00

$39.38

21

SCREW, COUNTERSUNK

90151-05802-00

$2.80

22

CABLE,REVERSE

F1K-6149C-01-00

Unavailable

23

. PACKING C

F1B-61438-00-00

$2.72

24

NUT

F1B-6151S-01-00

$14.31

25

. BALL JOINT ASSY

F1B-61460-00-00

$50.99

26

BRACKET, STOPPER CABLE

F1K-U1467-11-00

$29.53

27

BOLT, WITH WASHER

90119-06878-00

$3.43

28

PACKING, CABLE

F1K-U146G-01-00

$30.29

29

PLATE, STOPPER

F1K-U1316-02-00

$5.15

30

RIVET, BLIND

90267-489U6-00

$1.37

31

CLAMP COMP (EU0)

90600-91736-00

Unavailable

32

CLAMP

90464-32801-00

$1.23

33

RIVET, BLIND

90267-489U6-00

$1.37

34

CLAMP(JN6)

90464-40825-00

Unavailable
