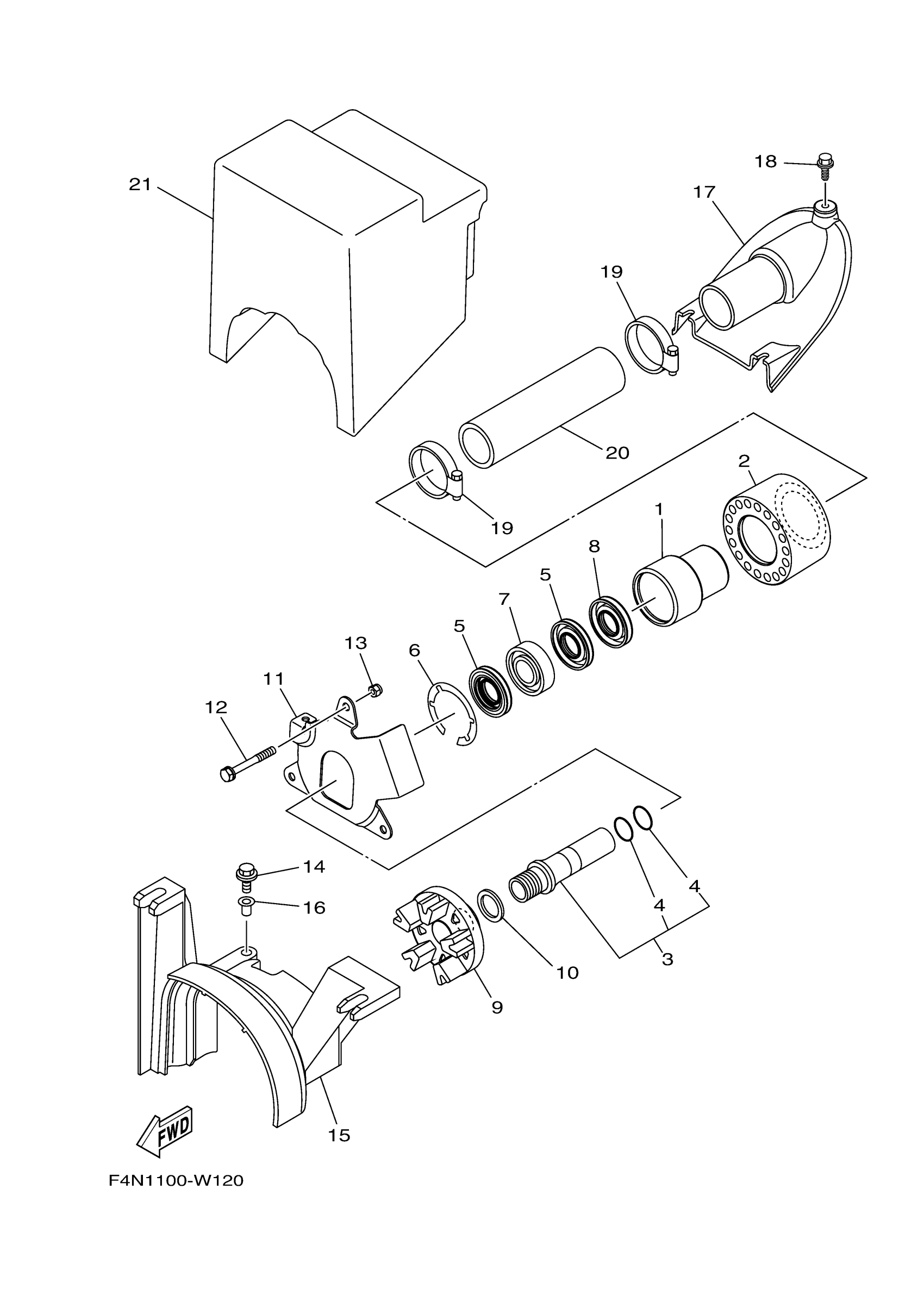

Yamaha VX1050GY (VX-C) F6G3 2023 JET UNIT 2 Diagram

#

Description
Price

1

HOUSING, BEARING

6JF-G5332-00-00

$41.63

2

DAMPER

6GA-G5235-00-00

$17.94

3

SHAFT, COUPLER

60E-XR132-01-00

$133.56

4

. O-RING

93210-19812-00

$4.46

5

OIL SEAL(62T)

93101-25M55-00

$24.36

6

CIRCLIP(26H)

99009-52500-00

$10.02

7

BEARING

93306-205XG-00

$8.61

8

OIL SEAL

93101-24001-00

$30.69

9

FLANGE, COUPLING 1

6EY-G5593-00-00

$26.74

10

WASHER, PLATE

90201-27008-00

Unavailable

11

PLATE

6JF-G5321-00-00

$19.68

12

BOLT, WITH WASHER

90119-069UX-00

$2.66

13

NUT, NYLON

9572R-06300-00

$2.80

14

BOLT, WITH WASHER

90119-06892-00

$3.79

15

COVER

6EY-R1381-00-00

$6.21

16

COLLAR

90387-06289-00

Unavailable

17

JOINT, PIPE

F2N-U883E-00-00

$8.61

18

BOLT

90109-06832-00

$2.44

19

BAND, HOSE 55

90601-155U4-00

$5.87

20

PIPE 1

F2M-U883B-00-00

$19.38

21

PAD

F1K-U892D-00-00

$23.47
