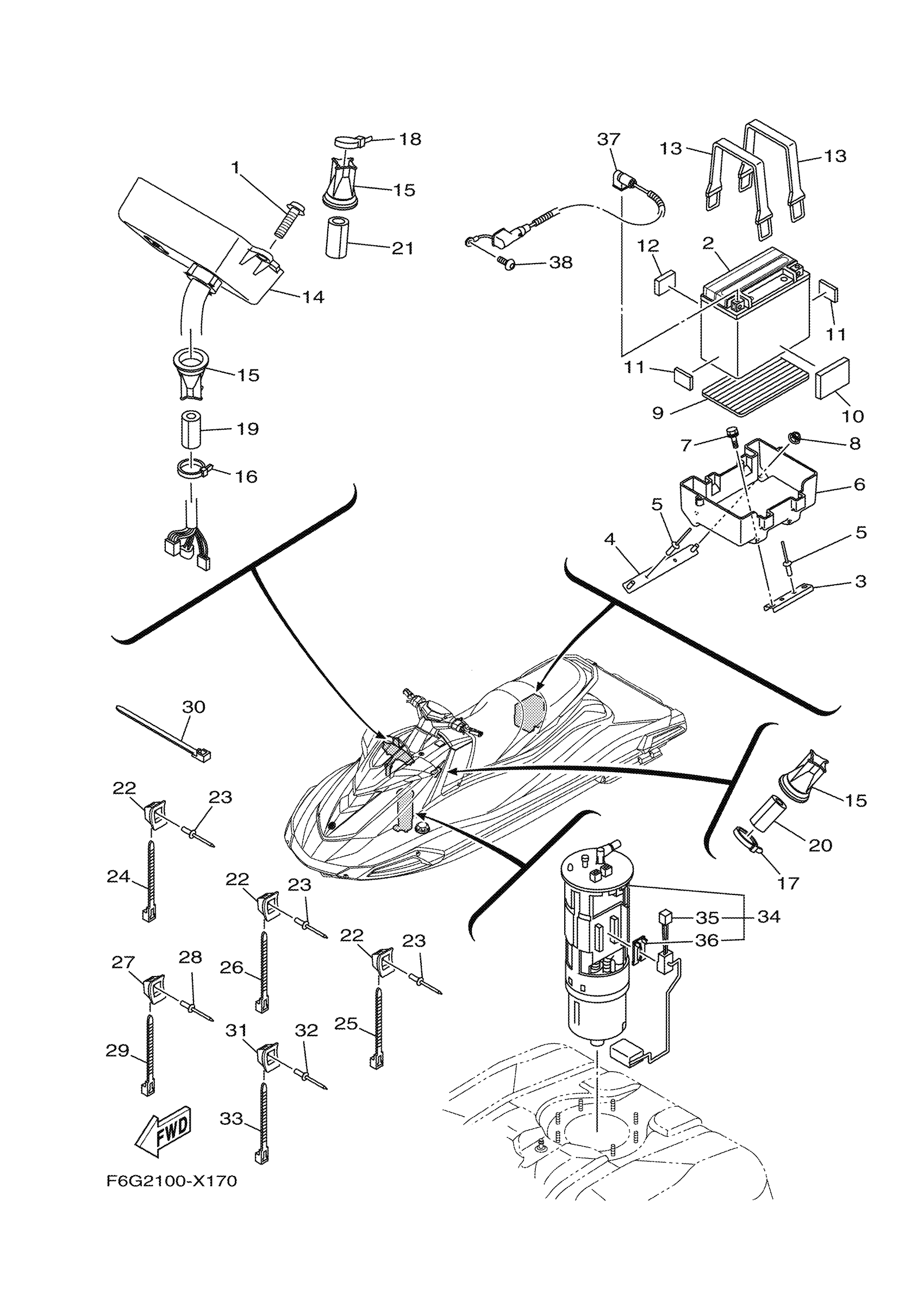

Yamaha VX1050GY (VX-C) F6G3 2023 ELECTRICAL 3 Diagram

#

Description
Price

1

SCREW

F3X-U7823-02-00

$1.37

2

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$163.95

3

PLATE, BASE 2

F2S-U8592-00-00

$5.83

4

PLATE, BASE 3

F2S-U8593-00-00

$5.45

5

RIVET (EU0)

90267-48938-00

$5.00

6

CASE, BATTERY

F2S-U8211-00-00

$9.62

7

BOLT, WITH WASHER

90119-06820-00

$3.52

8

NUT, LOCK

F2N-U142L-00-00

$1.00

9

PAD, BATTERY

F1S-U8221-00-00

$2.75

10

MAT 2

F1W-U759C-01-00

$2.50

11

PAD, BATTERY

EU0-U8221-31-00

$1.65

12

PACKING

F2C-U1743-00-00

$1.87

13

BAND, BATTERY 1

F4P-U821D-00-00

$12.20

14

METER ASSY

F6G-U820A-00-00

$124.93

15

GROMMET

F3J-U822E-01-00

$5.59

16

CLAMP

90464-32801-00

$1.23

17

CLAMP

90464-32801-00

$1.23

18

CLAMP

90464-32801-00

$1.23

19

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

20

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

21

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

22

BASE, CLAMP

F1W-U828M-00-00

$1.23

23

RIVET, BLIND

90267-48806-00

$2.00

24

CLAMP

90464-32801-00

$1.23

25

CLAMP

90464-32801-00

$1.23

26

CLAMP

90464-32801-00

$1.23

27

BASE, CLAMP

F1W-U828M-00-00

$1.23

28

RIVET, BLIND

90267-48806-00

$2.00

29

CLAMP

F2C-U4256-00-00

$3.26

30

CLAMP

F2C-U4256-00-00

$3.26

31

BASE, CLAMP

F1W-U828M-00-00

$1.23

32

RIVET, BLIND

90267-48806-00

$2.00

33

CLAMP

90464-32801-00

$1.23

34

FUEL PUMP COMP.

6S5-13907-05-00

$1,050.38

35

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

36

DAMPER, STOPPER

60E-82556-10-00

$18.49

37

WIRE, MINUS LEAD

6JS-82116-00-00

$42.05

38

BOLT, WITH WASHER

97513-08514-00

$1.36
