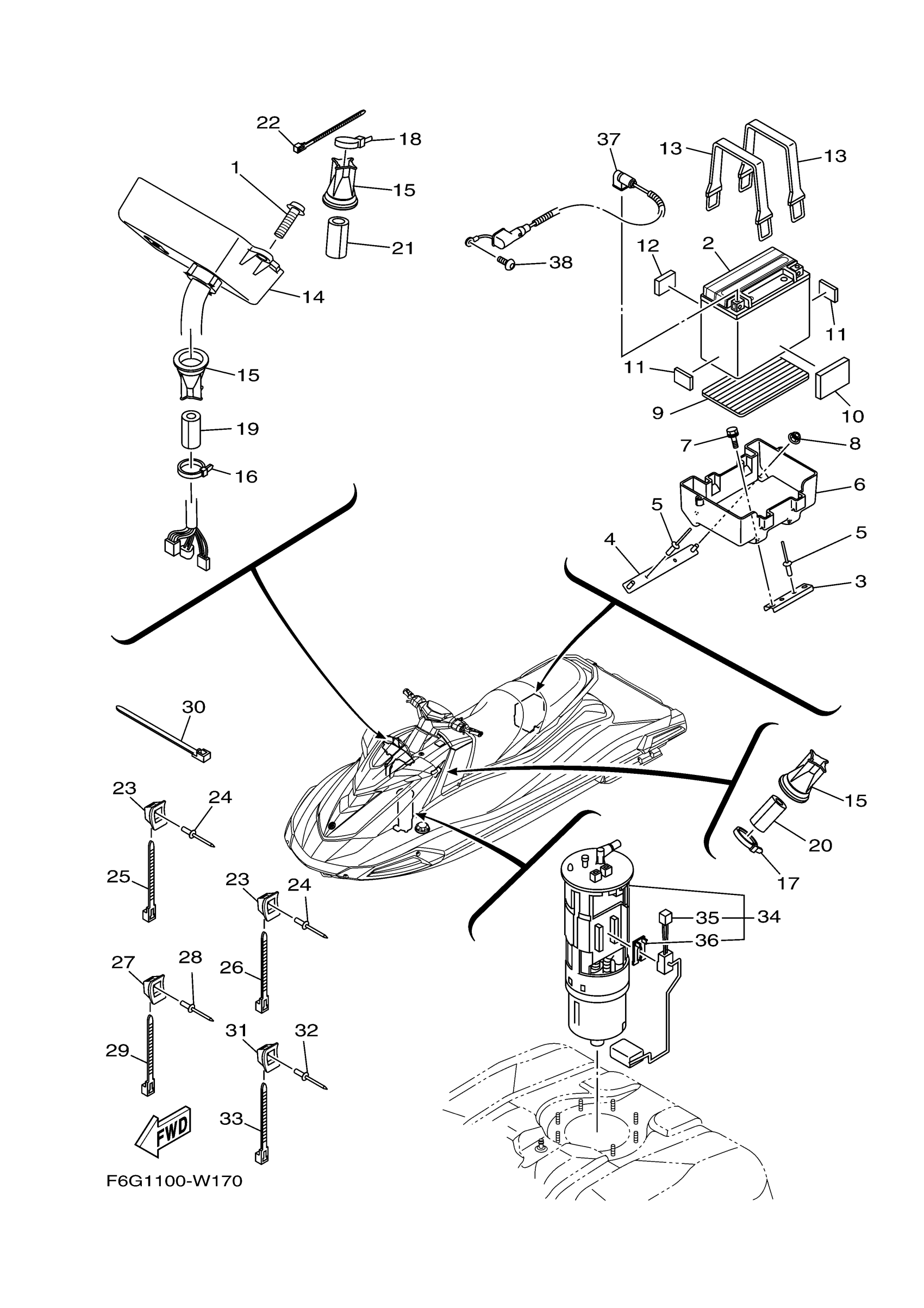

Yamaha VX1050GW (VX-C) F6G1 2021 ELECTRICAL 3 Diagram

#

Description
Price

1

SCREW

F3X-U7823-02-00

Unavailable

2

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

Unavailable

3

PLATE, BASE 2

F2S-U8592-00-00

Unavailable

4

PLATE, BASE 3

F2S-U8593-00-00

Unavailable

5

RIVET (EU0)

90267-48938-00

Unavailable

6

CASE, BATTERY

F2S-U8211-00-00

Unavailable

7

BOLT, WITH WASHER

90119-06820-00

Unavailable

8

NUT, LOCK

F2N-U142L-00-00

Unavailable

9

PAD, BATTERY

F1S-U8221-00-00

Unavailable

10

MAT 2

F1W-U759C-01-00

Unavailable

11

PAD, BATTERY

EU0-U8221-31-00

$2.99

12

PACKING

F2C-U1743-00-00

Unavailable

13

BAND, BATTERY 1

F4P-U821D-00-00

Unavailable

14

METER ASSY

F6G-U820A-00-00

Unavailable

15

GROMMET

F3J-U822E-01-00

Unavailable

16

CLAMP

90464-32801-00

Unavailable

17

CLAMP

90464-32801-00

Unavailable

18

CLAMP

90464-32801-00

Unavailable

19

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

20

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

21

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

22

CLAMP(JN6)

90464-31827-00

Unavailable

23

BASE, CLAMP

F1W-U828M-00-00

Unavailable

24

RIVET, BLIND

90267-48806-00

Unavailable

25

CLAMP

90464-32801-00

Unavailable

26

CLAMP

90464-32801-00

Unavailable

27

BASE, CLAMP

F1W-U828M-00-00

Unavailable

28

RIVET, BLIND

90267-48806-00

Unavailable

29

CLAMP

F2C-U4256-00-00

Unavailable

30

CLAMP

F2C-U4256-00-00

Unavailable

31

BASE, CLAMP

F1W-U828M-00-00

Unavailable

32

RIVET, BLIND

90267-48806-00

Unavailable

33

CLAMP

90464-32801-00

Unavailable

34

FUEL PUMP COMP.

6S5-13907-05-00

Unavailable

35

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

36

DAMPER, STOPPER

60E-82556-10-00

Unavailable

37

WIRE, MINUS LEAD

6JS-82116-00-00

Unavailable

38

BOLT, WITH WASHER

97513-08514-00

Unavailable
