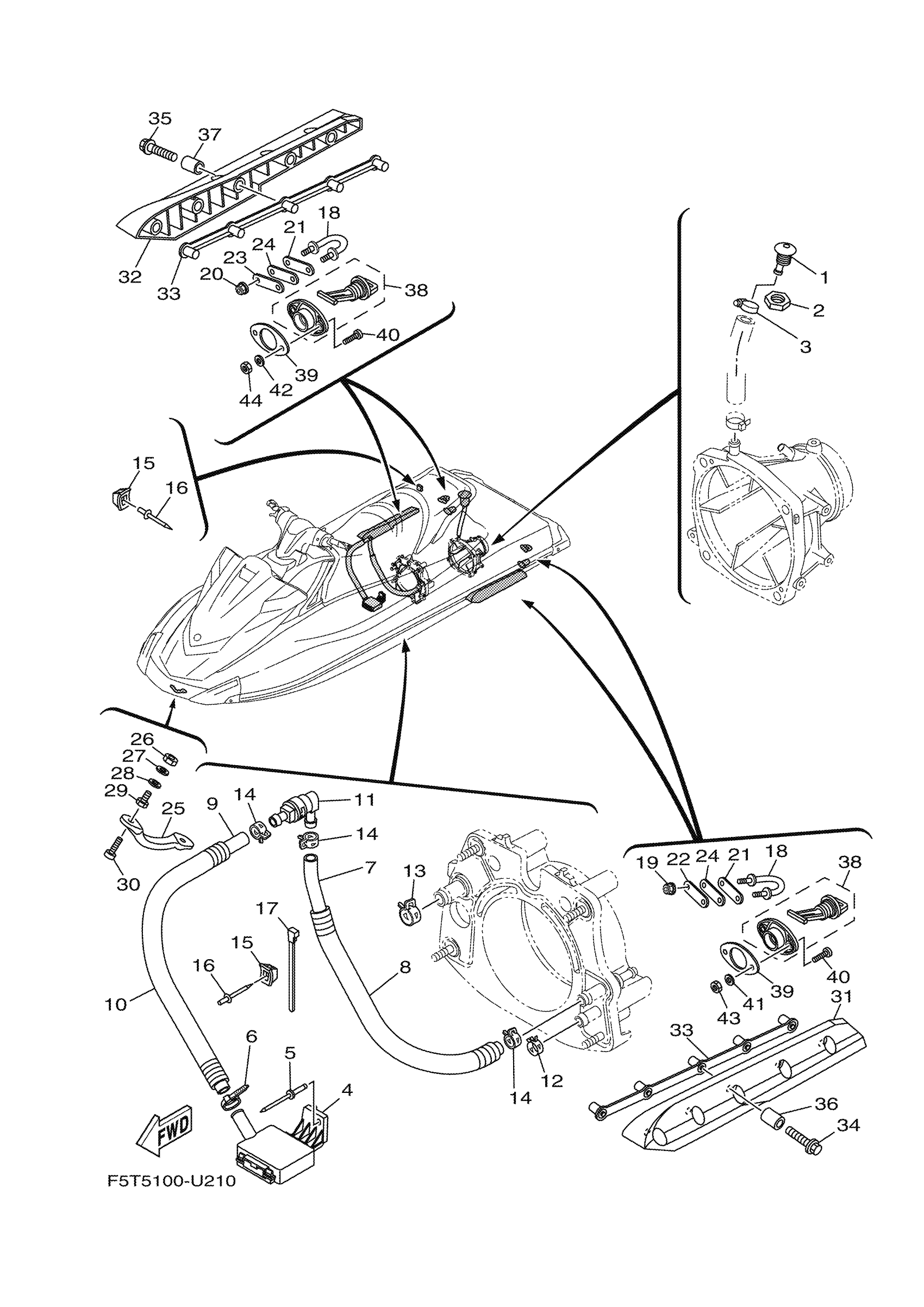

Yamaha VX1050GV (VX-C) F5TA 2020 HULL & DECK Diagram

#

Description
Price

1

SPOUT

F1W-U269B-00-00

Unavailable

2

NUT

EU0-61652-00-00

Unavailable

3

BAND, HOSE 18

90601-118UF-00

Unavailable

4

STRAINER, BILGE

F1B-U761D-02-00

Unavailable

5

RIVET, BLIND

90267-489U8-00

Unavailable

6

CLAMP

90465-10098-00

Unavailable

7

HOSE 2

6EY-U771G-00-00

Unavailable

8

TUBE,2

6EY-U773E-00-00

Unavailable

9

HOSE (L860)

90445-20804-00

Unavailable

10

TUBE,2

6EX-U773E-00-00

Unavailable

11

JOINT, HOSE

68N-5112T-00-00

Unavailable

12

CLIP

90467-200A3-00

Unavailable

13

CLIP

90467-240A3-00

Unavailable

14

CLIP

90467-190A2-00

Unavailable

15

BASE, CLAMP

F1W-U828M-00-00

Unavailable

16

RIVET, BLIND

90267-489U6-00

Unavailable

17

CLAMP

90464-32801-00

Unavailable

18

STERN EYE

F2N-U1628-02-00

Unavailable

19

NUT, NYLON (6J8)

95780-08300-00

Unavailable

20

NUT, NYLON (6J8)

95780-08300-00

Unavailable

21

PLATE A

GP7-U4953-10-00

Unavailable

22

PLATE A

GP7-U4953-10-00

Unavailable

23

PLATE A

GP7-U4953-10-00

Unavailable

24

PACKING

F1B-U1653-03-00

Unavailable

25

BOW EYE 1

F1K-61624-00-00

Unavailable

26

NUT.HEX.(COARS)

99780-12600-00

Unavailable

27

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

28

WASHER

F0X-61637-00-00

Unavailable

29

NUT

F0X-61652-01-00

Unavailable

30

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

Unavailable

31

STABILIZER LH

F1S-U883N-01-00

Unavailable

32

STABILIZER RH

F1S-U883P-01-00

Unavailable

33

BRACKET,STABILIZER

F1X-U883T-02-00

Unavailable

34

BOLT,WASHER BASED

90105-088F9-00

Unavailable

35

BOLT,WASHER BASED

90105-088F9-00

Unavailable

36

SPACER

F2N-U8169-10-00

Unavailable

37

SPACER

F2N-U8169-10-00

Unavailable

38

DRAIN PLUG ASSY

F1S-U2280-02-00

Unavailable

39

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

40

SCREW, PAN HEAD

9788R-05025-00

Unavailable

41

WASHER

9299R-05200-00

Unavailable

42

WASHER

9299R-05200-00

Unavailable

43

NUT, FLANGE

9572R-05300-00

Unavailable

44

NUT, FLANGE

9572R-05300-00

Unavailable
