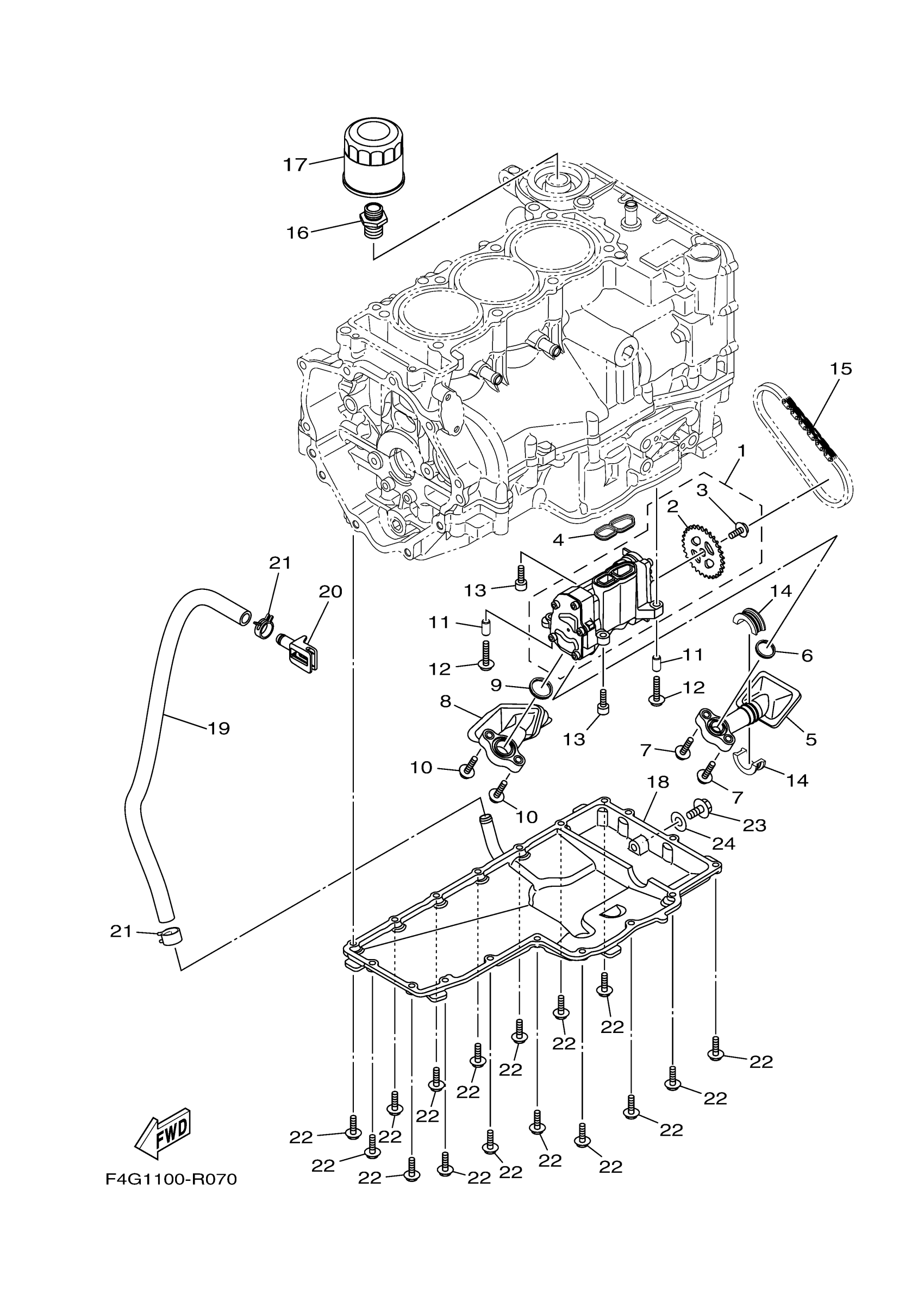

Yamaha VX1050GU (VX-C) F5T5 2019 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

6EY-13300-00-00

$236.35

2

. SPROCKET, DRIVEN

6EY-13355-00-00

$33.99

3

SCREW

90149-06190-00

Unavailable

4

. GASKET

6EY-13563-00-00

$3.64

5

OIL PIPE COMP. 1

6EY-13405-00-00

$24.23

6

. GASKET

6EY-13477-00-00

$3.18

7

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

$7.60

8

OIL PIPE COMP. 2

6EY-13406-00-00

$46.95

9

. GASKET

6EY-13476-00-00

$3.18

10

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

$7.60

11

PIN, DOWEL(3XW)

91808-16023-00

$5.26

12

BOLT, HEXAGON SOCKET HEAD

90110-06287-00

$0.54

13

BOLT, HEXAGON SOCKET HEAD

90110-06335-00

$4.82

14

GROMMET

6EY-15486-00-00

$3.64

15

CHAIN(4KM)

94580-25060-00

$4.07

16

BOLT, UNION

90401-20008-00

Unavailable

17

ELEMENT ASSY, OIL

5GH-13440-90-00

Unavailable

18

COVER, STRAINER SET

99999-04532-00

Unavailable

19

HOSE (L500)

90445-18M06-00

Unavailable

20

PLUG

6EY-13455-00-00

$7.27

21

CLIP

90467-170A5-00

$4.55

22

BOLT, FLANGE(3DM)

95024-06020-00

Unavailable

23

BOLT, FLANGE(4HM)

95814-08020-00

Unavailable

24

GASKET(3GH)

90430-08209-00

Unavailable
