2019 Yamaha VX-C (VX1050GU) Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2019 Yamaha VX-C (VX1050GU), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

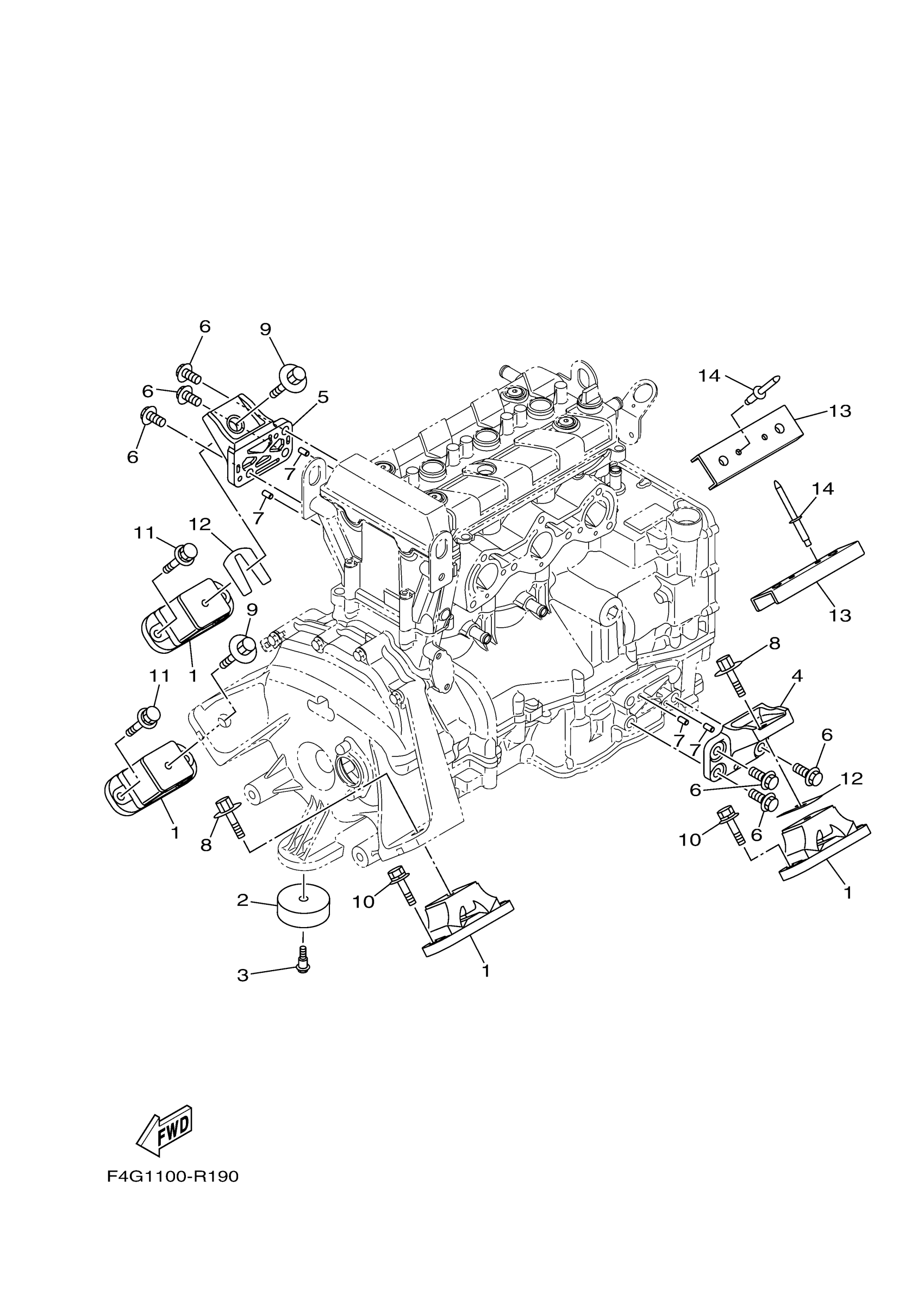

2019 Yamaha VX-C (VX1050GU) Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MOUNT RUBBER

67X-44517-10-00

1

$100.26

In stock

2

STOPPER, LOWER MOUNT RUBBER

6EY-44574-00-00

1

$11.99

In stock

3

BOLT

90109-06M92-00

1

$5.38

In stock

4

BRACKET 1

6EY-41661-10-00

1

$46.49

In stock

5

BRACKET 2

6EY-41662-00-00

1

$46.49

In stock

6

—

$10.68

In stock

7

PIN, DOWEL (614)

93606-12019-00

1
Out of stock

8

BOLT, WITH WASHER

90119-08860-00

1

$4.38

In stock

9

BOLT, WITH WASHER

90119-08860-00

1

$4.38

In stock

10

BOLT, WITH WASHER

90119-08829-00

1

$4.38

In stock

11

BOLT, WITH WASHER

90119-08829-00

1

$4.38

In stock

12

SHIM (T=0.1)

EU0-67354-A0-00

1

$4.45

In stock

12

SHIM (T=0.3)

EU0-67354-B0-00

1

$5.34

In stock

12

SHIM (T=0.5)

EU0-67354-C0-00

1

$4.45

In stock

12

SHIM (T=1.0)

EU0-67354-D0-00

1

$4.00

In stock

12

SHIM (T=2.0)

EU0-67354-E0-00

1

$4.00

In stock

13

PLATE

F2S-U732B-00-00

1
Out of stock

14

RIVET, BLIND

90267-489U2-00

1

$1.62

In stock
