2019 Yamaha VX-C (VX1050GU) Engine Hatch 2 Diagram

← All diagrams

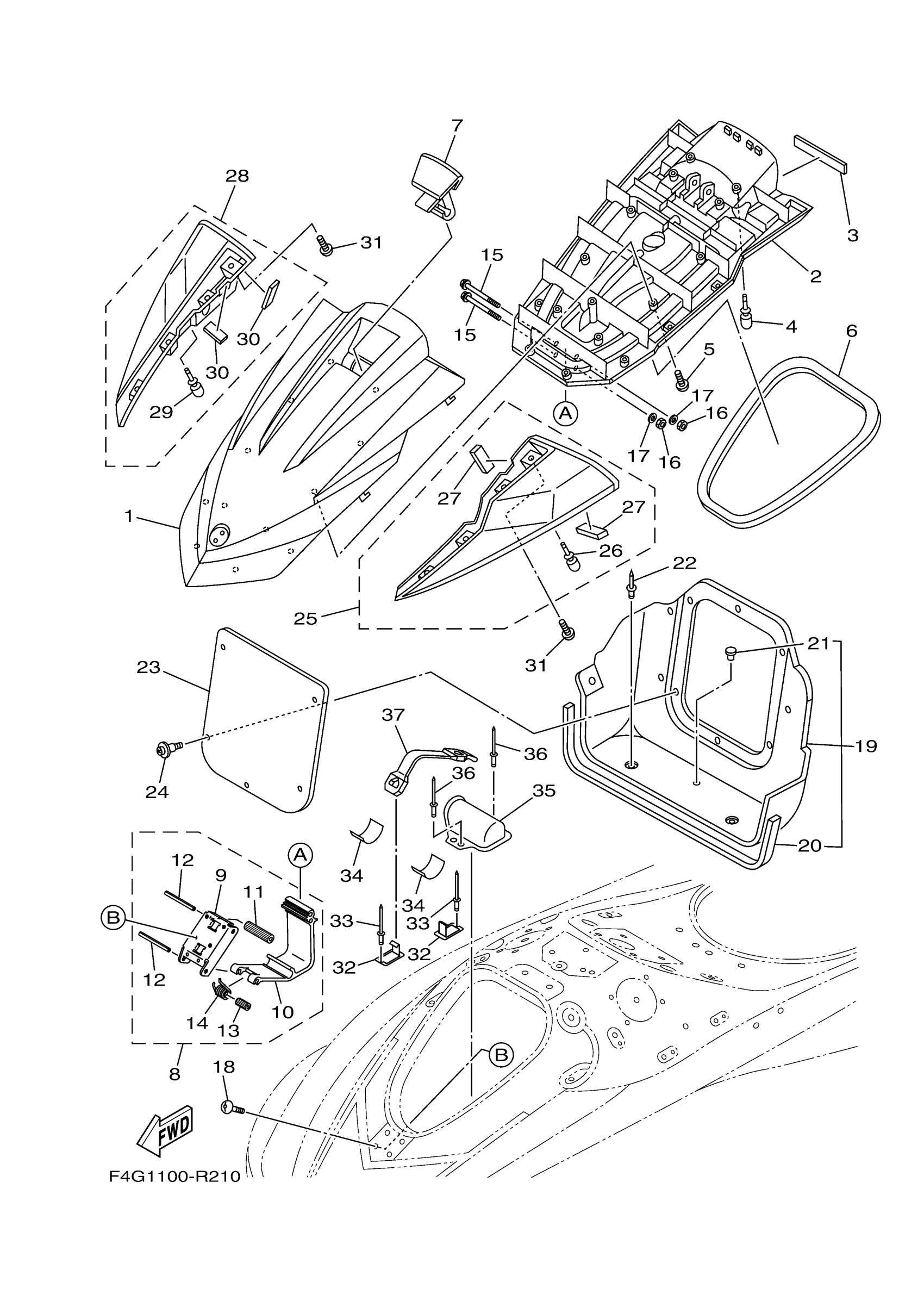

Find the part on the Engine Hatch 2 diagram for your 2019 Yamaha VX-C (VX1050GU), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2019 Yamaha VX-C (VX1050GU) Engine Hatch 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LID, ENGINE ROOM (VLGS6)

F2X-U517B-10-P4

1
Out of stock

2

INNER, ENGINE HATCH

F2X-U519G-10-00

1
Out of stock

3

DAMPER 1

F2C-U515D-00-00

1
Out of stock

4

. CUSHION, RUBBER

F1W-U3768-01-00

1
Out of stock

5

SCREW

F2S-U13C1-00-00

1
Out of stock

6

PACKING 1

F2N-U2663-01-00

1
Out of stock

7

LOCK, LID

F2X-U517C-01-00

1
Out of stock

8

HINGE ASSY.

F2X-U515A-01-00

1
Out of stock

9

. PLATE, HINGE LID

F1K-U518E-04-00

1
Out of stock

10

. HINGE, LID

F1K-U517D-05-00

1
Out of stock

11

. ROLLER, DETENT

F2X-U135C-00-00

1
Out of stock

12

PIN, HINGE

F1K-U517R-01-00

1
Out of stock

13

. SPACER 1

F1K-U471E-03-00

1
Out of stock

14

. SPRING, TORSION

F1K-U283B-02-00

1
Out of stock

15

BOLT, FLANGE

90105-06826-00

1
Out of stock

16

NUT, NYLON

9572R-06300-00

1
Out of stock

17

WASHER

9299R-06200-00

1
Out of stock

18

BOLT, HEXAGON SOCKET BUTTON

90111-06873-00

1
Out of stock

19

LOCKER,BOW

F2X-U475B-00-00

1
Out of stock

20

PACKING 4

F2C-U266C-00-00

1
Out of stock

21

. PLUG, BLIND

90605-502U1-00

1
Out of stock

22

RIVET

90269-08801-00

1
Out of stock

23

PLATE, LOKER BOW

F2S-U475F-00-00

1
Out of stock

24

RIVET

90269-08801-00

1
Out of stock

25

MIRROR ASSY. 1

F2X-U590D-70-00

1
Out of stock

26

. CUSHION, RUBBER

F1W-U3768-01-00

1
Out of stock

27

. PACKING 3

F1K-U266B-00-00

1
Out of stock

28

MIRROR ASSY. 2

F2X-U590E-70-00

1
Out of stock

29

. CUSHION, RUBBER

F1W-U3768-01-00

1
Out of stock

30

. PACKING 3

F1K-U266B-00-00

1
Out of stock

31

SCREW

F2X-U13C1-00-00

1
Out of stock

32

HOOK A

F1K-U5772-04-00

1
Out of stock

33

RIVET (EU0)

90267-48938-00

1
Out of stock

34

MAT 2

F1K-U759C-00-00

1
Out of stock

35

BOX, FIRE EXTINGUISHER

F2X-U5983-00-00

1
Out of stock

36

RIVET, BLIND

90267-48802-00

1
Out of stock

37

BAND 1

F2P-U828K-00-00

1
Out of stock
