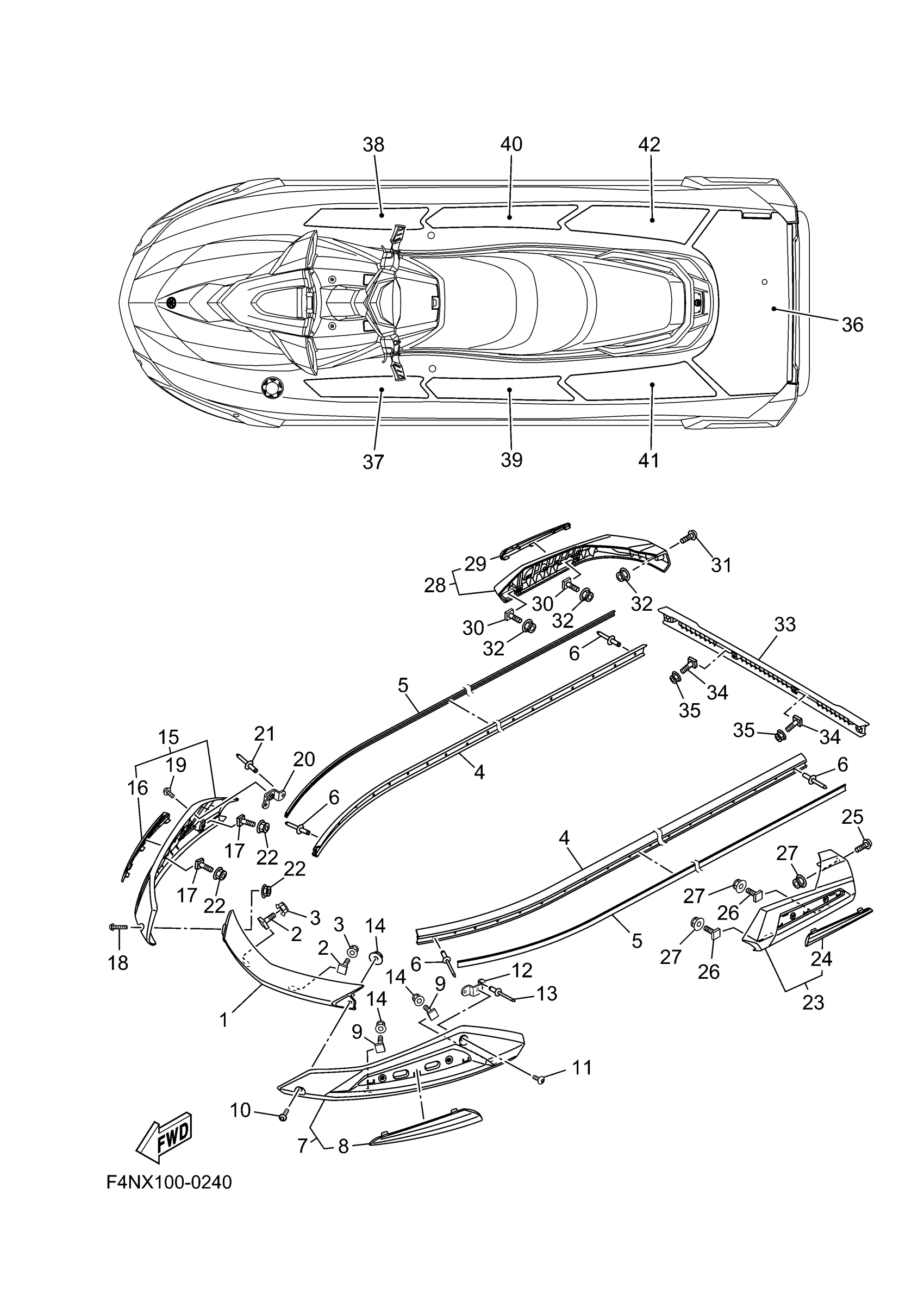

Yamaha VX1050GB (VX-C) F6G5 2025 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW

F4N-U2511-00-00

$24.44

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

NUT, LOCK

F2N-U142L-00-00

$1.00

4

GUNWALE, SIDE

F4N-U2512-00-00

$33.32

5

INNER,GUNWALE

F4N-U2519-70-00

$45.44

6

RIVET

F7K-U1454-00-00

$4.46

7

GUNWALE ASSY.

F4N-U2510-X1-00

$57.56

8

. GUNWALL INSIDE

F4N-U2514-E1-00

$69.68

9

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

10

SCREW

F3X-U7823-12-00

$1.25

11

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

12

BRACKET

F3X-U4949-00-00

$2.52

13

RIVET, BLIND

90267-489U6-00

$1.37

14

NUT, LOCK

F2N-U142L-00-00

$1.00

15

GUNWALE ASSY.

F4N-U2510-Y1-00

$57.56

16

. GUNWALL INSIDE

F4N-U2514-F1-00

$69.68

17

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

18

SCREW

F3X-U7823-12-00

$1.25

19

BOLT,HEX. SOCKET B

90111-06874-00

Unavailable

20

BRACKET

F3X-U4949-00-00

$2.52

21

RIVET, BLIND

90267-489U6-00

$1.37

22

NUT, LOCK

F2N-U142L-00-00

$1.00

23

STERN GUNWALE COMP.

F4N-U2504-X1-00

$45.44

24

. INNER GUNWALE, AFT

F4N-U255C-E1-00

$19.68

25

SCREW

F4P-U7823-00-00

$1.37

26

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

27

NUT, LOCK

F2N-U142L-00-00

$1.00

28

STERN GUNWALE COMP.

F4N-U2504-Y1-00

$45.44

29

. INNER GUNWALE, AFT

F4N-U255C-F1-00

$12.11

30

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

31

SCREW

F4P-U7823-00-00

$1.37

32

NUT, LOCK

F2N-U142L-00-00

$1.00

33

COVER, GUNWALE 1

F4P-U252C-02-00

Unavailable

34

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

35

NUT, LOCK

F2N-U142L-00-00

$1.00

36

MAT, UPPER

F4N-U3581-00-00

$68.93

37

MAT, STEP 1

F4N-U351H-00-00

$12.86

38

MAT, STEP 2

F4N-U351J-00-00

$18.17

39

MAT, STEP 3

F4N-U351K-00-00

$15.89

40

MAT, STEP 4

F4N-U351M-00-00

$15.89

41

MAT, STEP 5

F4N-U351N-00-00

$24.23

42

MAT, STEP 6

F4N-U351P-00-00

$24.23
