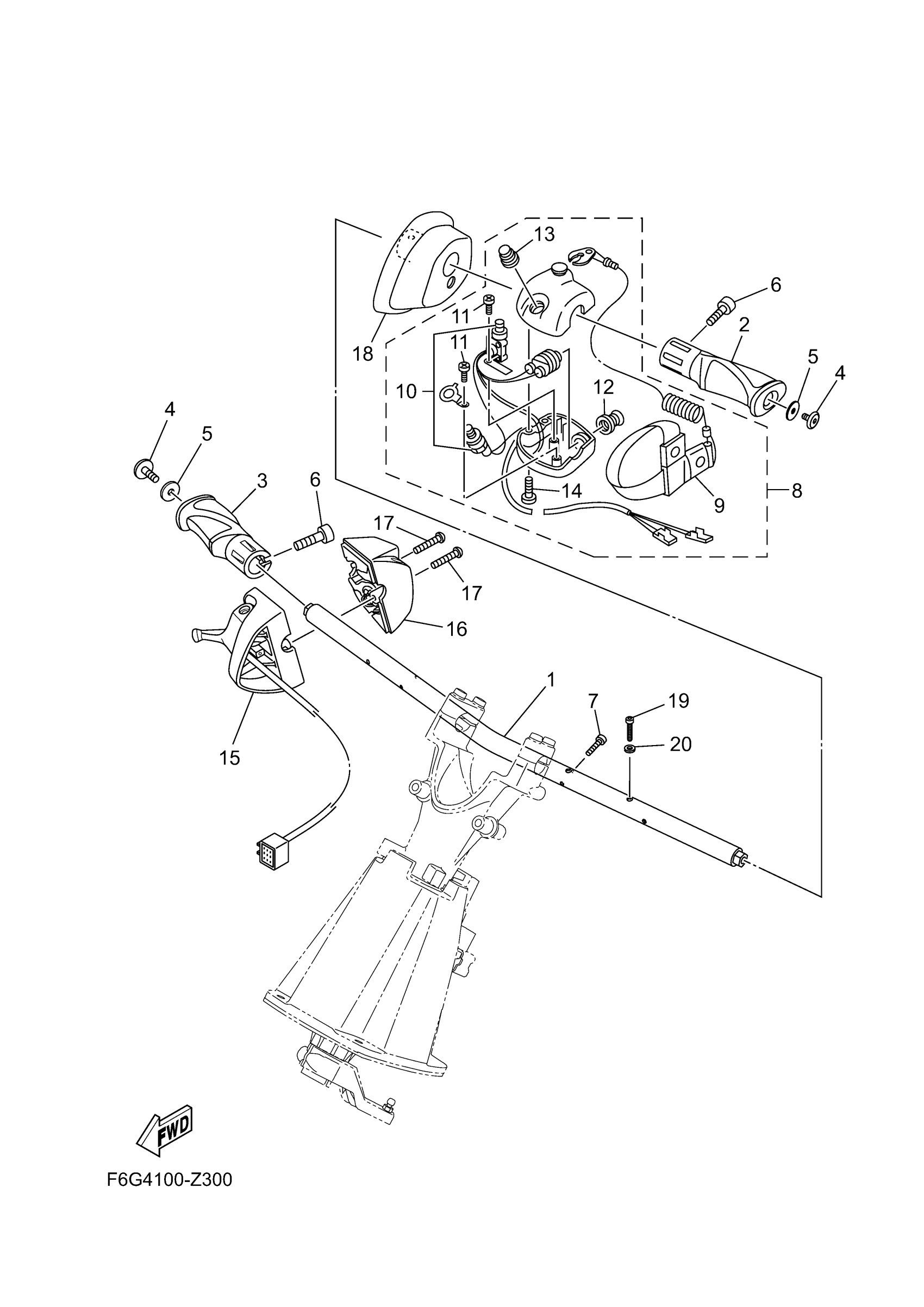

Yamaha VX1050GA (VX-C) F6G4 2024 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F3Y-U1552-00-00

$98.49

2

GRIP,HANDLE

F2S-U155D-03-00

$34.45

3

GRIP,HANDLE

F2S-U155D-03-00

$34.45

4

BOLT, HEXAGON SOCKET HEAD

90110-06383-00

$3.79

5

WASHER, PLATE

90201-068G0-00

$1.04

6

BOLT

F2S-U1516-00-00

$2.93

7

BOLT

91380-04030-00

$0.86

8

SWITCH BOX ASSY

F3Y-68310-00-00

$145.53

9

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

10

SWITCH BOX ASSY

GA7-68310-01-00

$211.14

11

SCREW, PAN HEAD (J10)

98580-03008-00

$2.14

12

. STOP BUTTON COMP

FK7-68312-02-00

$13.02

13

. START BUTTON COMP

FK7-68313-02-00

$10.96

14

SCREW, PANHEAD (A93)

98580-05525-00

$1.43

15

THROTTLE LEVER COMP

6CS-14305-13-00

$654.99

16

CASE

6EX-82154-00-00

$26.85

17

BOLT, THROTTLE

6CS-6725F-00-00

$4.55

18

SPACER

F3Y-U143G-00-00

$6.34

19

BOLT

91380-04030-00

$0.86

20

WASHER, PLATE

90201-04810-00

$0.86
