- VX1050G-X (VX-C) F6G2 2022
GUNWALE & MAT

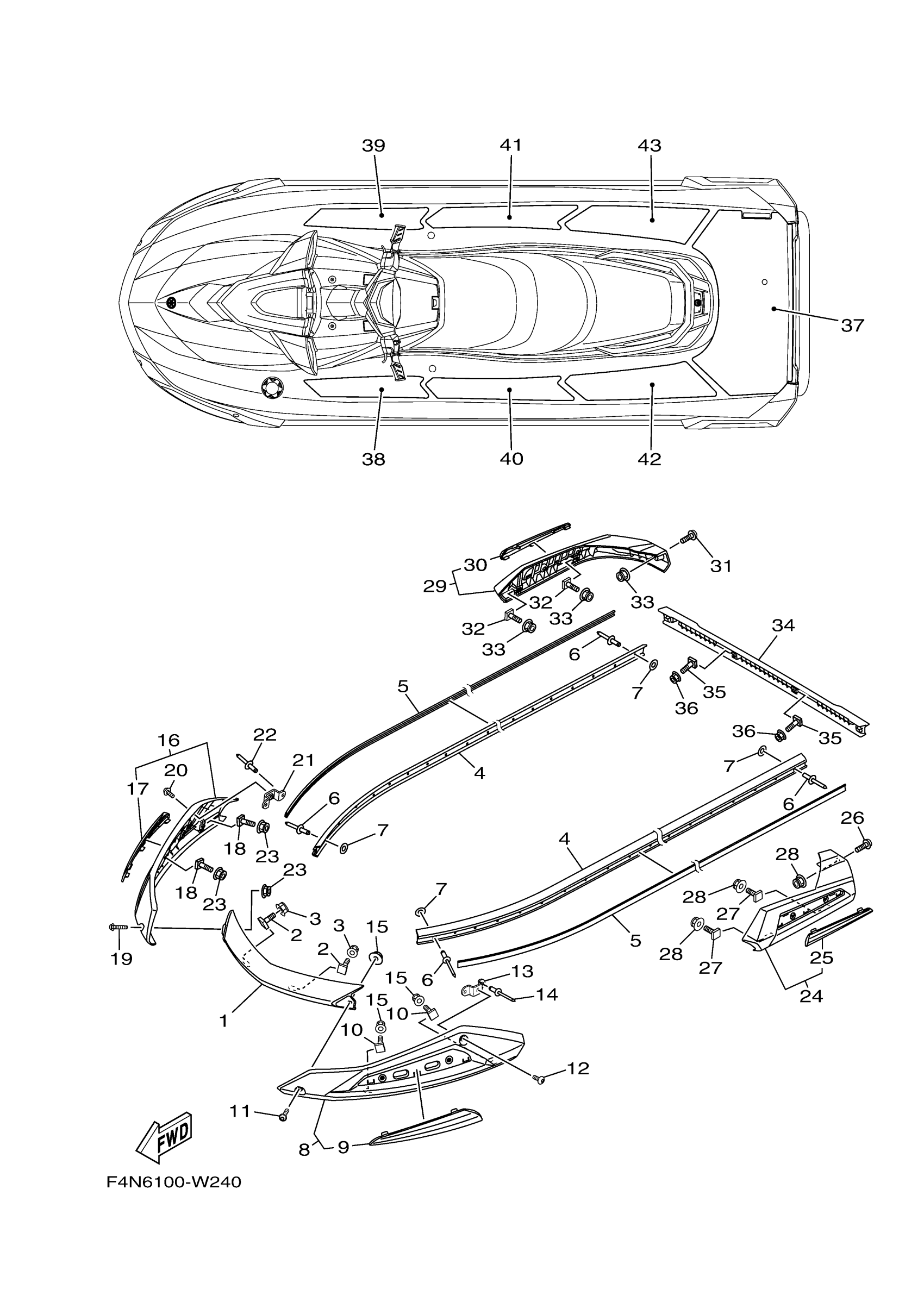

Yamaha VX1050G-X (VX-C) F6G2 2022 GUNWALE & MAT Diagram
#
1
GUNWALE, BOW
F4N-U2511-00-00
$32.99
2
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
3
NUT, LOCK
F2N-U142L-00-00
Unavailable
4
GUNWALE, SIDE
F4N-U2512-00-00
Unavailable
5
INNER,GUNWALE
F4N-U2519-61-00
Unavailable
6
RIVET, BLIND
90267-489U8-00
Unavailable
7
WASHER
9299R-05200-00
Unavailable
8
GUNWALE ASSY.
F4N-U2510-00-00
$45.99
9
. GUNWALL INSIDE
F4N-U2514-00-00
Unavailable
10
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
11
SCREW
F3X-U7823-12-00
Unavailable
12
BOLT,HEX. SOCKET B
90111-06874-00
Unavailable
13
BRACKET
F3X-U4949-00-00
Unavailable
14
RIVET, BLIND
90267-489U6-00
Unavailable
15
NUT, LOCK
F2N-U142L-00-00
Unavailable
16
GUNWALE ASSY.
F4N-U2510-10-00
Unavailable
17
. GUNWALL INSIDE
F4N-U2514-10-00
Unavailable
18
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
19
SCREW
F3X-U7823-12-00
Unavailable
20
BOLT,HEX. SOCKET B
90111-06874-00
Unavailable
21
BRACKET
F3X-U4949-00-00
Unavailable
22
RIVET, BLIND
90267-489U6-00
Unavailable
23
NUT, LOCK
F2N-U142L-00-00
Unavailable
24
STERN GUNWALE COMP
F4N-U2504-00-00
Unavailable
25
. INNER GUNWALE, AFT
F4N-U255C-00-00
Unavailable
26
SCREW
F4P-U7823-00-00
Unavailable
27
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
28
NUT, LOCK
F2N-U142L-00-00
Unavailable
29
STERN GUNWALE COMP
F4N-U2504-10-00
Unavailable
30
. INNER GUNWALE, AFT
F4N-U255C-10-00
Unavailable
31
SCREW
F4P-U7823-00-00
Unavailable
32
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
33
NUT, LOCK
F2N-U142L-00-00
Unavailable
34
COVER, GUNWALE 1
F4P-U252C-02-00
Unavailable
35
BOLT, SPECIAL
F7K-U491K-00-00
Unavailable
36
NUT, LOCK
F2N-U142L-00-00
Unavailable
37
MAT, UPPER
F4N-U3581-00-00
Unavailable
38
MAT, STEP 1
F4N-U351H-00-00
Unavailable
39
MAT, STEP 2
F4N-U351J-00-00
Unavailable
40
MAT, STEP 3
F4N-U351K-00-00
Unavailable
41
MAT, STEP 4
F4N-U351M-00-00
Unavailable
42
MAT, STEP 5
F4N-U351N-00-00
Unavailable
43
MAT, STEP 6
F4N-U351P-00-00
Unavailable
