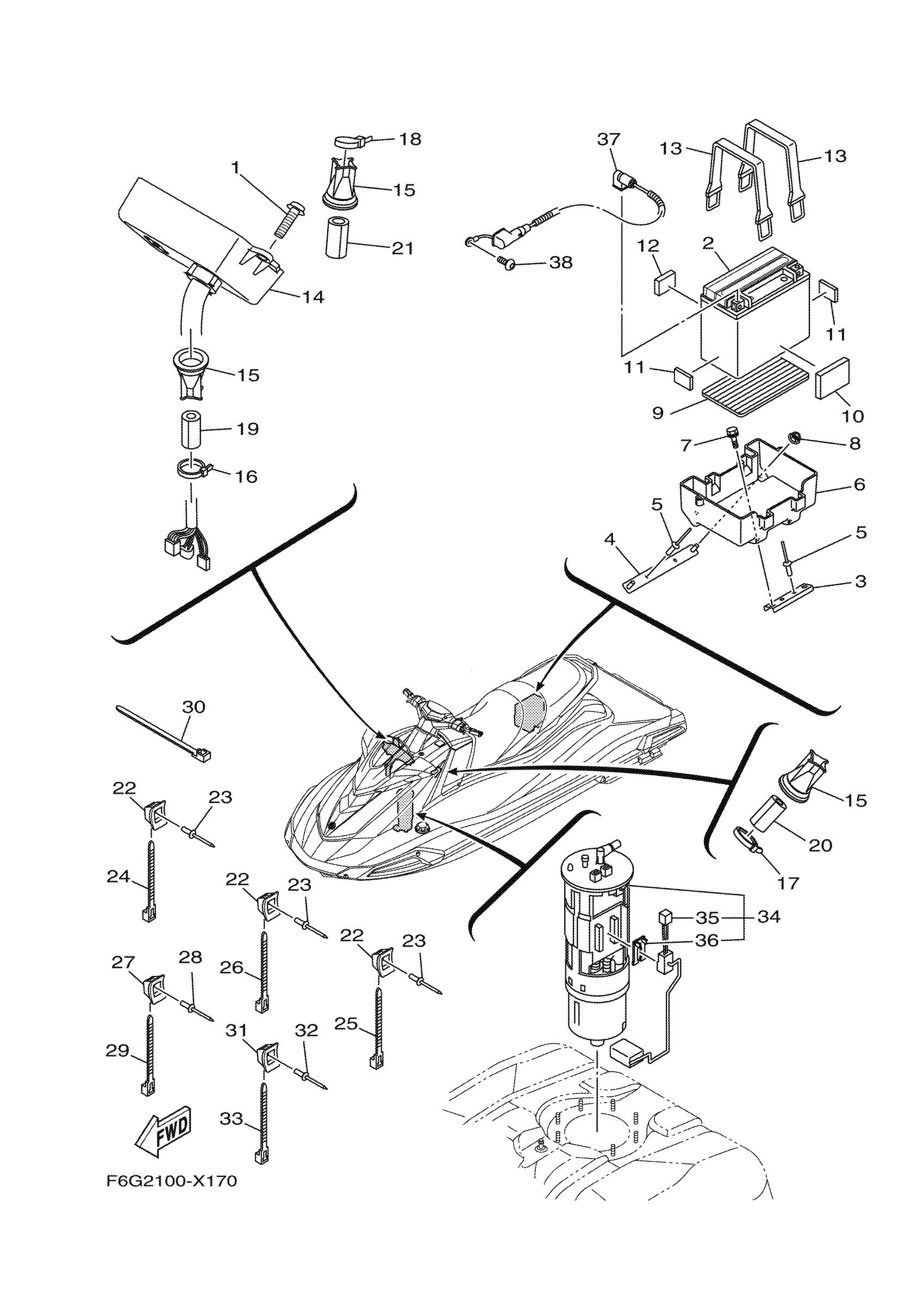

Yamaha VX1050G-X (VX-C) F6G2 2022 ELECTRICAL 3 Diagram

#

Description
Price

1

SCREW

F3X-U7823-02-00

$1.43

2

BATTERY ASSY (YUASA YTX20L-BS)

YTX-20LBS-00-00

$159.13

3

PLATE, BASE 2

F2S-U8592-00-00

$5.66

4

PLATE, BASE 3

F2S-U8593-00-00

$5.29

5

RIVET (EU0)

90267-48938-00

$4.85

6

CASE, BATTERY

F2S-U8211-00-00

Unavailable

7

BOLT, WITH WASHER

90119-06820-00

$3.65

8

NUT, LOCK

F2N-U142L-00-00

$1.43

9

PAD, BATTERY

F1S-U8221-00-00

$2.88

10

MAT 2

F1W-U759C-01-00

$2.43

11

PAD, BATTERY

EU0-U8221-31-00

$1.80

12

PACKING

F2C-U1743-00-00

$2.00

13

BAND, BATTERY 1

F4P-U821D-00-00

Unavailable

14

METER ASSY

F6G-U820A-00-00

$130.68

15

GROMMET

F3J-U822E-01-00

$6.03

16

CLAMP

90464-32801-00

$1.29

17

CLAMP

90464-32801-00

$1.29

18

CLAMP

90464-32801-00

$1.29

19

PACKING, HOSE 2

GJ1-U7578-22-00

Unavailable

20

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

21

PACKING, HOSE 2

GJ1-U7578-12-00

Unavailable

22

BASE, CLAMP

F1W-U828M-00-00

$1.29

23

RIVET, BLIND

90267-48806-00

$2.16

24

CLAMP

90464-32801-00

$1.29

25

CLAMP

90464-32801-00

$1.29

26

CLAMP

90464-32801-00

$1.29

27

BASE, CLAMP

F1W-U828M-00-00

$1.29

28

RIVET, BLIND

90267-48806-00

$2.16

29

CLAMP

F2C-U4256-00-00

$3.16

30

CLAMP

F2C-U4256-00-00

$3.16

31

BASE, CLAMP

F1W-U828M-00-00

$1.29

32

RIVET, BLIND

90267-48806-00

$2.16

33

CLAMP

90464-32801-00

$1.29

34

FUEL PUMP COMP.

6S5-13907-05-00

$1,050.38

35

FUEL SENDER ASSY SET

99999-04571-00

Unavailable

36

DAMPER, STOPPER

60E-82556-10-00

$18.37

37

WIRE, MINUS LEAD

6JS-82116-00-00

$40.81

38

BOLT, WITH WASHER

97513-08514-00

$1.32
