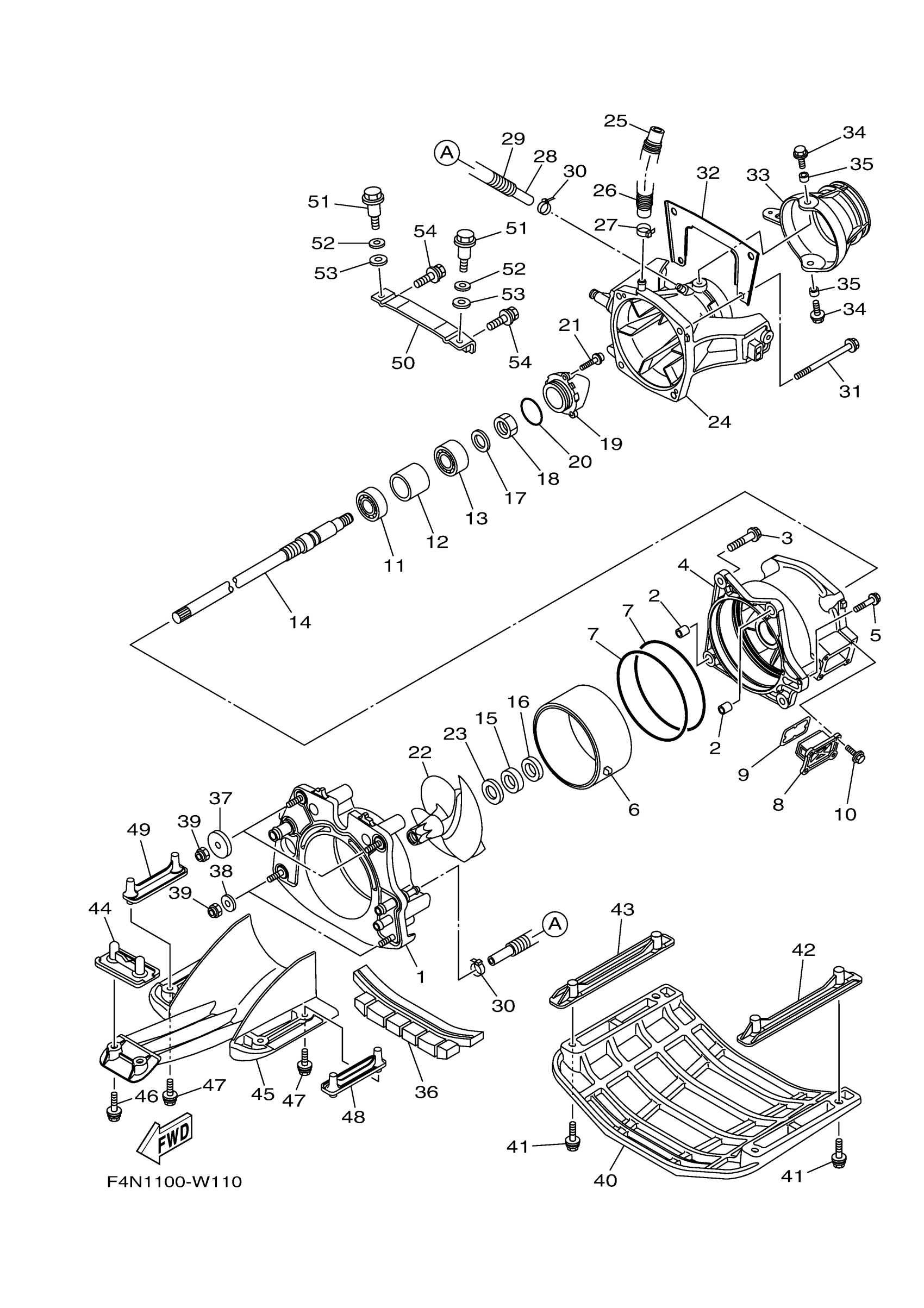

Yamaha VX1050FW (VX) F4N6 2021 JET UNIT 1 Diagram

#

Description
Price

1

PLATE, TRANSOM

6CS-G5831-20-00

$120.57

2

PIN, DOWEL(4JT)

99590-14016-00

$3.69

3

BOLT, WITH WASHER

90119-10811-00

$1.43

4

HSG.,IMPEL

6EY-R1312-09-00

Unavailable

4

HSG.,IMPEL

6EY-R1312-11-00

Unavailable

5

BOLT, WITH WASHER

90119-06894-00

$1.43

6

SLEEVE, IMPELLER

6HH-R1337-00-00

$101.95

7

O-RING

93211-65801-00

$3.59

8

FILTER

6GN-G6882-00-00

$12.20

9

. O-RING

66V-42414-00-00

$5.31

10

BOLT,WITH WASHER

90119-06890-00

$1.15

11

BEARING (6K8)

93306-205U1-00

$19.73

11

BEARING

93306-206Y7-00

$15.95

12

SPACER 1

65V-G5538-00-00

$5.49

12

SPACER 1

6CS-G5538-00-00

$34.45

13

BEARING

93306-304XB-00

$17.94

13

BEARING

93306-355Y0-00

$19.75

14

SHAFT, DRIVE

68Y-G5511-00-00

Unavailable

14

SHAFT, DRIVE

6JS-G5511-00-00

$266.67

15

OIL SEAL

93101-28M66-00

Unavailable

16

OIL SEAL

93101-28002-00

$11.96

17

958-58204-00 WASHER,PLAIN

92990-16200-00

Unavailable

17

WASHER

92990-20600-00

$4.17

18

NUT

95312-20700-00

Unavailable

18

NUT

95317-16700-00

$4.27

19

CAP

6AN-R1326-00-00

$18.66

19

CAP

6EY-R1326-00-00

$17.14

20

. O-RING

93210-44003-00

$2.65

20

O-RING

93210-54010-00

$2.41

21

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.30

22

IMPELLER

6JS-R1321-00-00

Unavailable

23

SPACER

6EY-R1348-00-00

Unavailable

24

NOZZLE

6JS-R1318-00-00

$92.63

25

HOSE 1

6CN-U72M2-00-00

$5.75

26

HOSE (L175)

90446-24M46-00

$1.32

27

BAND, HOSE 18

90601-118UF-00

$2.22

28

HOSE (L355)

90445-14807-00

$1.69

29

HOSE (L320)

90446-20MF5-00

$4.19

30

CLAMP

90465-10098-00

$2.24

31

BOLT, WITH WASHER

90119-10811-00

$1.43

32

BRACKET

6EY-R1959-00-00

$15.07

33

NOZZLE, DEFLECTOR

6EX-R1313-00-00

Unavailable

34

BOLT, WITH WASHER

90119-08841-00

$1.07

35

COLLAR(6R7)

90387-08M06-00

Unavailable

36

SPACER

F2X-U72C0-00-00

$15.79

37

WASHER

F1S-U725E-01-00

$8.61

38

WASHER, PLATE

90201-10801-00

$3.65

39

NUT, NYLON

9572R-10300-00

$3.52

40

PLATE 2

F4N-U273B-00-00

$105.87

41

BOLT, WITH WASHER

90119-08829-00

$4.09

42

BRACKET 2

F2X-U8572-00-00

$13.63

43

BRACKET 2

F2X-U8572-00-00

$13.63

44

BRACKET, 3

F2S-U8577-00-00

Unavailable

45

SCREEN, INTAKE

6EX-R1333-00-00

$74.99

46

BOLT, WITH WASHER

90119-08829-00

$4.09

47

BOLT, WITH WASHER

90119-08844-00

$1.37

48

BRACKET 1

F3P-U8571-00-00

$7.89

49

BRACKET 1

F3P-U8571-00-00

$7.89

50

BRACKET

F2C-U7557-01-00

$29.40

51

BOLT

90109-08043-00

$3.97

52

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

53

GASKET

90430-12002-00

$1.70

54

BOLT, WITH WASHER

90119-08800-00

$4.31
