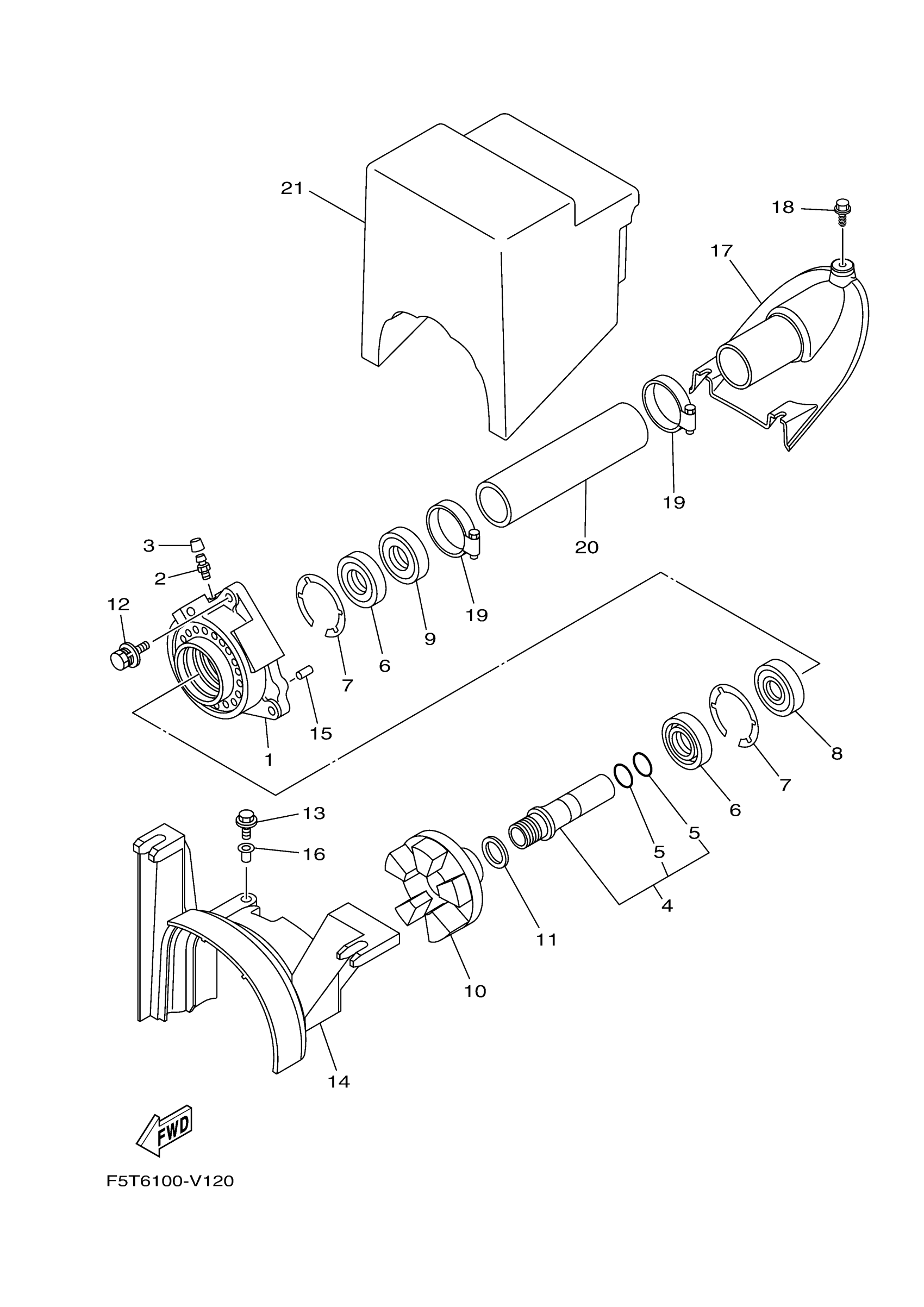

Yamaha VX1050FV (VX LIMITED) F5T9 2020 JET UNIT 2 Diagram

#

Description
Price

1

HOUSING, BEARING

61X-G5332-00-00

$134.54

2

NIPPLE, GREASE

93700-06M03-00

$7.40

3

CAP, GREASE NIPPLE

663-45119-01-00

$1.83

4

SHAFT, COUPLER

60E-XR132-01-00

$133.56

5

. O-RING

93210-19812-00

$4.46

6

OIL SEAL(62T)

93101-25M55-00

$24.36

7

CIRCLIP(26H)

99009-52500-00

$10.02

8

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

$33.83

9

. OIL SEAL

93102-25009-00

$29.63

10

FLANGE, COUPLING 1

6EY-G5593-00-00

$26.74

11

WASHER, PLATE

90201-27008-00

Unavailable

12

BOLT

F4G-U1369-00-00

$2.95

13

BOLT, WITH WASHER

90119-06892-00

$3.79

14

COVER

6EY-R1381-00-00

$6.21

15

PIN, DOWEL (614)

93606-12019-00

$3.05

16

COLLAR

90387-06289-00

Unavailable

17

JOINT, PIPE

F2N-U883E-00-00

$8.61

18

BOLT

90109-06832-00

$2.44

19

BAND, HOSE 55

90601-155U4-00

$5.87

20

PIPE 1

F2N-U883B-00-00

$16.50

21

PAD

F1K-U892D-00-00

$23.47
