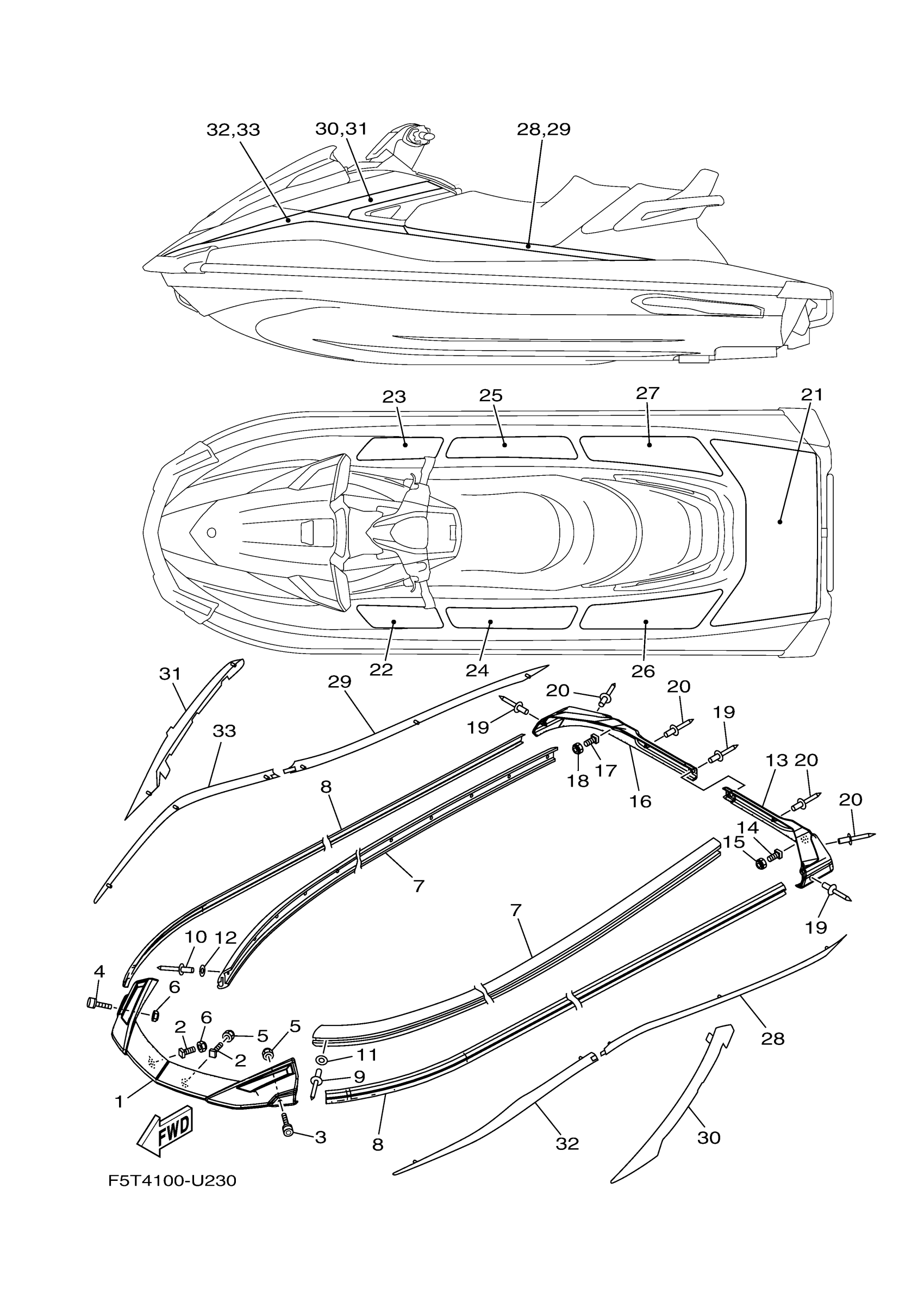

Yamaha VX1050FV (VX LIMITED) F5T9 2020 GUNWALE & MAT Diagram

#

Description
Price

1

GUNWALE, BOW (PURW)

F2X-U2511-20-00

$38.05

2

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

3

BOLT, HEXAGON SOCKET HEAD

90110-06191-00

$2.82

4

BOLT, HEXAGON SOCKET HEAD

90110-06191-00

$2.82

5

NUT, LOCK

F2N-U142L-00-00

$1.43

6

NUT, LOCK

F2N-U142L-00-00

$1.43

7

GUNWALE, SIDE (PURW)

F2X-U2512-20-00

$54.25

8

INNER,GUNWALE (YB)

F2X-U2519-10-00

$15.43

9

RIVET, BLIND

90267-489U8-00

$1.37

10

RIVET, BLIND

90267-489U8-00

$1.37

11

WASHER

9299R-05200-00

$4.60

12

WASHER

9299R-05200-00

$4.60

13

GUNWALE, STERN 1 (PURW)

F2X-U251D-20-00

$23.51

14

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

15

NUT, LOCK

F2N-U142L-00-00

$1.43

16

GUNWALE, STERN 2 (PURW)

F2X-U251E-20-00

$23.51

17

BOLT, SPECIAL

F7K-U491K-00-00

Unavailable

18

NUT, LOCK

F2N-U142L-00-00

$1.43

19

RIVET, BLIND

90267-48825-00

$2.16

20

RIVET, BLIND

90267-48825-00

$2.16

21

MAT, UPPER

F3P-U3581-00-00

$82.34

22

MAT, STEP 1

F3P-U351H-00-00

$38.22

23

MAT, STEP 2

F3P-U351J-00-00

$38.22

24

MAT, STEP 3

F3P-U351K-00-00

$48.51

25

MAT, STEP 4

F3P-U351M-00-00

$48.51

26

MAT, STEP 5

F3P-U351N-00-00

$49.99

27

MAT, STEP 6

F3P-U351P-00-00

$49.99

28

ORNAMENT, STERN LH (YB)

F2X-U89A8-00-00

$71.75

29

ORNAMENT, STERN RH (YB)

F2X-U89A9-00-00

$27.19

30

ORNAMENT, MIDDLE LH (YB)

F2X-U89AA-00-00

$12.49

31

ORNAMENT, MIDDLE RH (YB)

F2X-U89AB-00-00

$12.40

32

ORNAMENT, BOW LH (YB)

F2X-U89AC-00-00

$24.99

33

ORNAMENT, BOW RH (YB)

F2X-U89AD-00-00

$44.98
