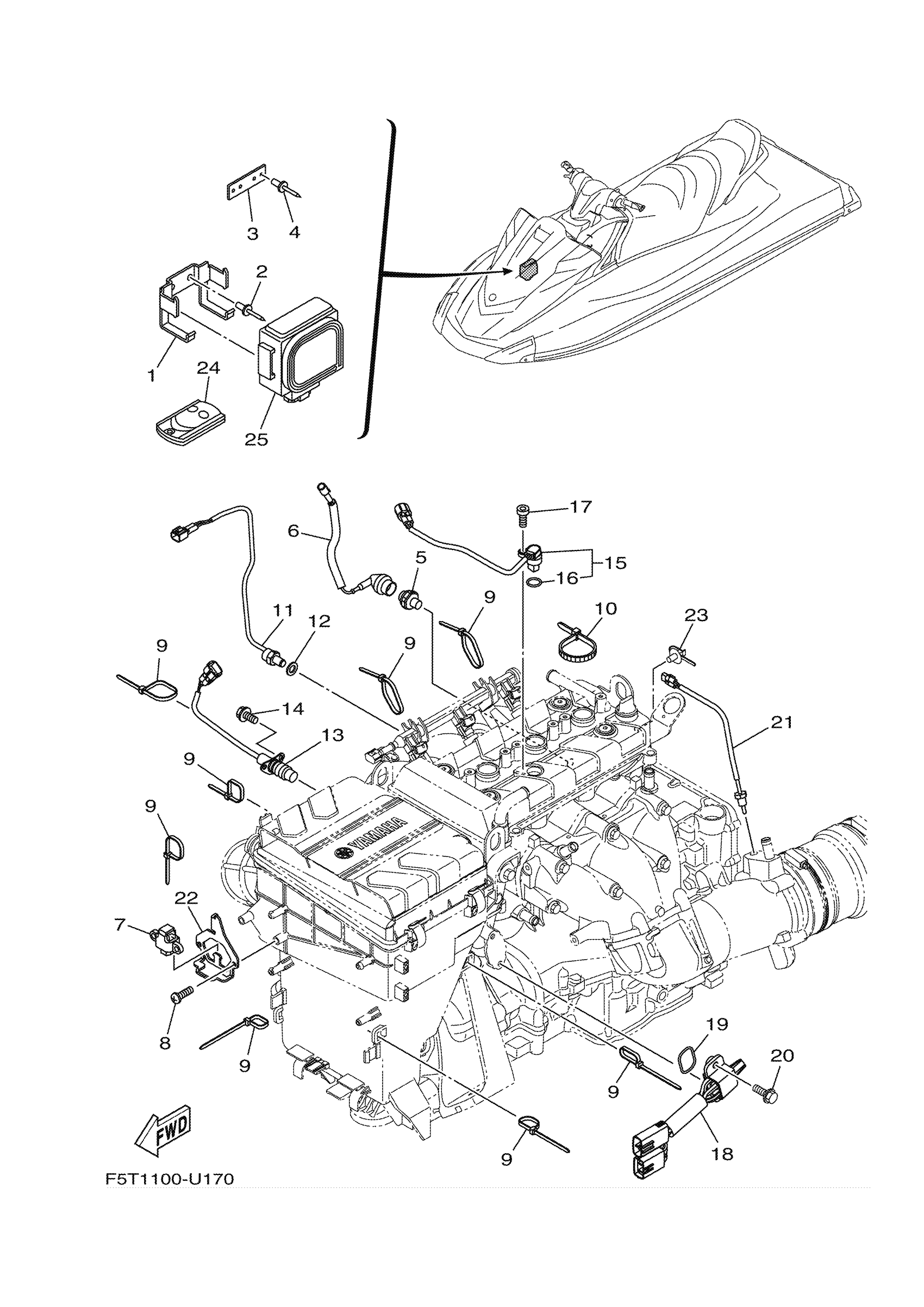

Yamaha VX1050FU (VX LIMITED) F5T4 2019 ELECTRICAL 2 Diagram

#

Description
Price

1

BRACKET

F1W-U826C-00-00

$18.17

2

RIVET (EU0)

90267-48938-00

$5.00

3

PLATE

F1W-U8376-00-00

$2.80

4

RIVET (EU0)

90267-48938-00

$5.00

5

OIL PRESSURE SWITCH ASSY

68V-82504-00-00

$62.91

6

LEAD WIRE ASSY

60E-81315-01-00

$41.99

7

SENSOR, LEAN ANGLE

6ET-82576-00-00

$50.01

8

SCREW, TAPPING

97780-60520-00

$4.09

9

CLAMP(3XW)

90464-35132-00

$6.77

10

CLAMP(6E8)

90465-13M39-00

$4.47

11

THERMOSENSOR ASSY

61A-85790-01-00

$121.46

12

WASHER, PLATE

92990-10600-00

$2.57

13

THERMO SWITCH ASSY

6CR-82560-00-00

$72.41

14

BOLT, HEXAGON W/W DEEP RECESS

97E95-06520-00

$2.29

15

SENSOR, CAM POSITI

2S3-85896-02-00

$83.10

16

O-RING

4D9-81168-00-00

Unavailable

17

BOLT,SOCKET

91380-06016-00

Unavailable

18

EARTH PLATE COMP.

6CS-8273J-11-00

$180.29

19

O-RING (341)

93210-32172-00

Unavailable

20

BOLT, WITH WASHER

90119-06MA3-00

$2.80

21

THERMOSENSOR ASSY

6DE-85790-00-00

$91.95

22

PLATE

6EY-83618-10-00

$16.99

23

CLAMP

90464-20005-00

$2.11

24

XMTR. COMP.

6B6-86261-00-00

$228.48

25

RECEIVER COMPLETE

6B6-86265-00-00

$427.26
