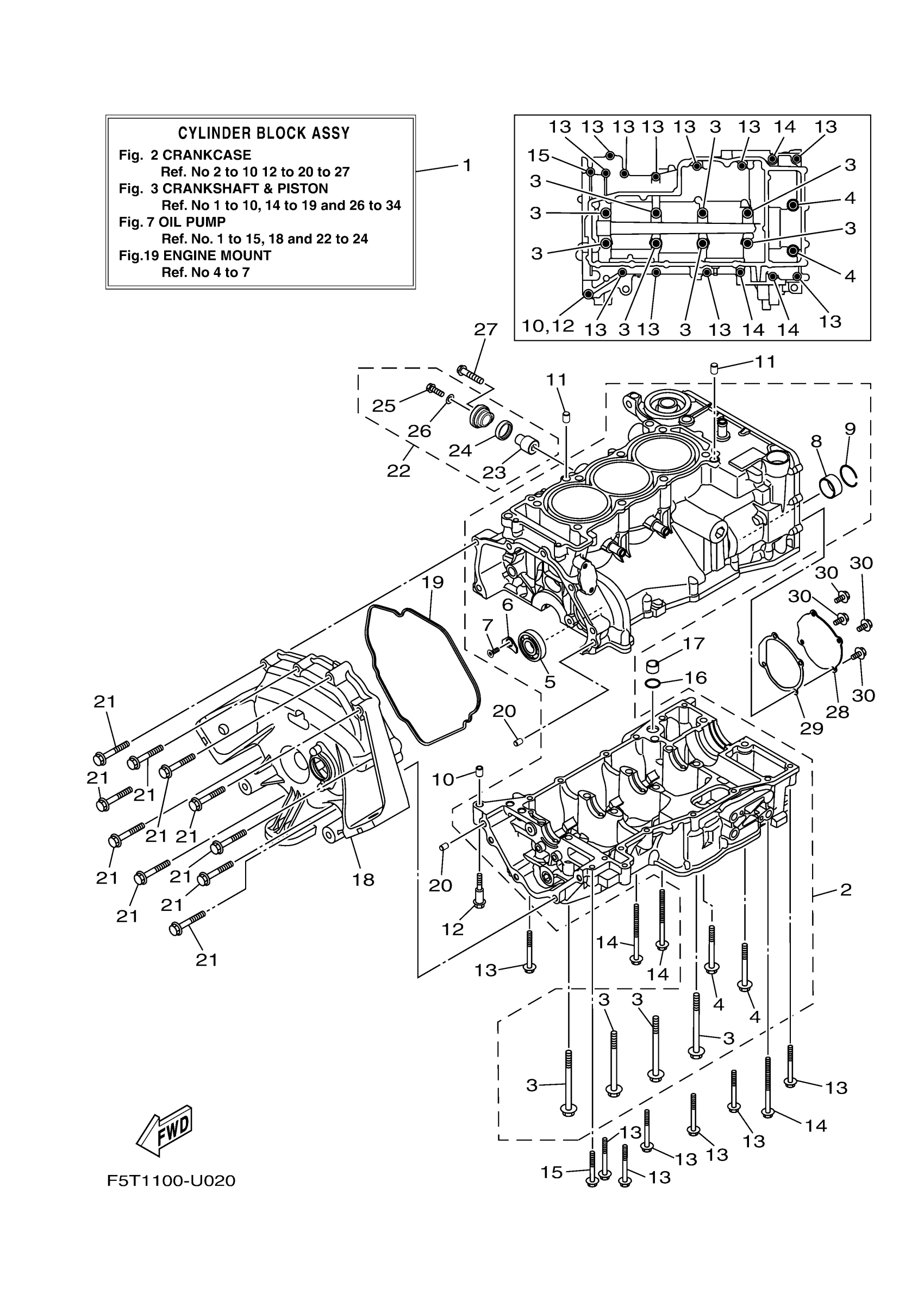

Yamaha VX1050FU (VX LIMITED) F5T4 2019 CRANKCASE Diagram
#
Description
Price
1
CYLINDER BLOCK ASSY
99999-04611-00
Unavailable
2
CRANKCASE ASSY
99999-04612-00
Unavailable
3
BOLT, WITH WASHER
90119-09004-00
$11.49
4
BOLT, FLANGE(JN5)
95817-08070-00
$3.76
5
BEARING
93306-30323-00
$44.99
6
PLATE, BEARING COVER
4JT-15381-01-00
$13.49
7
SCREW, COUNTERSUNK
90151-06023-00
$8.49
8
BEARING 1
8ES-11428-01-00
$48.99
9
CIRCLIP
93450-32152-00
$8.49
10
PIN, DOWEL(3VD)
99530-10114-00
$2.55
11
PIN, DOWEL(3VD)
99530-10114-00
$2.55
12
BOLT
90109-06308-00
Unavailable
13
BOLT, FLANGE
95814-06055-00
$4.19
14
BOLT, FLANGE
95814-06085-00
Unavailable
15
BOLT, FLANGE(4EB)
95814-06045-00
$2.82
16
. O-RING
93210-17010-00
Unavailable
17
PIPE
8ES-13284-00-00
Unavailable
18
COVER, CRANKCASE 2
6EY-15421-00-00
Unavailable
19
. GASKET, CRANKCASE COVER 2
6EY-15461-00-00
Unavailable
20
PIN, DOWEL
99590-08012-00
Unavailable
21
BOLT, WITH WASHER
97513-08555-00
Unavailable
22
ANODE COVER ASSY
69J-11301-11-00
Unavailable
23
. ANODE
68V-11325-02-00
Unavailable
24
GROMMET, ANODE
67F-11328-01-00
Unavailable
25
BOLT (689)
90105-06M07-00
Unavailable
26
. GASKET
90430-06M03-00
Unavailable
27
BOLT, HEXAGON W/W DEEP RECESS
97E95-08540-00
Unavailable
28
PLATE AND GASKET, 2
99999-04357-00
Unavailable
29
. GASKET, 2
6EY-15463-01-00
Unavailable
30
BOLT, FLANGE(2UJ)
95024-06012-00
Unavailable
