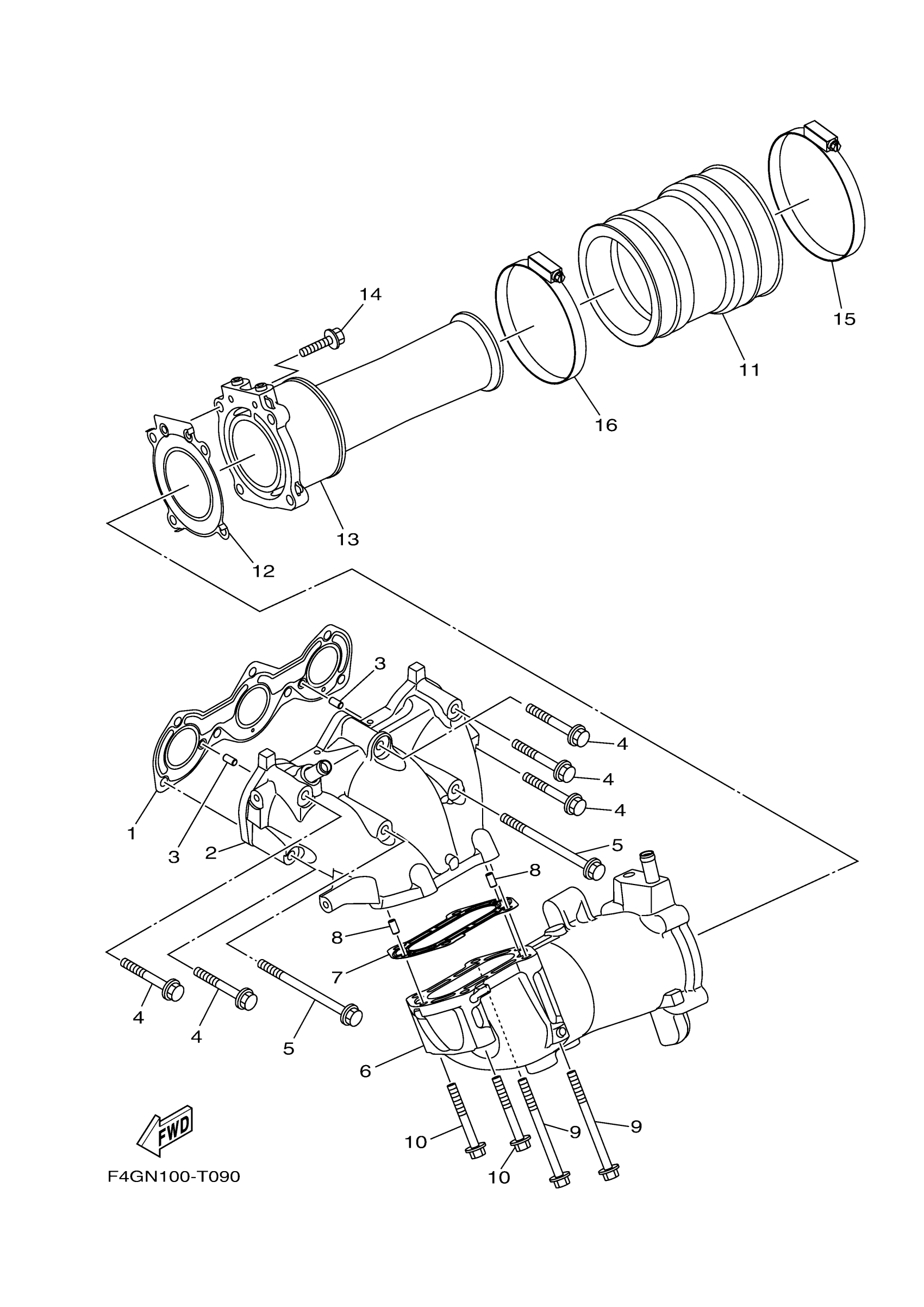

Yamaha VX1050FT (VX LIMITED) F4GV 2018 EXHAUST 1 Diagram

#

Description
Price

1

. GASKET, EXHAUST PIPE

6EY-14613-00-00

$9.87

2

MUFFLER 1

6EY-14711-00-00

$492.52

3

PIN, DOWEL (614)

93606-12019-00

$3.50

4

BOLT, WITH WASHER

90119-08034-00

$3.41

5

BOLT, WITH WASHER

90119-08097-00

$5.31

6

MUFFLER 2

6EY-14721-00-00

$482.07

7

. GASKET, MUFFLER DAMPER 1

6EY-14739-00-00

$7.21

8

PIN, DOWEL (614)

93606-12019-00

$3.50

9

BOLT, WITH WASHER

90119-08029-00

$3.79

10

BOLT, WITH WASHER

90119-08093-00

$5.37

11

PIPE, OUTLET

6S5-E4752-01-00

$25.11

12

GASKET, MUFFLER DAMPER 2

6EY-14749-01-00

Unavailable

13

PIPE, TAIL

6EY-14784-00-00

$107.45

14

BOLT, FLANGE (3JPE)

95024-08030-00

$8.54

15

HOSE CLAMP ASSY

90450-99016-00

$15.95

16

HOSE CLAMP ASSY

90450-99015-00

$14.81
