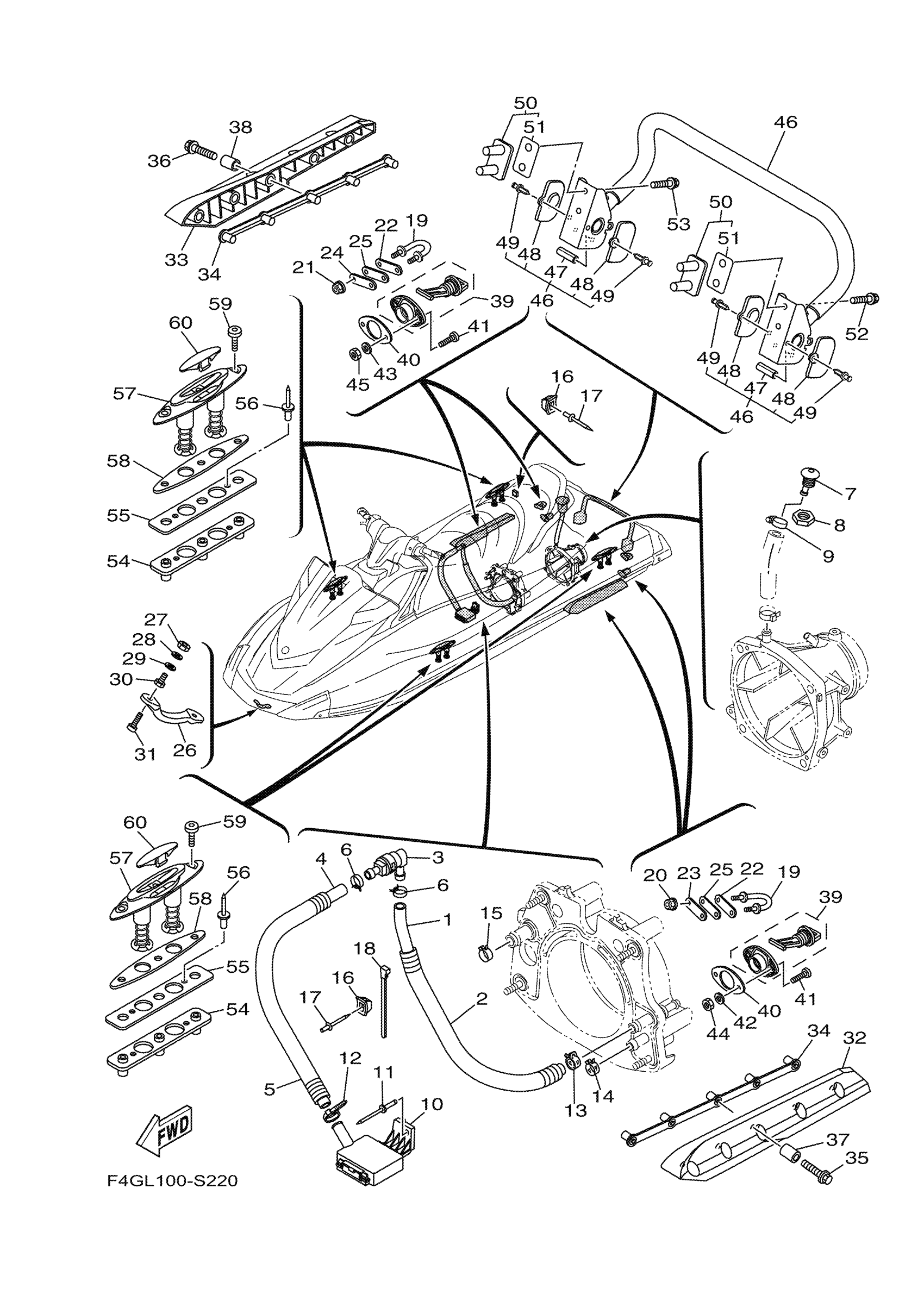

Yamaha VX1050FS (VX LIMITED) F4GL 2017 HULL & DECK Diagram

#

Description
Price

1

HOSE 2

6EY-U771G-00-00

Unavailable

2

TUBE,2

6EY-U773E-00-00

Unavailable

3

JOINT, HOSE

68N-5112T-00-00

Unavailable

4

HOSE (L860)

90445-20804-00

Unavailable

5

TUBE,2

6EX-U773E-00-00

Unavailable

6

CLIP

90467-18804-00

Unavailable

7

SPOUT

F1W-U269B-00-00

Unavailable

8

NUT

EU0-61652-00-00

Unavailable

9

BAND, HOSE 18

90601-118UF-00

Unavailable

10

STRAINER, BILGE

F1B-U761D-02-00

Unavailable

11

RIVET, BLIND

90267-489U8-00

Unavailable

12

CLAMP

90465-10089-00

Unavailable

13

CLIP

90467-21800-00

Unavailable

14

CLIP

90467-200A0-00

Unavailable

15

CLIP

90467-26800-00

Unavailable

16

BASE, CLAMP

F1W-U828M-00-00

Unavailable

17

RIVET, BLIND

90267-489U6-00

Unavailable

18

CLAMP

90464-32801-00

Unavailable

19

STERN EYE

F2N-U1628-02-00

Unavailable

20

NUT, NYLON (6J8)

95780-08300-00

Unavailable

21

NUT, NYLON (6J8)

95780-08300-00

Unavailable

22

PLATE A

GP7-U4953-10-00

Unavailable

23

PLATE A

GP7-U4953-10-00

Unavailable

24

PLATE A

GP7-U4953-10-00

Unavailable

25

PACKING

F1B-U1653-03-00

Unavailable

26

BOW EYE 1

F1K-61624-00-00

Unavailable

27

NUT.HEX.(COARS)

99780-12600-00

Unavailable

28

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

29

WASHER

F0X-61637-00-00

Unavailable

30

NUT

F0X-61652-01-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD

90110-06280-00

Unavailable

32

STABILIZER LH

F1S-U883N-01-00

Unavailable

33

STABILIZER RH

F1S-U883P-01-00

Unavailable

34

BRACKET,STABILIZER

F1X-U883T-02-00

Unavailable

35

BOLT,WASHER BASED

90105-088F9-00

Unavailable

36

BOLT,WASHER BASED

90105-088F9-00

Unavailable

37

SPACER

F2N-U8169-10-00

Unavailable

38

SPACER

F2N-U8169-10-00

Unavailable

39

DRAIN PLUG ASSY

F1S-U2280-02-00

Unavailable

40

PACKING, DRAIN

F1S-U2285-01-00

Unavailable

41

SCREW, PAN HEAD

9788R-05025-00

Unavailable

42

WASHER

9299R-05200-00

Unavailable

43

WASHER

9299R-05200-00

Unavailable

44

NUT, FLANGE

9572R-05300-00

Unavailable

45

NUT, FLANGE

9572R-05300-00

Unavailable

46

LADDER, STEP ASSY

F2X-U278A-00-00

Unavailable

47

. SLEEVE 1

F1W-U771H-00-00

Unavailable

48

. INNER, COVER SIDE 1

F2C-U377H-00-00

Unavailable

49

. PIN

F2C-U1314-00-00

Unavailable

50

BRACKET, LADDER LH

F2S-U278F-01-00

Unavailable

51

PACKING, BRKT. 1

F2S-U278H-01-00

Unavailable

52

BOLT, WITH WASHER

90119-08844-00

Unavailable

53

BOLT, WITH WASHER

90119-08844-00

Unavailable

54

BRACKET

F1X-U826C-10-00

Unavailable

55

PACKING

F1X-U2157-00-00

Unavailable

56

RIVET, BLIND

90267-489U6-00

Unavailable

57

CLEAT ASSY.

F4G-U163A-02-00

Unavailable

58

PACKING

F4G-U2284-10-00

Unavailable

59

BOLT

F1W-U2624-00-00

Unavailable

60

COVER

F1X-U826D-01-00

Unavailable
