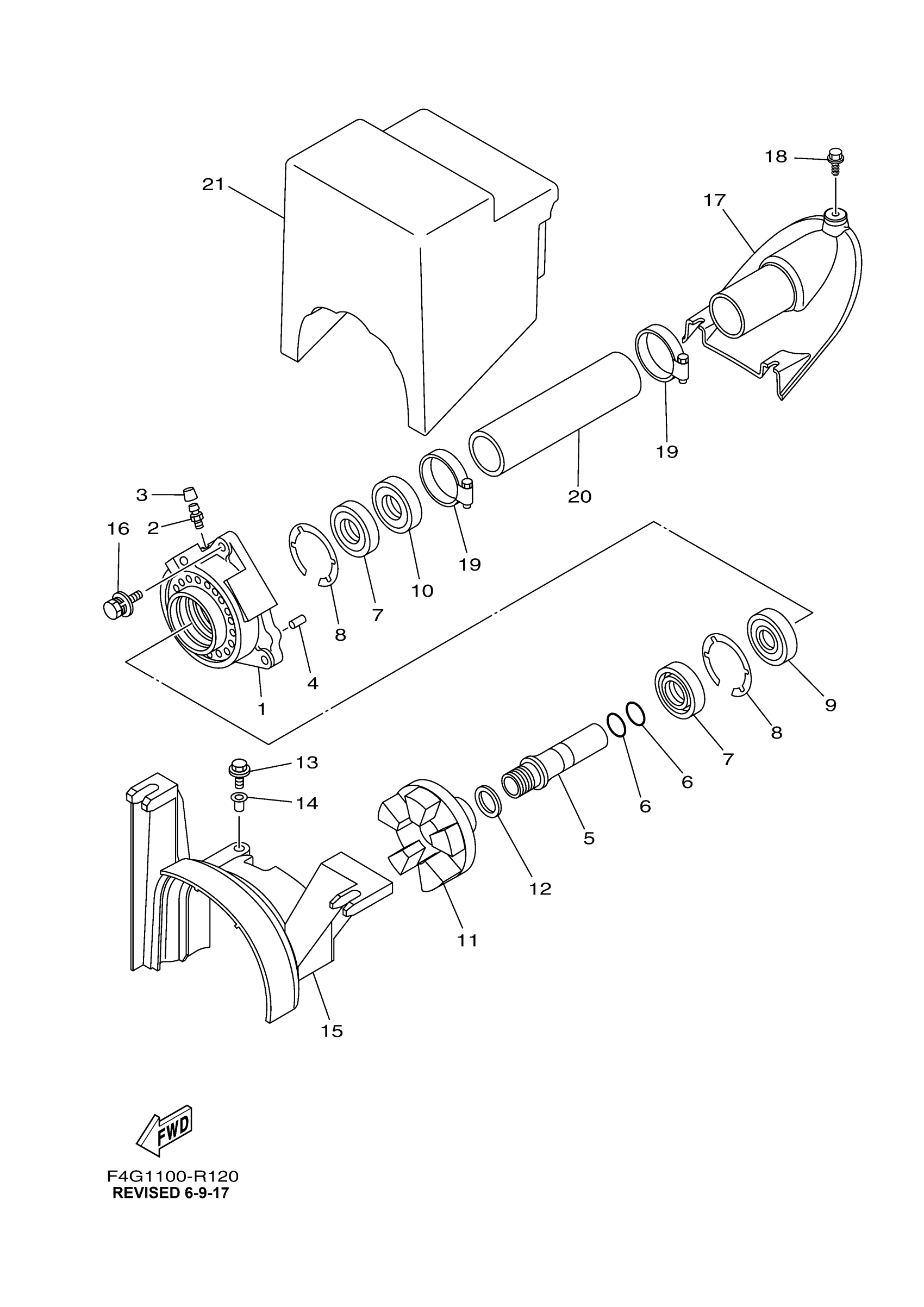

Yamaha VX1050FR (VX LIMITED) F4GA 2016 JET UNIT 2 Diagram

#

Description
Price

1

HOUSING, BEARING

61X-G5332-00-00

$134.54

2

NIPPLE, GREASE

93700-06M03-00

$7.40

3

CAP, GREASE NIPPLE

663-45119-01-00

$1.83

4

PIN, DOWEL (614)

93606-12019-00

$3.05

5

SHAFT, COUPLER

60E-R1323-01-00

Unavailable

6

O-RING

93210-19001-00

$3.49

7

OIL SEAL(62T)

93101-25M55-00

$24.36

8

CIRCLIP

93430-47M04-00

$5.18

9

BRG,R-B 6205C4 52MM 130G KY

93306-20529-00

$33.83

10

. OIL SEAL

93102-25009-00

$29.63

11

FLANGE, COUPLING 1

6EY-45593-00-00

$62.11

12

WASHER, PLATE

90201-27008-00

Unavailable

13

BOLT, WITH WASHER

90119-06892-00

$3.79

14

COLLAR

90387-06289-00

$2.30

15

COVER

6EY-R1381-00-00

$6.21

16

BOLT

F4G-U1369-00-00

$2.95

17

JOINT, PIPE

F2N-U883E-00-00

$8.61

18

BOLT

90109-06832-00

$2.44

19

BAND, HOSE 55

90601-155U4-00

$5.87

20

PIPE 1

F2N-U883B-00-00

$16.50

21

PAD

F1K-U892D-00-00

$23.47
