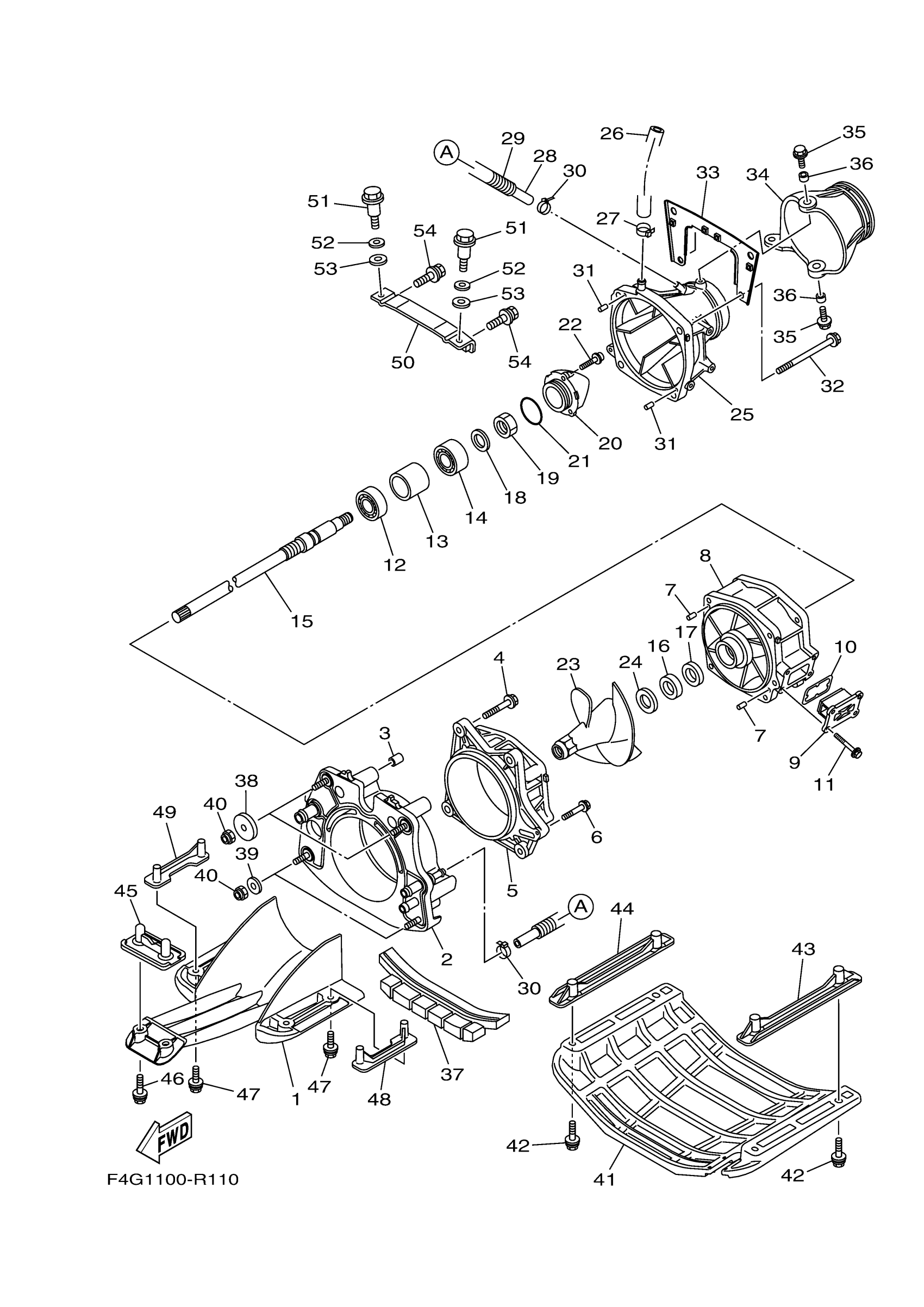

Yamaha VX1050FR (VX LIMITED) F4GA 2016 JET UNIT 1 Diagram

#

Description
Price

1

SCREEN, INTAKE

6EX-R1333-00-00

$73.35

2

PLATE, TRANSOM

6CS-G5831-10-00

Unavailable

3

PIN, DOWEL(4JT)

99590-14016-00

$3.41

4

BOLT, WITH WASHER

90119-10811-00

$1.37

5

HOUSING, IMPELLER

6CR-R1312-00-00

$107.60

6

BOLT, WITH WASHER

90119-06894-00

$1.37

7

PIN, DOWEL (614)

93606-12019-00

$3.05

8

DUCT, IMPELLER SET

99999-04430-00

Unavailable

9

FILTER

6EX-G6882-00-00

$6.59

10

. O-RING

66V-42414-00-00

$5.18

11

BOLT,WITH WASHER

90119-06890-00

$1.07

12

BEARING (6K8)

93306-205U1-00

$19.73

13

SPACER 1

65V-45538-00-00

$29.88

14

BEARING

93306-304XB-00

$17.22

15

SHAFT, DRIVE

68Y-G5511-00-00

Unavailable

16

OIL SEAL

93101-28M66-00

Unavailable

17

OIL SEAL

93101-28002-00

$13.40

18

WASHER

9299R-16600-00

Unavailable

19

NUT

95317-16700-00

$4.55

20

CAP

6B6-51326-10-00

$40.89

21

. O-RING

93210-44003-00

$2.61

22

BOLT, HEXAGON SOCKET HEAD

90110-06823-00

$2.16

23

IMPELLER

6EY-R1321-01-00

$137.84

24

SPACER

66V-R1348-10-00

$12.91

25

NOZZLE

6EX-R1318-01-00

$78.77

26

HOSE 1

6CN-U72M2-00-00

$5.44

27

BAND, HOSE 18

90601-118UF-00

$2.07

28

HOSE (L355)

90445-14807-00

$1.74

29

HOSE (L320)

90446-20MF5-00

$4.57

30

CLAMP

90465-10098-00

$1.68

31

PIN, DOWEL (614)

93606-12019-00

$3.05

32

BOLT, WITH WASHER

90119-10807-00

$5.44

33

BRACKET 1

6EX-R1341-00-00

$15.14

34

NOZZLE, DEFLECTOR

6EX-R1313-00-00

$20.81

35

BOLT, WITH WASHER

90119-08841-00

$1.01

36

COLLAR(6R7)

90387-08M06-00

Unavailable

37

SPACER

F2X-U72C0-00-00

$15.07

38

WASHER

F1S-U725E-01-00

$7.89

39

WASHER, PLATE

90201-10801-00

$3.52

40

NUT, NYLON

9572R-10300-00

$3.37

41

PLATE 2

F2X-U273B-00-00

$171.20

42

BOLT, WITH WASHER

90119-08829-00

$3.88

43

BRACKET 2

F2X-U8572-00-00

$12.91

44

BRACKET 2

F2X-U8572-00-00

$12.91

45

BRACKET, 3

F2S-U8577-00-00

$15.07

46

BOLT, WITH WASHER

90119-08829-00

$3.88

47

BOLT, WITH WASHER

90119-08829-00

$3.88

48

BRACKET 1

F2X-U8571-00-00

$12.91

49

BRACKET 1

F2X-U8571-00-00

$12.91

50

BRACKET

F2C-U7557-01-00

$30.29

51

BOLT

90109-08043-00

$4.09

52

YBS66-12 WASHER,PLAIN

92990-12200-00

Unavailable

53

GASKET

90430-12002-00

$1.81

54

BOLT, WITH WASHER

90119-08800-00

$4.09
