CRANKSHAFT & PISTON

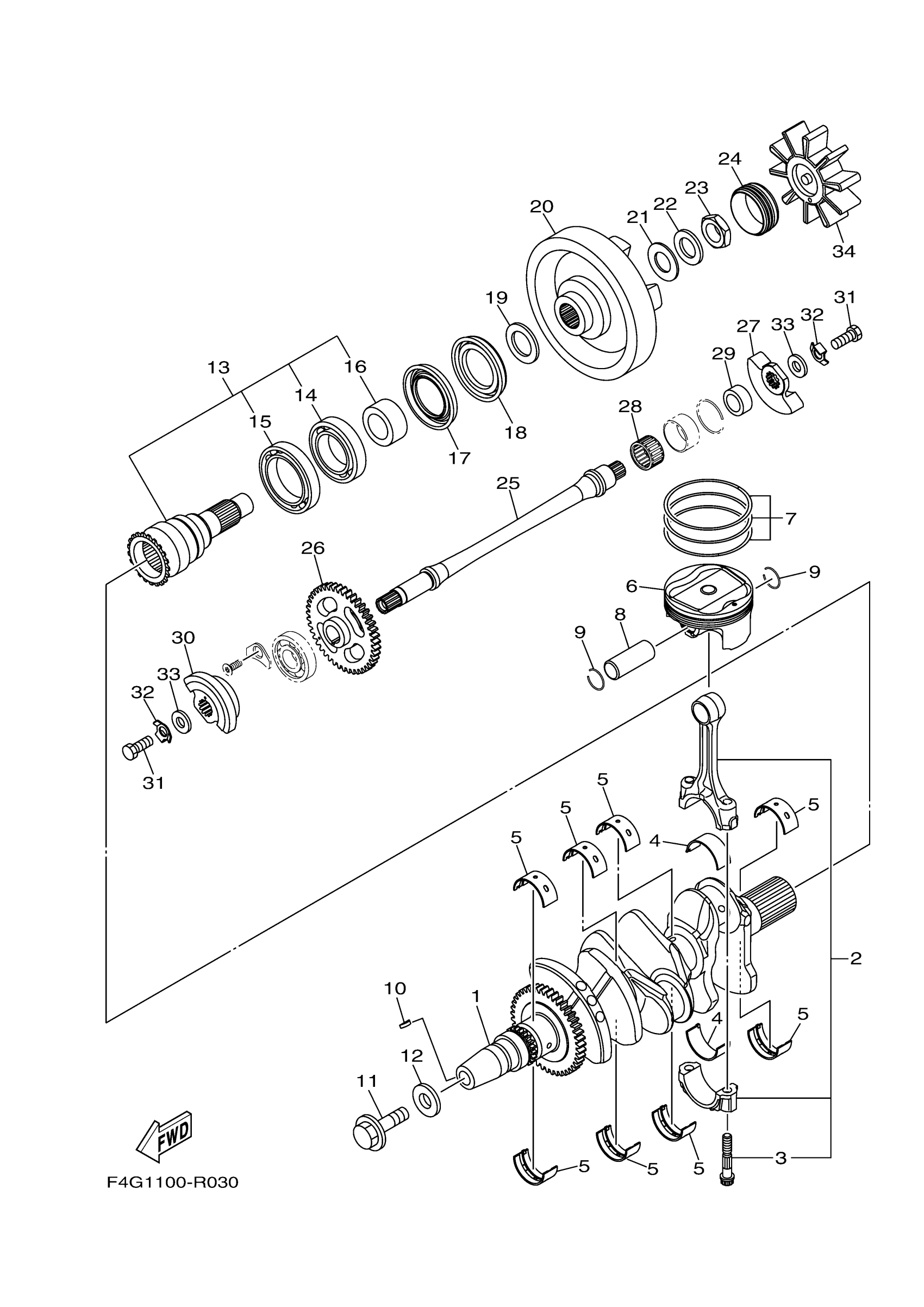

Yamaha VX1050FR (VX LIMITED) F4GA 2016 CRANKSHAFT & PISTON Diagram
#
1
CRANKSHAFT ASSY
6EY-11400-00-00
Unavailable
2
CONNECTING ROD ASSY
2HC-11650-00-00
Unavailable
3
BOLT, CONNECTING ROD
5PX-11654-00-00
$7.99
4
PLANE BEARING, CONNECTING ROD
5JW-11656-00-00
$13.49
4
PLANE BEARING, CONNECTING ROD
5JW-11656-10-00
$13.49
4
PLANE BEARING, CONNECTING ROD
5JW-11656-20-00
$13.49
4
PLANE BEARING, CONNECTING ROD
5JW-11656-30-00
$14.49
4
PLANE BEARING, CONNECTING ROD
5JW-11656-40-00
$13.49
4
PLANE BEARING, CONNECTING ROD
5JW-11656-50-00
$11.99
5
PLANE BEARING, CRANKSHAFT 1
3LD-11416-10-00
Unavailable
5
PLANE BEARING, CRANKSHAFT 1
3LD-11416-20-00
$27.99
5
PLANE BEARING, CRANKSHAFT 1
3LD-11416-30-00
$25.99
5
PLANE BEARING, CRANKSHAFT 1
3LD-11416-40-00
$27.99
5
PLANE BEARING, CRANKSHAFT 1
3LD-11416-50-00
$29.99
5
PLANE BEARING, CRANKSHAFT 1
3LD-11416-60-00
$29.99
5
PLANE BEARING, CRANKSHAFT 1
3LD-11416-70-00
Unavailable
6
PISTON (STD)
8KH-11631-00-00
Unavailable
7
PISTON RING SET
8KH-11603-02-00
Unavailable
8
PIN, PISTON
6EY-11633-00-00
Unavailable
9
CIRCLIP (26H)
93450-19095-00
Unavailable
10
KEY WOODRUFF 146115450000
90280-03017-00
Unavailable
11
BOLT, FLANGE
90105-12101-00
Unavailable
12
WASHER (838)
90201-12191-00
Unavailable
13
SHAFT ASSY
6EY-11406-00-00
Unavailable
14
BRG,R-B 6007 62MM 150G KY
93306-00702-00
Unavailable
15
BEARING
93306-90901-00
Unavailable
16
. COLLAR
6EY-11917-00-00
Unavailable
17
. OIL SEAL
93101-40001-00
Unavailable
18
. OIL SEAL
93101-40002-00
Unavailable
19
WASHER 1
6EY-11557-00-00
Unavailable
20
FLYWHEEL
6JS-11571-00-00
Unavailable
21
WASHER, PLATE
90201-20030-00
Unavailable
22
WASHER, CONICAL SPRING
90208-20001-00
Unavailable
23
NUT
90179-20020-00
Unavailable
24
CAP
6EY-45155-00-00
Unavailable
25
SHAFT ASSY., 2
2HC-11407-00-00
Unavailable
26
GEAR, BALANCE WEIGHT
6EY-11531-00-00
Unavailable
27
WEIGHT 1
8ES-11454-00-00
Unavailable
28
BEARING
93310-42239-00
Unavailable
29
COLLAR
6EY-11478-00-00
Unavailable
30
WEIGHT 2
2HC-11464-00-00
Unavailable
31
BOLT(6TD)
97017-10025-00
Unavailable
32
WASHER, LOCK
90215-10003-00
Unavailable
33
WASHER, PLATE (3L6)
90201-10774-00
Unavailable
34
RUBBER SHAFT COUPLING
6EY-4581J-00-00
Unavailable
