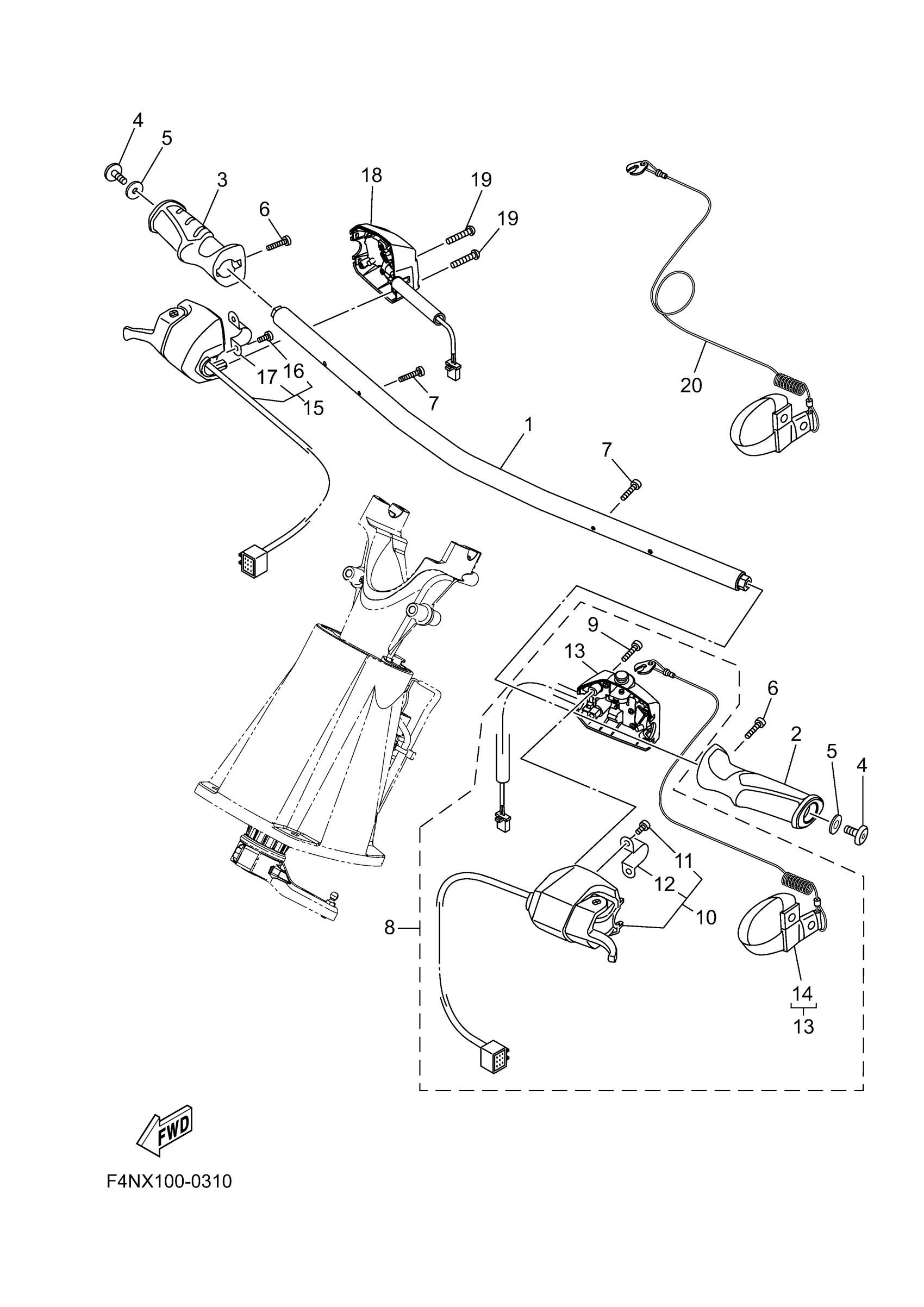

Yamaha VX1050FB (VX) F4NX 2025 STEERING 1 Diagram

#

Description
Price

1

HANDLE

F4N-U1552-00-00

$62.11

2

GRIP,HANDLE

F4P-U155C-00-00

$17.94

3

GRIP, HANDLE

F4P-U155D-00-00

$17.94

4

BOLT, HEXAGON SOCKET HEAD

90110-06383-00

$3.70

5

WASHER, PLATE

90201-068G0-00

$0.93

6

BOLT

F2S-U1516-00-00

$2.80

7

BOLT

91380-04030-00

$0.91

8

SWITCH BOX ASSY

F4P-68310-24-00

$830.29

9

BOLT, THROTTLE

6CS-6725F-00-00

$4.44

10

SHIFT LEVER ASSY

F4P-26411-12-00

$522.71

11

. BOLT, THROTTLE

F4P-6725F-00-00

$6.82

12

. SUPPORT

F4P-61368-00-00

$5.18

13

SWITCH ASSY

F4P-8259E-32-00

$136.35

14

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35

15

THROTTLE LEVER COMP

F4P-14305-12-00

$296.95

16

. BOLT, THROTTLE

F4P-6725F-00-00

$6.82

17

. SUPPORT

F4P-61368-00-00

$5.18

18

SWITCH ASSY

F4P-81860-12-00

$196.95

19

BOLT, THROTTLE

6CS-6725F-00-00

$4.44

20

. LANYARD, STOP SWITCH

EW2-68348-00-00

$25.35
