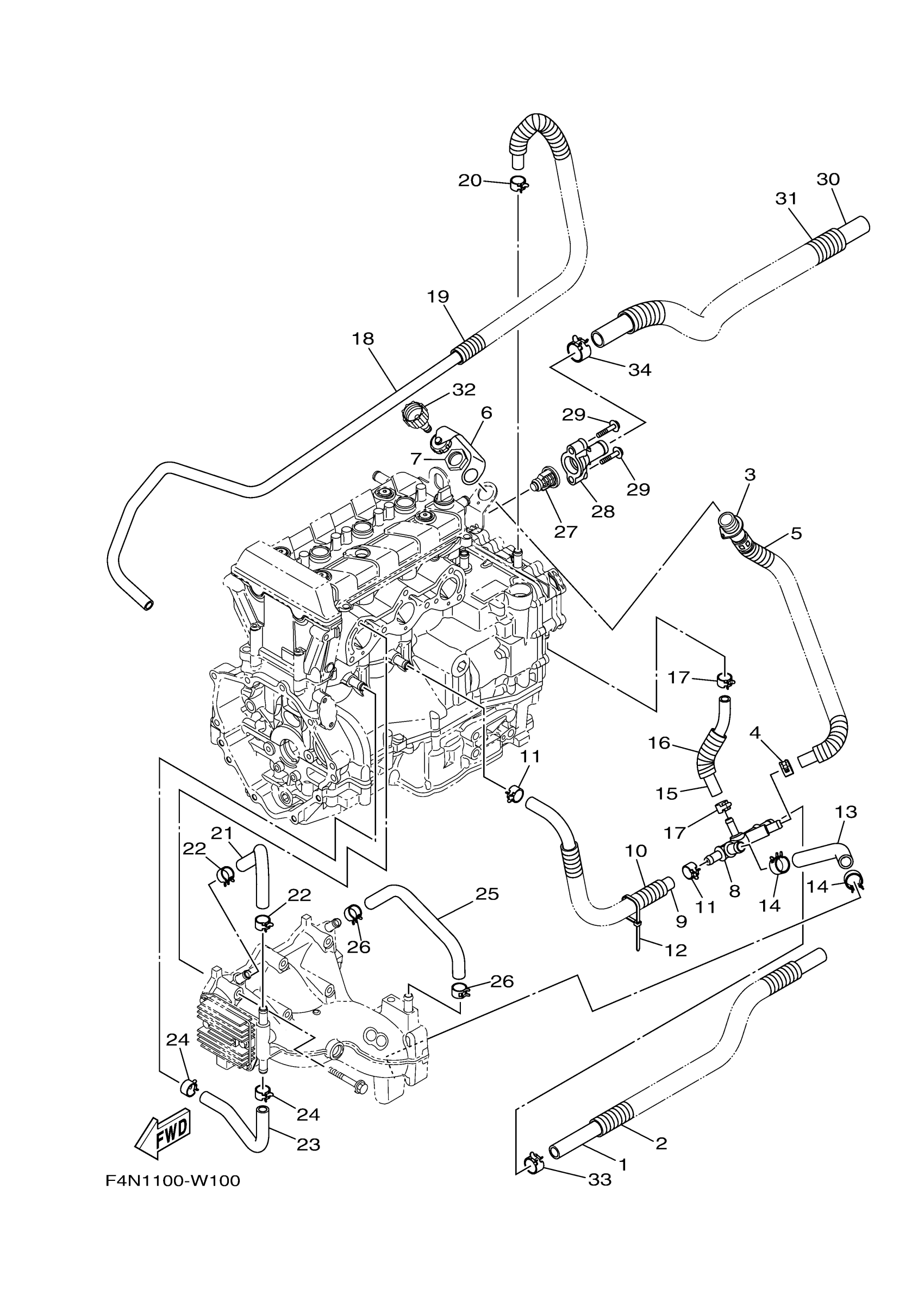

Yamaha VX1050FB (VX) F4NX 2025 EXHAUST 2 Diagram

#

Description
Price

1

HOSE 2

6EY-E243E-00-00

$13.62

2

PIPE, DRAIN

J0B-F125J-00-00

$4.47

3

JOINT ASSY

6EY-12580-00-00

$49.49

4

CLIP

90467-150A5-00

$2.64

5

HOSE (L420)

90446-24M89-00

$9.08

6

CAP,1

6EY-84385-00-00

$10.36

7

NUT

EU0-61652-00-00

$11.48

8

JOINT, HOSE 3

6EY-12584-00-00

$12.86

9

HOSE (L400)

90445-18012-00

$24.98

10

TUBE (L300)

90447-19014-00

$5.14

11

CLIP

90467-160A0-00

$2.95

12

CLAMP(3XW)

90464-35132-00

$6.77

13

HOSE 6

6JS-12589-00-00

$24.98

14

CLIP

90467-200A3-00

$5.92

15

HOSE (L160)

90445-16019-00

$7.27

16

HOSE (L70)

90446-24M44-00

$3.64

17

CLIP

90467-141A3-00

Unavailable

18

HOSE (L1600)

90445-16020-00

$24.23

19

TUBE

6EY-24864-00-00

$10.49

20

CLIP

90467-160A0-00

$2.95

21

HOSE 2

6EY-12577-00-00

$14.38

22

CLIP

90467-160A0-00

$2.95

23

HOSE 4

6S5-12579-00-00

$14.44

24

CLIP

90467-160A0-00

$2.95

25

HOSE (L260)

90445-18022-00

$11.35

26

CLIP

90467-160A0-00

$2.95

27

THERMOSTAT

6D3-12411-00-00

$95.40

28

COVER, THERMOSTAT

6EY-12413-00-00

$15.49

29

BOLT, FLANGE

90105-06035-00

$2.27

30

HOSE 1

6EY-E243A-00-00

$13.62

31

TUBE

F4G-U773D-10-00

$5.61

32

CONDUCTION ASSY (US)

67X-E2590-00-00

$2.08

33

CLIP

90467-200A3-00

$5.92

34

CLIP

90467-240A0-00

$6.82
