2025 Yamaha VX (VX1050FB) Engine Hatch 1 Diagram

← All diagrams

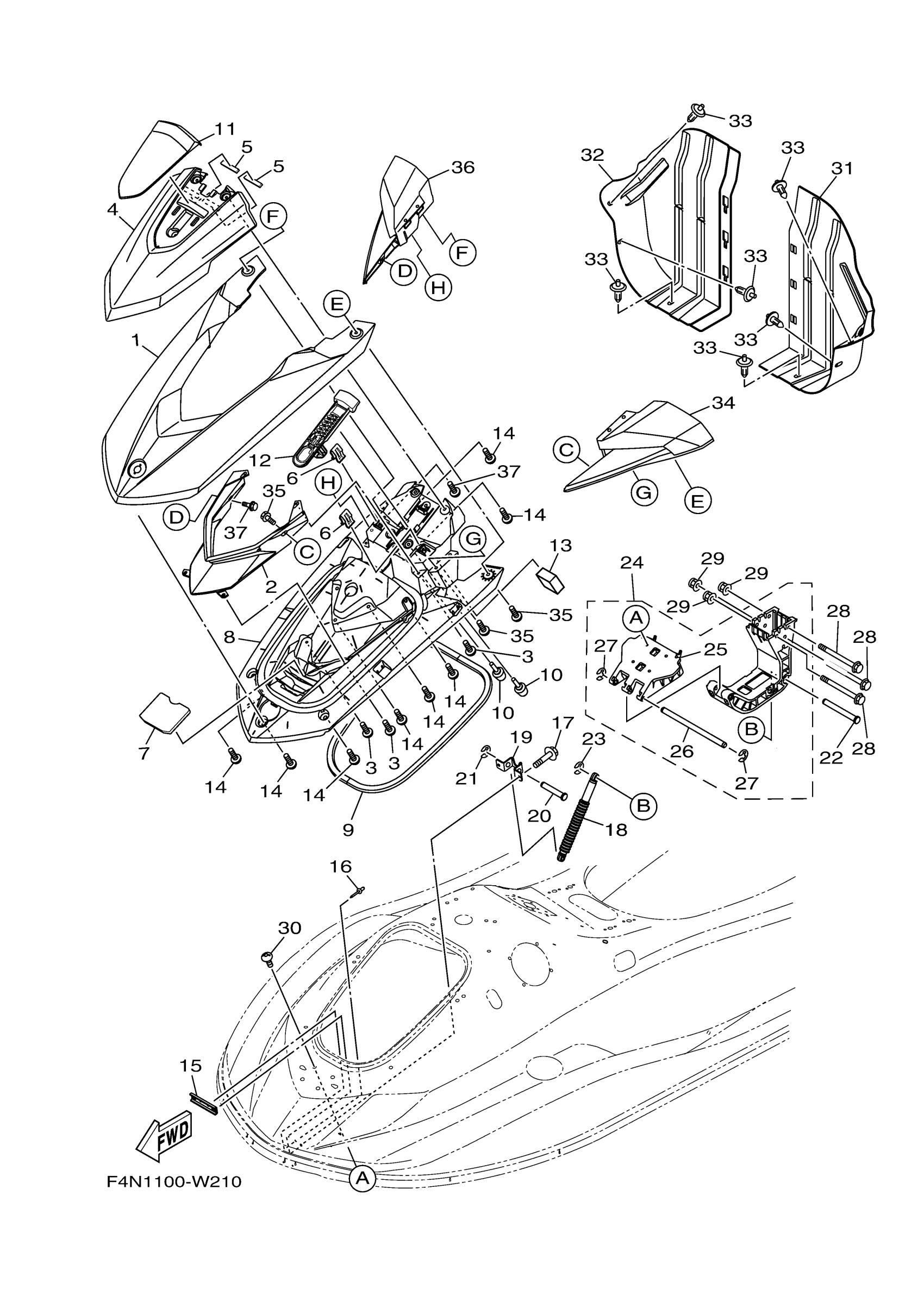

Find the part on the Engine Hatch 1 diagram for your 2025 Yamaha VX (VX1050FB), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2025 Yamaha VX (VX1050FB) Engine Hatch 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LID, ENGINE ROOM

F4N-U517B-00-PB

1
Out of stock

2

ORNAMENT, CENTER

F4N-U517V-00-00

1
Out of stock

3

SCREW

F2S-U13C1-00-00

1
Out of stock

4

VISOR

F4N-U515N-02-P6

1
Out of stock

5

. PACKING 3

F1K-U266B-00-00

1
Out of stock

6

CLIP

F3Y-U153K-00-00

1
Out of stock

7

STOPPER, PACKING

F4P-U7462-01-00

1
Out of stock

8

INNER, ENGINE HATC

F4N-U519G-01-00

1
Out of stock

9

PACKING 1

F4P-U2663-01-00

1
Out of stock

10

. CUSHION, RUBBER

F1W-U3768-01-00

1
Out of stock

11

VISOR, 2

F4N-U515P-10-00

1
Out of stock

12

LOCK, LID

F4N-U517C-00-00

1
Out of stock

13

PACKING

F2C-U1743-00-00

1
Out of stock

14

SCREW

F2S-U13C1-00-00

1
Out of stock

15

PLATE, BASE 2

F2S-U8592-00-00

1
Out of stock

16

RIVET (EU0)

90267-48938-00

1
Out of stock

17

BOLT, WITH WASHER

90119-06820-00

1
Out of stock

18

DAMPER 1

F4P-U515D-01-00

—
Out of stock

19

BRACKET, DAMPER 1

F4P-UFRV1-00-00

1
Out of stock

20

CLEVIS

F4P-U7243-00-00

1
Out of stock

21

. E-RING

F4P-U515C-00-00

1
Out of stock

22

CLEVIS 1

F4P-UF8DM-00-00

1
Out of stock

23

. E-RING

F4P-U515C-00-00

1
Out of stock

24

HINGE ASSY.

F4P-U515A-00-00

1
Out of stock

25

. PLATE, HINGE LID

F4P-U518E-00-00

1
Out of stock

26

. ROD

F4P-U7256-00-00

1
Out of stock

27

. E-RING

F4P-U515C-00-00

1
Out of stock

28

BOLT, STUD 1

F4P-U4445-00-00

1
Out of stock

29

NUT, LOCK

F3Y-U142L-00-00

1
Out of stock

30

BOLT, HEXAGON SOCKET BUTTON

90111-06873-00

1
Out of stock

31

LOCKER,BOW

F4P-U475B-00-00

1
Out of stock

32

PLATE, LOKER BOW

F4P-U475F-00-00

1
Out of stock

33

RIVET

F4P-U1454-00-00

1
Out of stock

34

MIRROR ASSY. 1

F4N-U590D-G0-00

—
Out of stock

35

BOLT, WITH WASHER

90119-06880-00

1
Out of stock

36

MIRROR ASSY. 2

F4N-U590E-G0-00

—
Out of stock

37

BOLT, WITH WASHER

90119-06880-00

1
Out of stock
