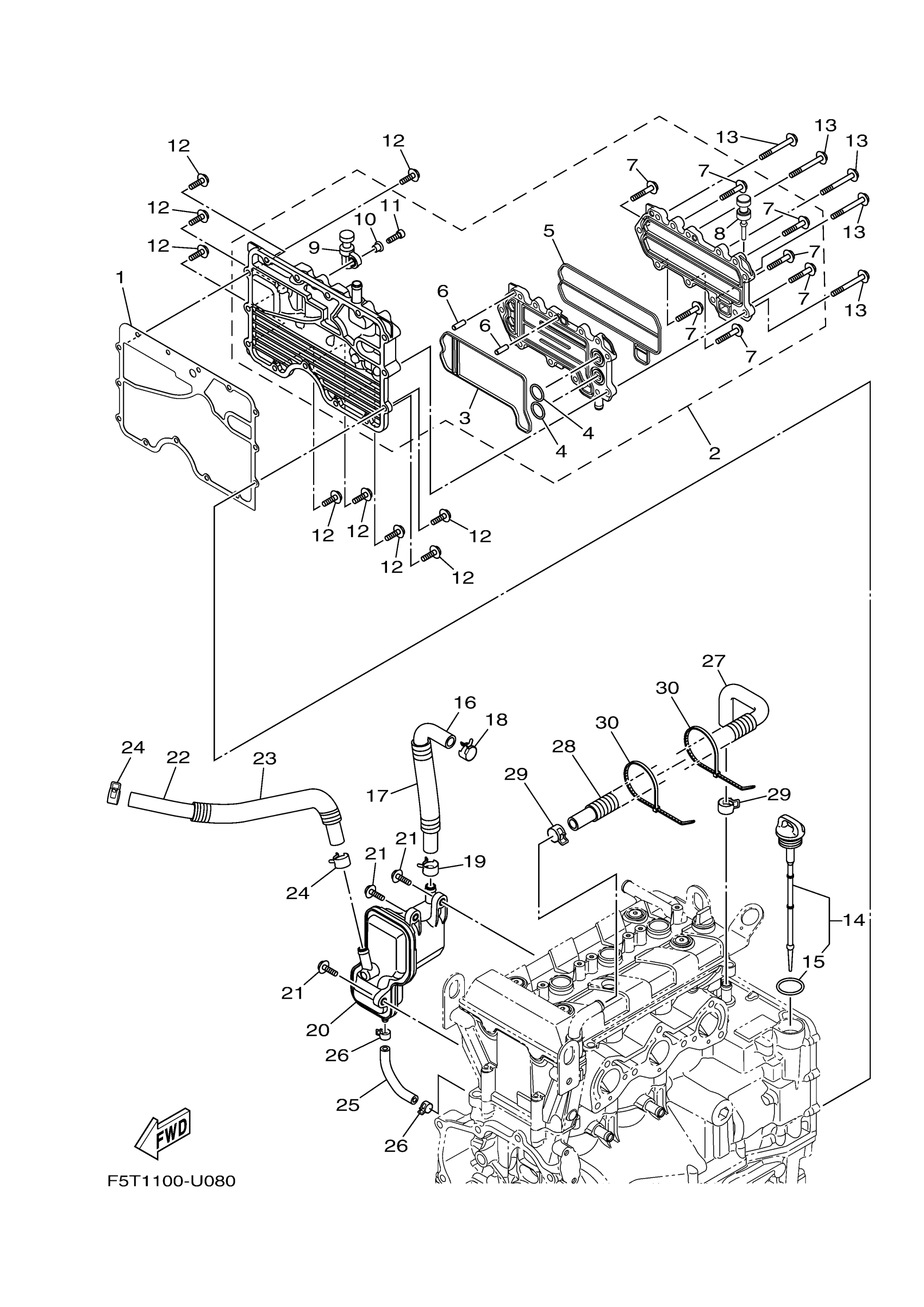

Yamaha VX1050FA (VX) F4NR 2024 OIL COOLER Diagram

#

Description
Price

1

. GASKET

6EY-15453-00-00

Unavailable

2

OIL COOLER ASSY

6EY-13470-02-00

Unavailable

3

GASKET, MANIFOLD

6EY-13556-01-00

Unavailable

4

O-RING (5Y1)

93210-19522-00

$7.49

5

GASKET

6EY-13557-01-00

Unavailable

6

. PIN, DOWEL

93606-19M23-00

Unavailable

7

BOLT, FLANGE

95814-06035-00

Unavailable

8

GROMMET(6R7)

90480-06M46-00

$12.49

9

. GROMMET

6S5-81364-11-00

Unavailable

10

COLLAR

90387-06M05-00

Unavailable

11

. BOLT

91380-06020-00

Unavailable

12

BOLT, FLANGE

95814-06020-00

$8.49

13

BOLT, FLANGE

95814-06055-00

$4.19

14

PLUG, OIL LEVEL

6EY-15362-10-00

Unavailable

15

O-RING (437)

93210-24235-00

$7.49

16

PIPE, BREATHER 1

6EY-11166-10-00

Unavailable

17

HOSE, WITH SPRING

90447-19004-00

Unavailable

18

CLIP

90467-200A3-00

Unavailable

19

CLIP

90467-170A4-00

Unavailable

20

SEPERATOR, OIL

6EY-11164-00-00

Unavailable

21

BOLT (6E0)

90105-06M15-00

Unavailable

22

HOSE (L420)

90445-18020-00

Unavailable

23

HOSE (L350)

90446-24MF4-00

Unavailable

24

CLIP

90467-170A4-00

Unavailable

25

PIPE, BREATHER 4

6EY-11125-00-00

Unavailable

26

CLIP

90467-110A1-00

Unavailable

27

PIPE, BREATHER 3

6EY-11126-10-00

Unavailable

28

TUBE (L300)

90447-19014-00

Unavailable

29

CLIP

90467-170A4-00

Unavailable

30

CLAMP(3XW)

90464-35132-00

Unavailable
